Explosion-Proof Centrifugal Fan with Oil Bath Lubrication and Three Phase AC Motor for Industrial Dust Collection

This article's table of contents introduction:

1. Core Component Breakdown
2. Typical Applications (Industrial Dust Collection)
3. Key Advantages of this Specific Combination
4. Important Selection Considerations

This is a highly specific and technical product description. An Explosion-Proof Centrifugal Fan with Oil Bath Lubrication and a Three-Phase AC Motor is a critical piece of equipment for hazardous industrial environments, particularly in dust collection.

Here is a detailed breakdown of what this specification means, its key features, and typical applications.

Core Component Breakdown

1. Explosion-Proof (Ex) Construction:

   • Purpose: To prevent the fan from igniting flammable gases, vapors, or combustible dusts in the surrounding atmosphere.
   • Mechanism: The fan housing, motor (if integrated), and electrical connections are built to contain any internal explosion without allowing flames or hot gases to escape. They also prevent sparks or excessive surface temperatures.
   • Key Features:
     • Non-Sparking Materials: Impellers are often made of aluminum, monel, or other non-ferrous metals. The housing may have a spark-resistant lining.
     • Sealed Components: Bearings are isolated from the airstream. Electrical conduits and junction boxes are sealed.
     • Temperature Rating (T-Code): The fan's maximum surface temperature is kept below the ignition temperature of the hazardous material.

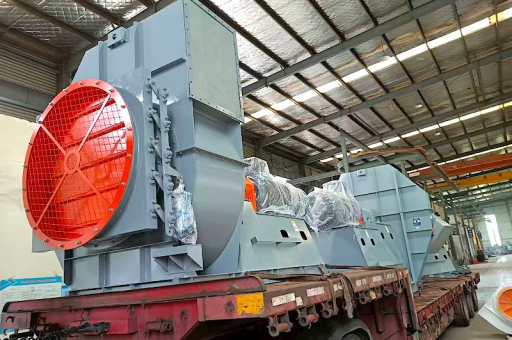

2. Centrifugal Fan (Radial/Blower):

   • Mechanism: Uses a rotating impeller to increase the velocity of air/gas, then converts that velocity into pressure via a spiral-shaped housing.
   • Advantages for Dust Collection:
     • High Static Pressure: Essential for overcoming the resistance of ductwork, filters, and dust collectors.
     • Rugged Construction: Designed to handle particulate-laden air without clogging or damage.
     • Efficiency: Provides consistent airflow against variable system resistance.

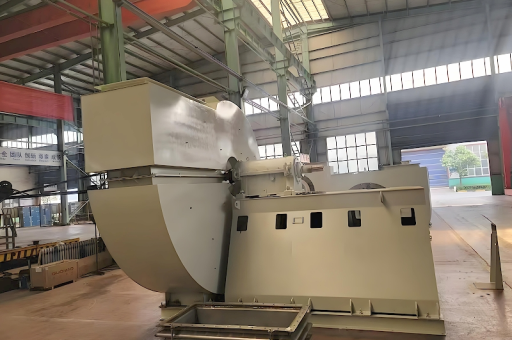

3. Oil Bath Lubrication:

   • Mechanism: The fan's bearings are lubricated by being partially submerged in a reservoir of oil. The rotating bearing picks up the oil, coating the rolling elements and races.
   • Advantages in Harsh Environments:
     • Self-Cleaning: The oil bath washes away contaminants (dust, grit) that enter the bearing housing, preventing premature wear.
     • Excellent Cooling: The oil absorbs and dissipates heat from the bearings more effectively than grease.
     • Minimal Maintenance: Requires less frequent attention than manual grease fittings, making it ideal for 24/7 operations.
   • Caution: Oil level must be monitored to avoid overheating (low oil) or leakage (high oil).

4. Three-Phase AC Motor:

   • Mechanism: An industrial induction motor powered by three alternating current phases.
   • Advantages:
     • High Torque & Power: Provides the starting torque and continuous power needed for dust collection fans.
     • Reliability & Longevity: Fewer wearing parts than single-phase motors.
     • Efficiency: More efficient than single-phase for heavy-duty applications.
     • Speed Control: Easily paired with a Variable Frequency Drive (VFD) for precise airflow control and energy savings.

Typical Applications (Industrial Dust Collection)

This fan is not for general HVAC; it is for explosive or hazardous dusts requiring ATEX or NEC (Class I, Div 1 or 2 / Class II, Div 1 or 2) certification.

• Woodworking: For dust from wood, which can be explosive.
• Chemical & Pharmaceutical: For combustible powders like polyethylene, starch, sulfur, or pharmaceuticals.
• Food Processing: For handling dust from grain, flour, sugar, or spices.
• Metalworking: For collecting explosive metal dusts (e.g., aluminum, magnesium, titanium).
• Coal & Mining: For handling coal dust or methane.
• Plastics & Recycling: For dust from polymers.

Key Advantages of this Specific Combination

Important Selection Considerations

• Certification: Verify the fan is certified for the specific gas/dust group and temperature class of your environment (e.g., ATEX II 2D T4 or NEC Class II, Div 1, Group G).
• Material of Construction: Housing (cast iron, steel, stainless steel) and impeller (aluminum, steel, stainless steel, Monel) must match the corrosive/abrasive nature of the dust.
• Airflow (CFM/m³/h) & Static Pressure (in.wg./kPa): Must match the dust collector's design requirements.
• Motor Voltage: (e.g., 230/460V, 400V) and enclosure type (TEFC - Totally Enclosed Fan Cooled) are standard.
• VFD Compatibility: Specify if a VFD will be used, as some explosion-proof motors have specific requirements for inverter duty.

This fan is a heavy-duty, safety-critical investment designed for the most challenging and hazardous industrial dust control tasks. Its combination of explosion-proof construction, self-lubricating bearings, and robust centrifugal design makes it a top choice for facilities handling combustible dusts.
