Customized Industrial Blower Fans 380v ISO9001

This article's table of contents introduction:

1. Breakdown of Your Request
2. Key Customization Variables (What You Must Define)
3. What to Look for in a Supplier (Beyond ISO9001)
4. Top Chinese Manufacturers (Strong in 380V & OEM)
5. Next Steps to Get a Quote

This is a strong set of specifications for industrial equipment. Here is a breakdown of what these terms mean, what to look for in a supplier, and the key variables you should define to get the right product.

Breakdown of Your Request

1. Customized: This is the most important word. It means you are not buying a standard, off-the-shelf unit. The manufacturer will adapt the design to your specific system requirements (airflow, pressure, temperature, gas type, space constraints).
2. Industrial Blower Fans: This covers a wide range of equipment. The specific type (Centrifugal, Axial, Roots, etc.) depends on your application.
3. 380v: This is a standard industrial three-phase voltage in many parts of the world (Europe, Asia, parts of South America, and the Middle East). It requires a matching 380V/50Hz (or 60Hz, which is slightly different) power supply. Crucial: Confirm if your supply is 50Hz or 60Hz, as this changes the motor's RPM and performance.
4. ISO9001: This is a Quality Management System certification. It means the supplier has certified processes for design, manufacturing, and quality control. This is a minimum requirement for any serious industrial equipment supplier.

Key Customization Variables (What You Must Define)

To get a proper quote and design, you absolutely need to provide these parameters to the manufacturer. Without them, you can't get a "customized" solution.

1. Type of Blower:

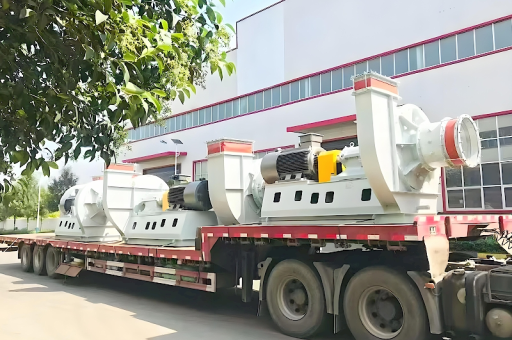

   • Centrifugal: High pressure, medium flow (most common for dust collection, forced draft, pneumatic conveying).
   • Axial: Low pressure, high flow (ventilation, cooling towers, mine fans).
   • Roots (Positive Displacement): Constant volume, high pressure (sewage aeration, pneumatic conveying).
   • Inline / Mixed Flow: Medium pressure/flow (general HVAC in large buildings).

2. Performance Targets:

   • Airflow: Volume of air moved per unit time (m³/hr, CFM). Required.
   • Static Pressure: The resistance the fan must overcome (Pa, mmH₂O, inches WG). Required.
   • Operating Temperature: The temperature of the gas being moved. Standard is ambient, but for ovens, dryers, or exhaust, this is critical (e.g., 200°C, 400°C).
   • Gas Type: Is it clean air, dusty air, corrosive fumes, explosive gases (ATEX/HAZLOC)?

3. Physical & Installation Constraints:

   • Space: Physical dimensions (L x W x H) where the fan must fit.
   • Orientation: Horizontal or vertical discharge? Bottom, top, or side inlet?
   • Mounting: Floor-mounted with a base frame, or wall-mounted? Direct drive (motor on same shaft) or belt-driven (adjustable speed)? Belt drive is more common for customization.

4. Material of Construction:

   • Standard: Steel with epoxy/industrial paint.
   • Corrosive: Stainless Steel (304, 316), Fiberglass Reinforced Plastic (FRP), or special coatings.
   • High-Temp: Carbon steel, or special alloys.
   • Abrasive: Hard-faced impellers, AR (abrasion-resistant) steel liners.

5. Motor & Accessories:

   • Motor: 380V, but any special requirements? (e.g., IE3 energy efficiency, explosion-proof for chemical/paint booths).
   • VFD: Do you need a Variable Frequency Drive (VFD) to control speed?
   • Dampers: Inlet vanes or outlet dampers for airflow control?
   • Sensors: Vibration sensors, temperature sensors (RTD/thermocouples) for monitoring?
   • Silencer / Muffler: Required if noise is a concern.
   • Isolation: Inlet/outlet flexible connectors to reduce vibration transmission.

What to Look for in a Supplier (Beyond ISO9001)

• Engineering Capability: Do they have an experienced engineering team that can analyze your system (ductwork, pressure drops) or just a sales desk? A good supplier should ask for the "Performance Targets" above.
• Testing: Can they test the fan on their test rig to verify performance before shipping?
• Customization Level: Are they a factory that builds from scratch, or a reseller that slightly modifies a standard unit? The former is better for true customization.
• Certifications (for specific applications):
  • ATEX / IECEx: For explosive environments (mines, oil & gas, chemical handling, paint booths).
  • CE Marking: For Europe (electrical and machinery safety).
  • SIL (Safety Integrity Level) / API (e.g., API 673): For very critical processes in Oil & Gas.
• Documentation: They should provide a full datasheet, a certified performance curve, dimensional drawings, and a motor datasheet.

Top Chinese Manufacturers (Strong in 380V & OEM)

If you are looking for a supplier that offers large-scale industrial fans with 380V and ISO9001, these are very well-known in the global market from China:

1. Shandong Huadong Blower Co., Ltd. (Very large, strong in high-quality centrifugal fans for power plants and cement.)
2. Shenyang Blower Works Group (SBW) / Shaanxi Blower (Xian Blower) (Major state-owned enterprises, excellent for large, heavy industrial custom fans.)
3. Zhejiang Shangfeng / Huafeng (Good for medium to large custom fans, HVAC and industrial.)
4. Nanfang Ventilator / Guangdong Shangfeng (Very popular for general industrial and HVAC fans, often good for OEM/ODM.)
5. Zhejiang Fangfeng (Strong in high-efficiency and custom fans for tunnel ventilation, chemical, and power.)

How to find smaller, good suppliers online:

• Alibaba.com (Search "Industrial Blower Fan 380V Custom" - verify ISO9001, check detailed company profile, look for factory inspection videos, ask for client lists).
• Global Sources (Similar to Alibaba but often has more established OEM suppliers).
• Trade Shows: (Hannover Messe, Canton Fair, Chemtech - if you attend).

Next Steps to Get a Quote

1. Do NOT just send "Customized Industrial Blower Fans 380v ISO9001" to 10 suppliers.
2. Create a Technical Specification Sheet (RFQ - Request for Quotation). Write down:
   • Application (e.g., "Dust Collection for Woodworking Shop").
   • Airflow: X m³/hr.
   • Static Pressure: Y Pa.
   • Temperature: Ambient.
   • Material: Steel with epoxy paint.
   • Voltage/Freq: 380V / 50Hz.
   • Target Sound Level (dBA).
   • Any size constraints (e.g., Fan must fit within a 1m x 1m footprint).
3. Send this to 3-5 suppliers (including the ones mentioned above).
4. Evaluate quotes:
   • Is the fan properly sized?
   • Does the performance curve match your target?
   • Are materials, motor brand, and ball bearings specified?
   • What is the delivery time?
   • What warranties are offered (motor, fan assembly)?
   • Is the certification genuine? Ask for a copy of the ISO9001 certificate (check the scope of the cert).

In summary: "Customized Industrial Blower Fans 380v ISO9001" is a valid starting point, but the "Customized" part requires detailed input from you. The quality of your RFQ document will determine the quality and price of the quotes you receive. Do not underestimate the importance of defining Type, Performance, Material, and Accessories.
