This appears to be a specific industrial product search query combining several key technical and regulatory terms. You are likely looking for a centrifugal fan used for forced draft (FD) or induced draft (ID) in a steam boiler system that meets explosion-proof standards and operates at low pressure.
Here is a breakdown of what this specification means and what to look for when sourcing this equipment.
Core Component Definitions
- Steam Boiler: The application. The fan supplies combustion air to the burner (FD fan) or removes flue gas from the system (ID fan).
- Explosion Proof: This is the critical safety term. It means the motor, electrical connections, and often the fan housing are designed to contain any internal explosion (e.g., from flammable gas ingress) without igniting the external atmosphere. This usually refers to ATEX (Europe), IECEx (International), or NEC/CEC Class I, Div 1 or 2 (North America) certification.
- Low Pressure: In fan engineering, low pressure typically refers to static pressure up to 2-3 kPa (~200-300 mmWG) . High pressure would be for pneumatic conveying.
- Centrifugal Fan: The mechanical design. Air enters axially and is discharged radially. For low-pressure boiler applications, Forward Curved (Sirocco) or Backward Inclined blades are common.
Why "Low Pressure" for a Boiler?
You might not need a massive, high-pressure blower. Low-pressure centrifugal fans are suitable for:
- Small to medium steam boilers (packaged boilers).
- Low-pressure boilers (below 15 psi / 1 bar).
- Combustion air supply where the burner requires stable airflow but not extreme pressure to overcome a dirty filter or very long ductwork.
Warning: If your boiler is a high-pressure steam boiler (e.g., >10 bar) with heavy oil firing, you likely need a Medium Pressure or High Pressure fan.
Key Specifications to Verify
When ordering, confirm these specific parameters:
| Parameter | Typical Value for Low-Pressure Boiler FD Fan |
|---|---|
| Static Pressure | 100 – 500 mmWG (1 – 5 kPa) |
| Air Flow | Depending on boiler size (e.g., 1000 – 500,000 m³/h) |
| Explosion Classification | ATEX II 2G Ex d IIB T4 (Gas) or Ex tb IIIC T135°C (Dust) |
| Motor Protection | IP55 minimum, IP66 recommended for washdown |
| Temperature Range | -20°C to +60°C (standard). For flue gas (ID fan), up to 200°C+ |
| Material | Carbon steel (standard) or Stainless Steel (SS304/316) for corrosive flue gas |

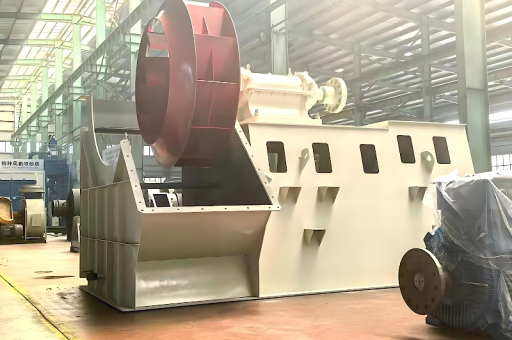

Typical Product Design (What to look for)
- Explosion-Proof Motor: Must have a certified terminal box. The motor must be mounted outside the airstream (direct drive or V-belt drive with a shaft seal).
- Housing: Should be robust, typically welded steel. For ID fans, consider a gas-tight housing to prevent flue gas leakage.
- Impeller:
- Forward Curved: High volume, lower noise, good for clean air (FD fan).
- Backward Inclined: More efficient, non-overloading horsepower curve, better for variable loads.
- Accessories:
- Variable Frequency Drive (VFD): Essential for controlling boiler draft.
- Inlet or Discharge Dampers: For manual volume control.
- Vibration Monitoring: Recommended for boiler safety.
- Flanges: ANSI, DIN, or JIS standards.
Where to Source This
This is a specialty item. You should search for:
- "Boiler FD Fan" + "ATEX" (for Europe) or "Class I Division 2" (for USA).
- "Low Pressure Centrifugal Fan" + "Gas Tight".
- "Explosion Proof Blower" + "For Steam Boiler".
Major Manufacturers (you can use these as search terms):
- Cincinnati Fan (USA): Known for heavy-duty explosion-proof equipment.
- Aerovent (USA): Specializes in boiler and heat transfer fans.
- Ventilatorenfabrik Oelde (Germany): High-quality ATEX fans.
- Loren Cook / Greenheck (USA): Readily available, but often need custom ATEX specs.
- Chongqing Mecan (China): Good for industrial boilers, but ensure proper ATEX/IECEx certification.
Safety & Compliance Warning
DO NOT use a standard centrifugal fan for a steam boiler. The risk of gas or dust accumulation (e.g., coal dust, gas leakage) inside the fan housing can lead to a catastrophic explosion.
You must demand from the supplier:
- Exact ATEX/IECEx Certificate number.
- Temperature class (T4 = 135°C max surface temp).
- Gas group (IIB typical for natural gas/propane; IIC for hydrogen).
Recommendation for your search: If you are writing a procurement specification, use this exact phrasing:
"Low pressure centrifugal fan, direct drive, explosion-proof motor (ATEX II 2G Ex d IIB T4), for forced draft supply to a steam boiler, with a [specific pressure] and [specific flow]."
