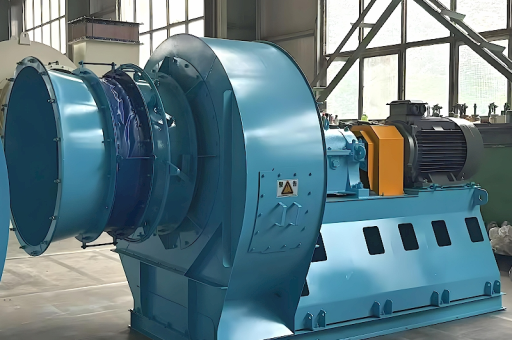

Industrial Kilns Cooling Dust Collector Centrifugal Blower Fan

This article's table of contents introduction:

1. The Application Context
2. Key Design Requirements for the Centrifugal Fan
3. Selection Criteria (The "Shopping List")
4. Common Failure Modes to Prevent
5. Recommendations for Vendors

It appears you are listing key components of an industrial dust collection system, specifically for an application involving a kiln or furnace that handles hot or abrasive dust.

To provide the most accurate information, I will assume you are looking for the specifications, selection criteria, or design considerations for a Centrifugal Blower Fan used in a Cooling Dust Collector for an Industrial Kiln.

Here is a breakdown of what that application entails and what you need to look for in the fan.

The Application Context

• Source: Industrial Kiln (Cement, Lime, Metal Smelting, Ceramics, Incineration).
• Challenge: The exhaust gas is extremely hot (200°C to 400°C+), contains abrasive particulate, and may be corrosive.
• The System: A cooling dust collector (often a baghouse or cartridge collector) cools the gas before filtration, protecting the filter media.
• The Fan: The "Centrifugal Blower Fan" provides the Induced Draft (ID) to pull the gas through the kiln, the cooling system, and the dust collector.

Key Design Requirements for the Centrifugal Fan

Given the application, a standard industrial fan will fail quickly. You need a Heavy-Duty, High-Temperature, Abrasion-Resistant fan.

Impeller Type

• Radial Blade (Paddle Wheel): The best choice for this application. It is the most robust design for handling sticky, abrasive, or heavy dust loads. It is also the easiest to repair (re-blading).
• Backward Inclined (Airfoil or Flat): More energy-efficient, but less tolerant of abrasion and material buildup. Only suitable if the pre-collector (cyclone) removes most of the dust.

Material & Construction

• High-Temperature Steel: The fan housing and impeller must be made from materials that maintain strength at operating temperature (e.g., Corten steel, 316 Stainless Steel, or Inconel for extreme heat).
• Shaft Cooling: An external shaft cooling fan or heat slinger is required to prevent heat from migrating into the bearings.
• Expansion Joint: The housing must have provisions for thermal expansion.

Abrasion Resistance

• Liner Plates: The fan housing (volute cut-off and scroll plate) needs heavy-duty, replaceable abrasion-resistant liners (e.g., 400 Brinell steel or ceramic tiles).
• Wear Strips / Hard Facing: The leading edge of the impeller blades should be hard-faced with tungsten carbide or Stellite.

Motor & Drive

• Motor: Typically a Variable Frequency Drive (VFD) is essential for modulating the airflow to control kiln pressure and temperature.
• Coupling: A flexible coupling is required; avoid belt drives for high-temperature, high-dust applications unless there is a massive speed reduction requirement.
• Bearing Selection: Use Pillow block bearings with a cooling collar (water-cooled or air-cooled) and high-temperature grease. The bearings must be located outside of the hot gas stream.

Accessories

• Inlet Box: A smooth transition from the ductwork to the fan. Often includes a damper for isolation or manual control.
• Drain / Clean-out Door: Essential for removing dust that settles in the housing when the fan is off.
• Silencer: If noise is a concern, an inlet or discharge silencer is necessary.
• Vibration Monitoring: A MUST. Install accelerometers on the bearing housings for real-time monitoring of impeller balance and bearing wear (leading indicator of dust buildup or blade failure).

Selection Criteria (The "Shopping List")

When ordering from a manufacturer, you must provide these parameters:

1. Volume (CFM or m³/hr): The required air volume.
2. Static Pressure (in. w.g. or Pa): The total resistance of the system (kiln + cooling ducts + dust collector + stacks).
3. Gas Temperature (Normal & Max): Provide the operating temperature AND the maximum temperature expected during a kiln upset or bypass.
4. Gas Composition: Is it air, or are their fumes? (CO, CO2, SOx, H2O). Is it corrosive? (chlorine, fluorine from cement kilns).
5. Dust Loading (Grains/ACF or g/Nm³): How much dust is entering the fan? (Crucial for abrasion protection).
6. Altitude: Affects air density and motor power.
7. Location: Indoor or outdoor? What is the ambient temperature around the fan?

Common Failure Modes to Prevent

Recommendations for Vendors

Look for manufacturers specializing in High-Temperature and Heavy-Duty fans:

• New York Blower (USA)
• Howden / Chart Industries (Global)
• Robinson Fans (USA - known for heavy industry)
• Cincinnati Fan (USA)
• Greenheck (USA)
• Eurovent / Ventilatoren (Europe)
• Zibo or Shanghai based fan manufacturers (China - often cost effective but require specific engineering oversight)

Crucial Advice: Do not buy a "standard" industrial fan. A kiln cooling dust collector application will destroy it in months. You must spec a Heavy-Duty Induced Draft (ID) Fan with specific abrasion and thermal protection.

Are you selecting a new fan or troubleshooting a failed one? If you provide the specific failure mode (e.g., vibration, bearing overheating, low CFM), I can give you a targeted diagnosis.
