It sounds like you are looking for a specific type of industrial fan used in hazardous mining environments. This is a highly specialized piece of equipment that combines explosion-proof construction, mine ventilation, dust collection, and centrifugal air movement.
Here is a breakdown of what that product is, its key features, applications, and why each part of the name is critical.
What It Is

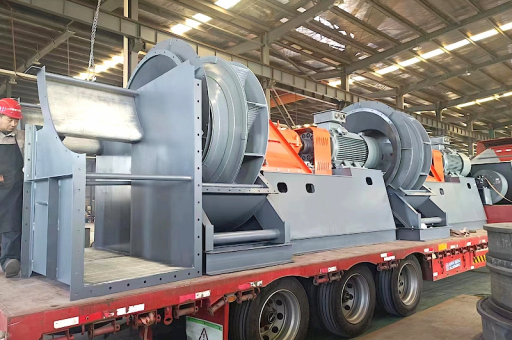

This is a Centrifugal Blower Fan built to ATEX/IECEx standards (or MSHA for the US), designed to be installed in underground mines or above-ground mineral processing plants. It performs two primary functions simultaneously:
- Ventilation: To supply fresh air or remove dangerous gases (methane, CO).
- Dust Collection: To capture airborne particulate (coal dust, silica, ore fines) and move it through a filtration system.
The "Explosionproof" designation means the fan casing and motor are designed to contain any internal explosion (e.g., from methane ignition) without igniting the surrounding atmosphere.
Key Components & Features
-
Explosion-Proof Motor:
- Certification: MSHA (USA), ATEX (Europe), or IECEx (International). Look for Ex d (flameproof enclosure) or Ex e (increased safety).
- Material: Copper windings (no aluminum parts to prevent sparking).
- Conduit Box: Sealed with explosion-proof seals.
-
Non-Sparking Impeller:
- Material: Typically made from aluminum-bronze, stainless steel, or non-sparking plastic/FRP (for corrosive mines).
- Design: Backward-curved or radial blades (radial is best for heavy dust loads).
-
Casing Construction:
- Material: Heavy-gauge steel (often 6mm-10mm) to withstand internal pressure.
- Joint Design: Close-clearance, long-flame-path joints (flamepaths) to prevent flame propagation.
- Earthing: Static conductive path to ground.
-
Sealing & Bearings:
- Sealed, grease-lubricated bearings to prevent dust ingress.
- Shaft seals to prevent gas leakage along the shaft.
Common Models & Manufacturers (Examples)
- Forge Fan / Ventsim: Leading brand for mining ventilation. They offer explosion-proof centrifugal fans.
- FanTech / Twin City Fan: Offer heavy-duty industrial explosion-proof units.
- ABC Industries (American Brattice Cloth): Specialize in mine ventilation systems.
- Cwal / Bauer: European manufacturers of ATEX-certified mining fans.
Typical model naming convention: CBM-Ex-10-35 (Centrifugal Blower Mining - Explosion proof - 10" inlet - 35° C ambient).
Why Choose a Centrifugal Fan Over an Axial Fan for Dust?
A centrifugal (radial) fan is preferred for dust collection for these reasons:
| Feature | Centrifugal (Radial) Fan | Axial Fan (Propeller) |
|---|---|---|
| Pressure | High static pressure (overcomes duct resistance & filter drag) | Low pressure (only suitable for open air movement) |
| Dust Handling | Can handle dust-laden air without clogging | Dust builds up on blades, causing imbalance |
| Efficiency | Good efficiency across a wide operating range | High efficiency only at specific flow/pressure |
Applications in a Mine
- Longwall / Continuous Miner Face: To capture dust at the shearer drum.
- Return Airway: To exhaust contaminated air.
- Crusher / Transfer Points: To control dust at conveyor belts.
- Explosive Gas Zones (0, 1, 2): Must be certified for methane (Group I in ATEX) or hydrogen (Group IIC).
Critical Questions to Ask a Supplier
When ordering or specifying this fan, you must clarify:
- Gas Group: Is it for Coal Mining (Methane - Group I) or non-coal (Group IIA, IIB, IIC)?
- Temperature Class: What is the maximum surface temperature? (T1-T4).
- For methane mines: T1 (450°C) is common.
- Ambient Temperature: Can the motor handle 40°C? 55°C? (Often required for South African or Australian mines).
- Dust Type: Is it conductive dust (coal, carbon black) or non-conductive (silica)?
- Filter Type: Is it a baghouse, cartridge, or wet scrubber (the fan must be downstream or upstream of the filter)?
Safety Warning
Never use a standard industrial fan in a mine.
- Standard fan: Internal spark from bearing failure or blade rub could ignite methane.
- Explosion-proof fan: The spark is contained, and the fan casing won't rupture.
Summary: You need an ATEX/IECEx Group I (methane) certified, non-sparking, heavy-duty centrifugal fan with a high static pressure rating (e.g., 2000-4000 Pa) to overcome the resistance of dust filters and long ducting.
