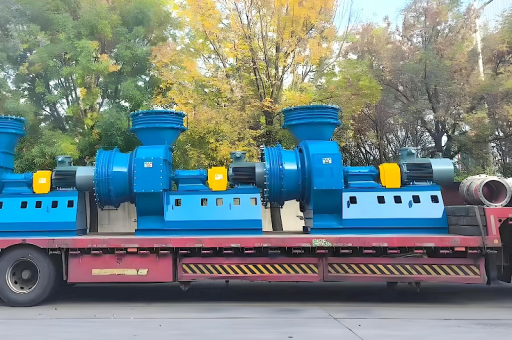

Single Suction Stainless Steel Dust Collector Centrifugal Blower Fan

This article's table of contents introduction:

1. What is it?
2. Why Stainless Steel? (Key Benefits)
3. Key Design Features for Dust Collection
4. Common Applications
5. Important Questions to Consider Before Buying
6. Where to Source / Search Terms
7. Example Basic Specification

It appears you are looking for a specific type of industrial fan: a Single Suction (also known as Single Inlet), Stainless Steel, Dust Collector, Centrifugal Blower.

This combination of terms describes a fan specifically engineered for harsh environments, typically involving moisture, corrosive fumes, or food-grade applications where hygiene and rust resistance are critical.

Here is a detailed breakdown of what this equipment is, its key features, common applications, and what to look for when sourcing one.

What is it?

• Centrifugal Blower: Air is drawn into the center of a rotating wheel (impeller) and expelled at a 90-degree angle by centrifugal force. This design generates high static pressure, which is essential for pushing air through the resistance of filters, ducts, and cyclones in a dust collection system.
• Single Suction: Air enters the fan from only one side of the impeller. This is the standard configuration for most industrial fans. (Double Suction fans have air entering from both sides for higher volume).
• Dust Collector Fan: The impeller and housing are designed to handle air that contains particulate matter (dust, shavings, powder). These fans typically have thicker steel, reinforced blades, and larger clearances to prevent clogging and erosion.
• Stainless Steel (SS): The fan housing, impeller, and often the inlet/outlet cones are made of stainless steel (typically SS304 or SS316/316L).

Why Stainless Steel? (Key Benefits)

1. Corrosion Resistance: The primary reason. These fans are necessary for environments where the air or the dust is acidic, alkaline, or contains corrosive chemicals.
2. Sanitation & Cleanliness: Essential for the food, pharmaceutical, and chemical industries. SS is non-porous, easy to clean, and doesn't rust or chip paint into the product stream.
3. Hygroscopic Material Handling: If collecting dust from materials that absorb moisture (like sugar, salt, or certain powders), a carbon steel fan would rust quickly. SS prevents this.
4. High Temperature Environments: Stainless steel maintains its strength and resists scaling at higher temperatures better than standard carbon steel.

Key Design Features for Dust Collection

• Radial Tip or Paddle Wheel Impeller: For handling dust, the impeller usually has flat, radial blades (often 6-12 blades). This design is self-cleaning, strong, and less likely to clog than backward-curved blades. Note: Backward-inclined blades are more efficient for clean air but clog easier.
• Replaceable Liners: Some heavy-duty models have replaceable wear plates in the housing to extend the fan's life when handling abrasive dust.
• Shaft Seal: A robust seal (e.g., packing gland, labyrinth seal) prevents dust from escaping along the motor shaft.
• Heavy-Duty Bearings: Dust collectors run for long hours and need oversized, sealed bearings. Pillow block bearings mounted on a sturdy base frame are standard.
• Direct Drive (Preferred) or Belt Drive:
  • Direct Drive: Impeller is directly mounted on the motor shaft. Low maintenance, compact, and no belt dust. Best for high RPMs.
  • Belt Drive: Allows precise speed adjustment (RPM) to change airflow and pressure. Better for fine-tuning performance, but requires belt maintenance.

Common Applications

• Food Processing: Collecting dust from sugar, flour, spices, grain, coffee, and cocoa (requires food-grade SS).
• Pharmaceuticals: Handling active pharmaceutical ingredients (APIs) where no contamination or rust can be tolerated.
• Chemical Processing: Fan for corrosive dust from fertilizers, pigments, plastics, and battery manufacturing.
• Woodworking (Specialized): Collecting fine sanding dust in clean rooms or where metal detectors are used (prevents false positives from rust scale).
• Welding & Laser Cutting: Handling fumes that can be acidic when combined with moisture.
• Metal 3D Printing (Additive Manufacturing): Handling fine, explosive metal powders where inert-gas compatibility and non-sparking properties are required.

Important Questions to Consider Before Buying

1. Airflow (CFM / m³/h) and Static Pressure (SP / Pa): What is the required airflow rate to capture the dust at the source, and what is the total resistance of your ductwork, filters, and cyclones?
2. Material of Construction: SS304 (good for general food/pharma, rust resistance) or SS316/316L (essential for highly corrosive chemical fumes, salt environments, or chlorides)?
3. Temperature: What is the maximum air temperature the fan will handle? (Impacts bearing cooling and internal clearances).
4. Spark Resistance: Is the dust explosive? If so, you may need an ATEX-certified or explosion-proof fan with aluminum or non-sparking impeller material within the stainless steel housing.
5. Drive Type: Direct (less maintenance) or Belt (adjustable speed)?

Where to Source / Search Terms

• Search String: "Single suction stainless steel centrifugal blower" "dust collector"
• Top OEMs (Global): New York Blower (NYB), Cincinnati Fan, Chicago Blower, Greenheck, Twin City Fan, Howden
• Top OEMs (Asia / Value): Dinglu Fans (China), Nav bv (Netherlands/India), Korf (Taiwan), San Yang (Taiwan)
• Used / Surplus: Marketplaces like eBay, GovPlanet, or industrial auctions.

Example Basic Specification

In summary: You need a Single Suction, Heavy-Duty Centrifugal Fan with a Stainless Steel Housing and Paddlewheel Impeller. It is a specialist piece of equipment, so ensure you work with a reputable manufacturer who can confirm the Material Certification and Performance Curve for your specific application.

If you have specific CFM, SP, or temperature requirements, please provide them, and I can help refine the specification further.
