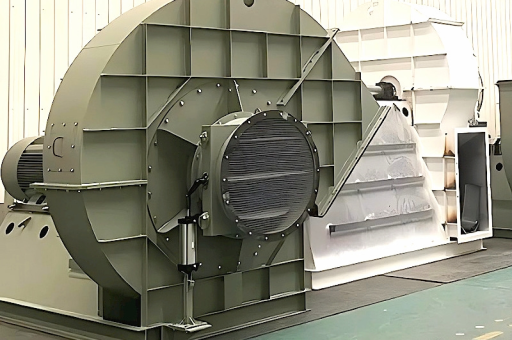

Here is a technical breakdown of a High Volume, Efficient, Steam Backward Curved Boiler Blower, covering its design, applications, and why it is the preferred choice for industrial boiler systems.
What It Is
This is a specialized centrifugal fan designed to move large volumes of air (or flue gas) at moderate pressures with high efficiency. It uses a Backward Curved (BC) or Backward Inclined (BI) impeller (typically airfoil or flat-blade design).
Why "Backward Curved" for Boilers?
In boiler systems, a blower serves two primary functions:
- Forced Draft (FD) Fan: Pushes combustion air into the furnace.
- Induced Draft (ID) Fan: Pulls flue gases out of the boiler (often handling hot, abrasive gas).
The Backward Curved design is superior for high-volume boiler applications for several critical reasons:
| Feature | Benefit for Boiler Blower |
|---|---|
| Non-Overloading Power Curve | The motor power draw peaks at a specific point and then decreases. If the boiler pressure drops (e.g., clean filters), the fan will not overload the motor. This is critical for continuous operation. |
| High Static Efficiency | Typically 80-85% (vs. 65-70% for forward-curved). This significantly reduces electricity consumption over years of 24/7 boiler operation. |
| High Flow Capacity | The blade shape allows for high volumetric flow rates (CFM/m³/hr) without excessive noise or vibration. |
| Pressure Stability | The airfoil or flat-backward blades provide stable pressure across a wide range of air flow, ensuring consistent combustion. |
Key Technical Specifications (Typical)
- Capacity: 10,000 to 500,000+ CFM (cubic feet per minute) / 500 to 800,000 m³/hr.
- Static Pressure: 10" to 50" WC (water column) / 2.5 to 12.5 kPa.
- Temperature: Up to 200°C (400°F) for standard FD; Up to 450°C (850°F) for high-temperature ID versions with cooling shafts/special alloys.
- Impeller: Airfoil (hollow welded blades) or flat plate backward-inclined. Airfoil is for clean air (FD); flat plate is preferred for dirty/flue gas (ID) to resist erosion and material buildup.
- Material: Heavy-gauge steel (typically ASTM A36 or Corten for corrosion), with optional stainless steel (304/316) for corrosive environments.
Applications in a Boiler System
- Coal/Biomass Boilers: The most common. BC blowers handle high dust loads on the ID side and variable air demand on the FD side.
- Oil & Gas Fired Boilers: Used for precise air/fuel ratio control. The steady pressure curve helps maintain low NOx emissions.
- Waste Heat Recovery Boilers: Requires high volume to move low-temperature, large-volume exhaust gases.
- Circulating Fluidized Bed (CFB) Boilers: Extremely high air volume is required to fluidize the bed material. BC fans are the industry standard.
Efficiency & Energy Savings
The term "Efficient" is key:
- Motor Pairing: Typically paired with IE3/IE4 (Premium/Ultra Premium) AC induction motors or High-Speed Direct Drive (HSDD) solutions to eliminate belt losses.
- Variable Frequency Drive (VFD): Boilers rarely run at 100% load. A BC fan paired with a VFD can reduce energy consumption by 30% to 60% compared to throttling with dampers.
- Low Aerodynamic Losses: The backward curve minimizes turbulence at the blade inlet and outlet.
Important Engineering Considerations
- Critical Speed Analysis: For high-volume blowers, the bearing span and shaft stiffness must be designed to avoid resonance at operating speed.
- Wheel Balance: Must be dynamically balanced (typically Grade G6.3 or G2.5) to prevent vibration that can damage boiler refractory.
- Housing Design: Spiral scroll housing is optimized for pressure recovery. The discharge angle is critical for ductwork alignment.
- Shaft Seal: For hot ID fans, a cooling fan on the shaft (or water-cooled bearing housing) is mandatory to prevent heat transfer to bearings.
- Corrosion Resistance: If burning high-sulfur fuel, the blower may require epoxy coatings or stainless steel construction to resist acid dew-point corrosion.
Comparison: BC vs. Other Types for Boilers
| Feature | Backward Curved (BC) | Forward Curved (FC) | Radial (Paddle) |
|---|---|---|---|
| Efficiency | Very High (85%) | Moderate (70%) | Low (60-65%) |
| Power Curve | Non-Overloading | Overloading | Flat (non-overloading) |
| Dust Handling | Fair (Airfoil) / Good (Flat) | Poor | Excellent |
| Application | FD & Clean ID | Small residential/package boilers | Heavy dust / Grain conveying |
| Best For | High volume, continuous duty, energy savings | Low pressure, low cost | Abrasive material |
Selection Checklist (for a Technical Buyer)
- Define Operating Point: Flow (CFM) & Static Pressure (in W.G.).
- Determine Gas Composition: Is it clean air (FD) or hot flue gas with particulates (ID)?
- Temperature: Inlet temperature affects material selection and density (correction factor).
- Drive Method: Direct drive (high speed, low maintenance) or Belt drive (flexible speed).
- Accessories: Inlet box dampers, vibration sensors, silencers, expansion joints.
- Efficiency Target: What is the ROI period for a premium airfoil BC fan vs. a cheaper radial fan?
Conclusion
A High Volume Efficient Steam Backward Curved Boiler Blower is an engineered, high-performance component optimized for the demands of modern boiler houses. Its non-overloading characteristic, high static efficiency, and ability to handle large air volumes make it the industry standard for FD and clean ID applications.
If you are replacing an existing fan or designing a new system, specifying a backward curved airfoil fan with a VFD is the most cost-effective long-term solution for reducing power consumption while maintaining combustion stability.
