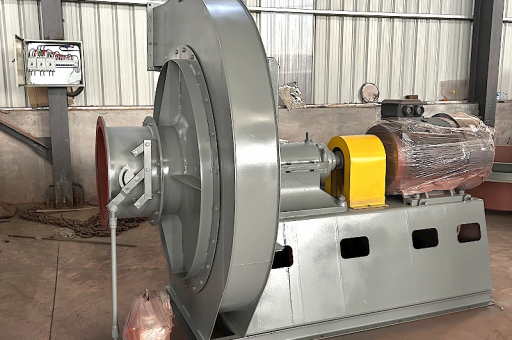

This is a technical specification for a specialized industrial fan used primarily in coal-fired power plants, cement plants, or steel mills. Here is a breakdown of what each term means, the engineering challenges involved, and key selection criteria.
Deconstructing the Specification
- Industrial PA Fan: This stands for Primary Air Fan.
- Function: It provides the primary air needed to dry and transport pulverized coal from the mill to the boiler burner. It operates against high resistance (draft) and is critical for combustion.
- Type: Typically a centrifugal fan (forward curved or radial tipped) or a heavy-duty axial fan.
- In Boiler: Confirms the application: high temperature, high pressure, and dirty environment.
- Abrasion Resistant:
- Why: In a PA Fan, the air is carrying raw coal dust, pyrites, and tramp iron. These particles erode the impeller blades, volute casing, and inlet box at very high velocity.
- How: Achieved via:
- Material: High Chromium wear plates (e.g., Hardox, K390, or ceramic liners).
- Design: Thicker blade profiles (often "backward inclined" or "radial tipped" to minimize particle impingement).
- Protection: Weld-on hard facing, replaceable liners, or ceramic tile coatings.
- 660V / 6KV / 10KV:
- Voltage Ratings: These are the standard motor supply voltages.
- 660V: Low voltage (LV). Used for smaller fans (up to ~200 kW). Common in older plants or smaller boilers.
- 6KV: Medium voltage (MV). Most common for medium-to-large PA fans (200 kW – 2 MW).
- 10KV: High voltage. Used for very large, high-power PA fans (>2 MW) or in plants with a specific 10 kV distribution network.
- Voltage Ratings: These are the standard motor supply voltages.
Key Engineering Challenges for this Fan
| Challenge | Why it matters | Mitigation |
|---|---|---|
| Erosion | High-velocity coal dust erodes blades and casing. | Hard-faced blades, ceramic liners, replaceable wear plates. |
| High Temperature | Air preheated to 300–400°C before entering mill. | Special bearing cooling (water or forced air), high-temperature shaft seals, thermal expansion compensation. |
| Dirt/Clogging | Coal dust builds up on blades causing imbalance. | Self-cleaning blade profiles (radial tip), anti-spark materials. |
| Vibration | Erosion causes imbalance; resonance from large rotating mass. | Stiff rotors, high-precision balancing, vibration monitoring (proximity probes). |
| Motor Starting | High inertia of large fan requires soft-start/ VFD. | Auto-transformer, star-delta (for LV), VFD (for MV) to avoid grid dip. |
Typical Materials & Construction
- Impeller:
- Material: High Chromium alloy cast iron (e.g., ASTM A532, Class III) or Q345R steel with hardfacing.
- Blades: Radial tipped (most common for abrasive PA fans) or backward curved.
- Casing:
- Material: Q235B or Q345R steel.
- Lining: Replaceable ceramic tile (Alumina 92%) or thick chrome carbide overlay (CCO).
- Shaft:
- Material: 45# steel (for LV) or 42CrMo (for MV).
- Bearings:
- Type: Spherical roller bearings (double row).
- Cooling: Water-cooled housings for high temperature.
- Seals:
- Inlet & Outlet: Labyrinth seals or carbon ring seals to prevent dust leakage.
- Motor:
- Type: Asynchronous squirrel cage induction motor.
- Voltage: Matches the fan spec (660V/6kV/10kV).
- Enclosure: IP54 (dust protected) or IP55 (water jet protected).
Performance Parameters (Typical Range)
| Parameter | Value (Typical) |
|---|---|
| Flow Rate | 10,000 – 200,000 m³/h |
| Static Pressure | 5,000 – 15,000 Pa |
| Power | 100 kW – 3,000 kW |
| Speed | 600 – 1,500 RPM (belt drive or direct drive) |
| Temperature | 20°C – 400°C (inlet) |
| Efficiency | 70% – 85% (at best efficiency point) |
Wiring & Control (for the 660V / 6KV / 10KV aspect)
- 660V System:
- Cable: PVC insulated, armored (e.g., YJV32).
- Starter: Soft starter or VFD (recommended to reduce mechanical stress).
- 6kV System:
- Cable: XLPE insulated, shielded (e.g., YJV62, 6/10kV).
- Switchgear: Vacuum circuit breaker (VCB) or SF6.
- Protection: Overcurrent, earth fault, differential (for >2 MW).
- 10kV System:
- Cable: Similar to 6kV but with higher insulation rating (8.7/15kV).
- Switchgear: 12kV rated VCB.
- Transformer: If fan is 10kV, it may be fed directly from the plant's 10kV bus.
Standards & Compliance (Important for Procurement)
- Fan Standard: ISO 1940 (Balance quality), AMCA 210 (Performance testing).
- Material: ASTM, GB/T (China), or DIN.
- Electrical: IEC 60034 (Motors), IEC 60204 (Safety).
- Manufacturing: Often manufactured by companies like Shenyang Blower, Howden, FLSmidth, or Cincinnati Fan (for smaller units).
Summary: What you need to specify clearly:
- Fan Type: PA (Primary Air) Centrifugal.
- Voltage: 660V (LV) / 6kV (MV) / 10kV (MV).
- Abrasion Protection: Yes (specify material: hardfaced steel, ceramic liner, or cast iron).
- Duty: Continuous, high temperature (specify max temp).
- Motor: Induction motor, matched voltage, IP55, F-class insulation.
