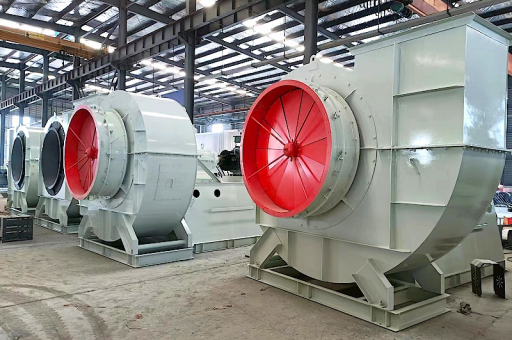

Alloy Steel Industrial Boiler FD Swsi Centrifugal Fan

This article's table of contents introduction:

1. Component Breakdown
2. Performance & Application (Typical Specs)
3. Why Alloy Steel is Critical (The "Industrial" Factor)
4. Typical Components (If you are ordering)
5. Potential Issues to Avoid
6. Summary for a Sourcing Inquiry

Based on the keywords you provided—"Alloy Steel," "Industrial Boiler," "FD Fan" (Forced Draft Fan), and "Swsi" (likely referring to a backward-curved/airfoil blade design, or possibly a model/company abbreviation)—here is a detailed breakdown of what this equipment is and its typical specifications.

It appears you are looking for a High-Temperature, Forced Draft (FD) Centrifugal Fan designed for industrial boiler systems, constructed from Alloy Steel for corrosion/erosion resistance.

Component Breakdown

• Alloy Steel: This is the construction material.
  • Why? Standard carbon steel (MS/CS) cannot withstand the high temperatures (200°C - 400°C+) or the corrosive flue gas environments of a boiler. Alloy Steel (e.g., SA-387, Corten, or Stainless Steel 310/316) is used for the impeller, shaft, and housing to prevent creep, oxidation, and acid dew point corrosion.
• Industrial Boiler FD Fan:
  • FD (Forced Draft) Fan: This fan sits before the boiler combustion chamber. It pushes fresh ambient air through the air preheater and into the burner.
  • Function: To provide the necessary Oxygen for combustion and to "fluidize" the fuel (in FBC boilers) or push air through the burner nozzle.
• Centrifugal Fan: The mechanical design. Air enters the center (axially) and is thrown outward (radially) by the impeller.
• "Swsi": This abbreviation is ambiguous in standard fan nomenclature.
  • Most Likely: SWSI = Single Width, Single Inlet. This is a standard design for a fan where air enters from only one side.
  • Alternative: SWSI could be a specific company model code (e.g., a series name from a Chinese or Indian manufacturer).
  • Note: If you meant "FSI" (Forced Draft, Single Inlet), that is also common.

Performance & Application (Typical Specs)

For a heavy-duty "Alloy Steel" boiler FD fan, you would typically expect:

• Flow Rate: 10,000 m³/hr to 500,000+ m³/hr (depending on boiler size).
• Pressure: 200 mmWc to 1500 mmWc (high pressure for overcoming air heater and grate/burner resistance).
• Temperature: 20°C (Ambient) up to 150°C (Post Air Heater).
• Media: Clean, dry air (or air mixed with FGR - Flue Gas Recirculation).
• Impeller Type: Backward Curved / Backward Inclined (BC/BI) or Airfoil (AF) .
  • Alloy Steel is common for Airfoil blades as they require high strength for high rotational speeds.

Why Alloy Steel is Critical (The "Industrial" Factor)

In a Biomass or Coal fired boiler, the FD fan handles ambient air, but the environment is harsh:

1. High RPM Stress: Large fans run at high speeds (max 1500 - 3000 RPM). Alloy steel impellers prevent fatigue failure.
2. Corrosion (FGR): If the fan recirculates flue gas (FGR) to lower NOx, the alloy steel resists acidic condensation.
3. Erosion: If the air carries dust (in a Fluidized Bed Boiler), alloy steel is harder and lasts longer than mild steel.
4. Weldability: Alloy steel allows for precise, high-strength welding of the complex double-thickness or reinforced impeller blades.

Typical Components (If you are ordering)

If you are sourcing this fan, a quotation should include:

• Housing: Alloy Steel (e.g., Corten or 410 SS).
• Impeller: Alloy Steel (e.g., SA-387 Gr.11 or SS 304/316) with backward curved blades.
• Shaft: Alloy Steel (EN24/4140) ground and polished.
• Bearings: Heavy-duty spherical roller bearings (SKF/FAG) with cooling fins or forced lubrication (for high temp).
• Drive: V-belt driven (for speed variation) or Direct Driven (for high reliability).
• Inlet Box: Vane axial control (Variable Inlet Vanes - VIV) for precise air flow control.
• Stand/Base: Heavy-duty fabricated steel with vibration isolators.

Potential Issues to Avoid

Even with Alloy Steel, you must watch for:

1. Cold End Corrosion: If the fan handles ambient air that mixes with cold flue gas (in a heat exchanger), acid can condense. Ensure the alloy is thick enough or use SS 316L.
2. Vibration: A massive Alloy Steel impeller is heavy. Static and dynamic balancing must be Grade G2.5 or G1.0.
3. Packing Gland: The shaft seal must handle negative or positive pressure. Air seals or carbon rings are preferred over simple packing.

Summary for a Sourcing Inquiry

"I am looking for a Single Width, Single Inlet (SWSI) Centrifugal Fan made of Alloy Steel for use as a Forced Draft (FD) Fan in an industrial steam boiler (likely biomass/coal). The fan must be backward curved, suitable for temperatures up to 250°C, with a flow of [insert m³/hr] and static pressure of [insert mmWc]. The impeller and housing must be alloy steel to prevent corrosion from FGR."

Is there a specific alloy grade (e.g., 304 SS, 316 SS, or SA 387) you require, or a specific fan manufacturer you are comparing?
