This article's table of contents introduction:
- Understanding the Application (Boilers)
- Key Specifications to Require
- Why CE Certification Matters for Boiler Fans
- How to Find the Right Supplier / Model
- Example of a Real-World Specification (for a large industrial boiler)
- Leading Manufacturers Typically Quoted for CE-Certified Fans
- Final Checklist for Your Inquiry
Based on your request, you are looking for industrial-grade centrifugal fans that are specifically designed for high-pressure, large-airflow applications in boiler systems (such as forced draft (FD) fans, induced draft (ID) fans, or primary air (PA) fans) and must have CE certification.
Here is a breakdown of what you need to know, the key specifications to look for, and how to source them.

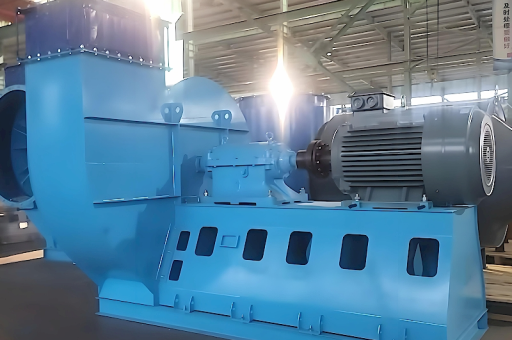

Understanding the Application (Boilers)
For industrial boilers, the fans must overcome significant resistance (from burners, heat exchangers, ductwork, and pollution control equipment). This requires:
- High Static Pressure: Typically 500 mmH₂O (4.9 kPa) to over 3000 mmH₂O (29.4 kPa) for high-pressure boilers.
- Large Airflow (Volume):) Ranging from 10,000 m³/h for small package boilers to over 500,000 m³/h for large utility boilers.
Key Specifications to Require
When sourcing, you must explicitly ask for these parameters to ensure the fan matches "Large Airflow" and "High Pressure" boiler duty:
| Parameter | Typical Range for Industrial Boilers | Why it Matters |
|---|---|---|
| Fan Type | Backward-Curved/Inclined (BC/BI) or Radial (Paddle Wheel) | BI: High efficiency, non-overloading power. Radial: Best for dirty gas (ID fans) or high pressure with some abrasion. |
| Air Volume (Flow) | 50,000 – 800,000 m³/h | Matches the boiler's combustion air or flue gas exhaust requirement. |
| Total Pressure | 2000 – 8000 Pa (200 – 800 mmH₂O) | Must exceed all draft losses (fuel bed, burner, heat exchanger, air heater, ducts). |
| Impeller Diameter | 800 mm – 2500 mm | Larger diameter for higher pressure and volume. |
| Drive Type | Direct drive (D) or Belt drive (B) | Belt drive allows speed adjustment (pressure/flow tuning). Direct drive is for higher reliability at fixed speeds. |
| Motor Power | 55 kW – 500+ kW | Must be sized for the peak power required at operating conditions. |
| Material | Q345R / Corten Steel (for corrosion resistance), Stainless Steel 316L (for acidic exhaust/ID fans) | Boiler flue gas can be hot (150-250°C) and acidic (sulfur). |
| Temperature Range | Ambient (FD fan) up to 250°C (ID fan standard), up to 400°C (high-temp) | ID fans move hot gases; must be rated for continuous operating temperature. |
| CE Certificate | EN ISO 12100, EN 60204-1, 2006/42/EC (Machinery Directive) | Must be explicitly available from manufacturer (tested by an EU notified body or self-declared with technical file). |
Why CE Certification Matters for Boiler Fans
CE marking is mandatory for fans sold in the European Economic Area (EEA). It confirms:
- Safety: The fan meets EU safety standards for guarding, noise, vibration, and electrical safety.
- Machinery Directive: The fan is designed to operate safely under rated pressure and temperature.
- Low Voltage Directive & EMC: For the motor and electrical components.
- ErP Directive (2009/125/EC): For energy efficiency (e.g., IE3 or IE4 motors, high-efficiency impeller design).
Crucial Note: For fans used in ATEX zones (explosive atmospheres, e.g., coal-fired boilers, gas turbines), you will need ATEX certification in addition to CE. A standard CE mark does not cover explosion safety.
How to Find the Right Supplier / Model
You should search for manufacturers who specialize in "industrial boiler fans" or "utility fans" and request a "centrifugal fan with CE certification for forced draft / induced draft duty."
Reliable Fan Configurations for this duty:
- Model Type 9-26 or similar (中国标准) with CE: Often used for high-pressure forced draft. High pressure, but can be less efficient than some European models.
- Model Type 4-73 / 4-82 (SIROCCO / BI type) with CE: Very high efficiency, stable operation, non-overloading power curve. Preferred for low-noise, energy-efficient large commercial/industrial boilers.
- Radial / Paddle Wheel (Type 9000 or similar) with CE: Used for induced draft handling ash-laden, hot, and corrosive gases.
Example of a Real-World Specification (for a large industrial boiler)
Fan Type: Centrifugal, Single Inlet, Backward-Curved (BI)
CE Certified: Yes (Directive 2006/42/EC)
Application: Forced Draft (FD) for 15 MW Biomass Boiler
Air Volume: 80,000 m³/h
Total Pressure: 5500 Pa (approx. 560 mmH₂O)
Air Density: 1.2 kg/m³ at 20°C
Motor: 220 kW, 1480 RPM, IE4, TEFC
Impeller: Steel (Q345R), dynamic balanced
Accessories: Inlet box with guide vanes for volume control, vibration sensors, flexible connection.
Leading Manufacturers Typically Quoted for CE-Certified Fans
- Ziehl-Abegg (Germany) – Top tier, high efficiency, CE standard.
- Soler & Palau (Spain)
- Nicotra Gebhardt (Germany/Italy)
- Greenheck (USA) – Less common in EU but can provide CE for large projects.
- Loren Cook (USA) – Industrial models can be CE-marked.
- Yilida (China) – Many models are now available with CE certification (verify on request).
- Jiangsu Nanfeng / S&Z (China) – Commonly supply CE-marked heavy-duty industrial fans for boilers.
Final Checklist for Your Inquiry
When contacting a supplier, provide this information explicitly:
- Application: Forced Draft (FD) or Induced Draft (ID) for an industrial boiler.
- Gas Type: Air (FD) or Flue Gas (ID) – if ID, specify temperature, dust content, and corrosive elements (SOx, HCl).
- Flow (m³/h or CFM):
- Total Pressure (Pa):
- Operating Temperature (°C):
- Regions of installation: EU (mandatory CE) and if explosion-proof (ATEX) is needed.
- Certification: Explicitly ask for CE certificate (cannot be self-claimed without documentation).
Recommendation: For a "Large Airflow" boiler, do not buy a generic "exhaust fan". Insist on a fan specifically rated for Boiler Duty (FD/ID) with a documented performance curve and CE certification.
