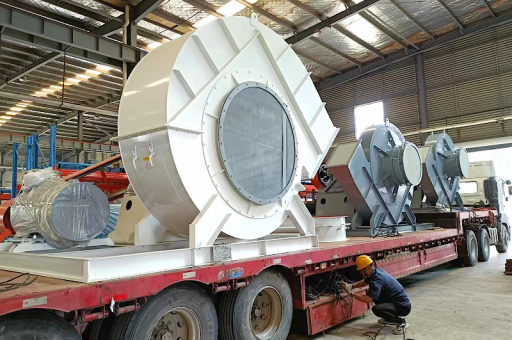

It appears you are describing a large, heavy-duty industrial fan intended for a power plant, with specific material and performance characteristics. Let’s break down the key elements of your query and provide a detailed technical analysis, along with likely applications and specifications.
Material: "16Mn" (Now typically Q345B / S355JR)
- What it is: 16Mn is a Chinese standard low-alloy, high-strength structural steel. Its international equivalents are Q345B (GB/T) or S355JR (EN 10025).
- Why it's used for this fan:
- High Strength: It has a yield strength of ~345 MPa, making it much stronger than standard Q235 carbon steel. This allows the fan blades and housing to be thinner and lighter while still handling immense stress.
- Toughness: It has good low-temperature impact resistance, critical for fans operating outdoors in cold climates.
- Weldability: It is readily weldable for fabrication of large complex structures.
- Cost-Effective: It offers a better strength-to-weight ratio than stainless steel for this application without the cost of high-alloy steels.
Application: "Heavy Duty Heat Dissipation" (Power Plant)
- Context: Power plants (coal, gas, nuclear, or solar thermal) generate massive amounts of waste heat that must be rejected to the environment.

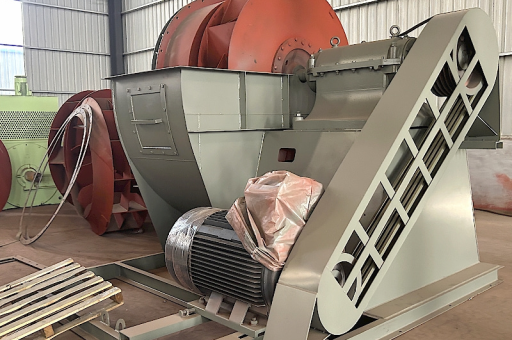

- Fan Role: These are often Forced Draft (FD) fans or Induced Draft (ID) fans for boilers, or Air Cooled Condenser (ACC) fans.
- FD Fans: Push air into the boiler furnace for combustion.
- ID Fans: Pull flue gases (hot, dusty, corrosive) out of the boiler and up the stack.
- ACC Fans: Pull ambient air across finned tubes carrying the steam turbine exhaust to condense it back into water (common in dry cooling systems).

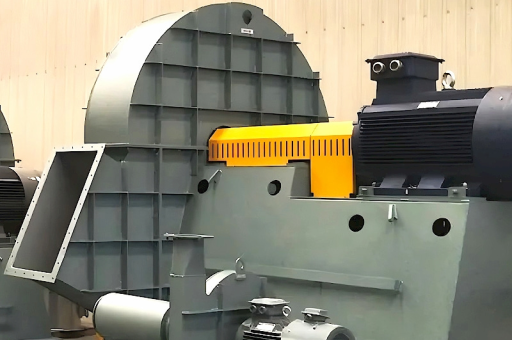

Key Feature: "Large Capacity"
- Size: These fans are enormous. Rotor diameters for power plant ID/FD fans can range from 5 meters (8.2 ft) to over 5 meters (16.4 ft). ACC fans are typically 9-11 meters (30-36 ft) in diameter, with some exceeding 14 meters.
- Flow Rate: Air flow is measured in cubic meters per hour (m³/h) or cubic feet per minute (CFM). A "large capacity" fan for a 600MW power plant might move 500,000 to 1,500,000 m³/h (≈300,000 to 900,000 CFM).
- Pressure: These fans can generate significant static pressure, often several thousand Pascals (Pa), to overcome system resistance (ductwork, filters, heat exchangers).
"Heat Dissipation"
- Thermal Management: The primary function is to remove heat from the power cycle. For ID fans, they handle gas temperatures from 120°C to 180°C (250°F to 350°F), sometimes higher. For ACC fans, the ambient air temperature is the primary concern.
- Cooling: Fans may have cooling fins on the shaft or bearing housings. Bearings are often water-cooled or use high-temperature grease.

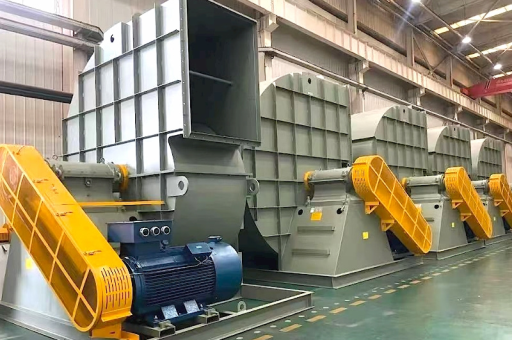

Typical Technical Specifications (Estimate for a 600MW Coal Plant ID Fan)
| Parameter | Specification |
|---|---|
| Material | 16Mn (Q345B) Casing, Impeller, Shaft |
| Type | Centrifugal, Double Inlet, Double Suction |
| Rotor Diameter | ~4,000 mm (157 inches) |
| Flow Rate | ~1,200,000 m³/h (706,000 CFM) |
| Total Pressure | ~6,000 Pa (24 in w.g.) |
| Operating Temp. | 140 °C (284 °F) |
| Power | ~2,500 kW (3,350 HP) Motor |
| Speed | ~740 RPM |
| Bearings | Spherical Roller with water cooling |
Potential Challenges & Considerations
- Erosion: 16Mn can be eroded by fly ash (especially for ID fans). Blade coatings or cladding (e.g., hardfacing, ceramic liners) are common.
- Corrosion: At low loads, flue gases can form sulfuric acid. 16Mn is not acid-resistant. Lining or stainless steel inserts may be needed.
- Fatigue: Large, rotating components undergo high cyclic stress. 16Mn has good fatigue life, but weld quality (UT inspection) and stress relief are critical.
- Resonance: The fan structure must be analyzed for natural frequencies to avoid resonance at operating speeds and VFD frequencies.
Summary for Sourcing or Specification
If you are sourcing this fan, your request should be formalized as:
"Heavy Duty Power Plant ID/FD/ACC Fan, Q345B (16Mn) construction, Large Capacity Centrifugal or Axial design, for 600MW unit, capable of [specify flow rate] and [specify pressure] at [specify temperature]."
Is this for a specific procurement inquiry, a design project, or a troubleshooting problem? Providing more context (e.g., is it for ID, FD, or ACC? What is the power plant type?) will allow for a more precise technical solution.
