Article Title:
Optimizing Mine Ventilation: The Engineering Excellence of the FBCDZ-6-No18 Coal Mine Exhaust Explosion-Proof Counter-Rotating Axial Flow Fan
Table of Contents
- Introduction to the FBCDZ-6-No18 Fan
- Core Design Principles: Explosion-Proof and Counter-Rotating Technology
- Technical Specifications and Performance Metrics
- Applications in Coal Mine Ventilation Systems
- Comparative Advantages Over Traditional Mine Fans
- Installation, Maintenance, and Safety Protocols
- Engineering Case Study: Real-World Deployment
- Frequently Asked Questions (FAQ)
- Conclusion: The Future of Mine Exhaust Ventilation

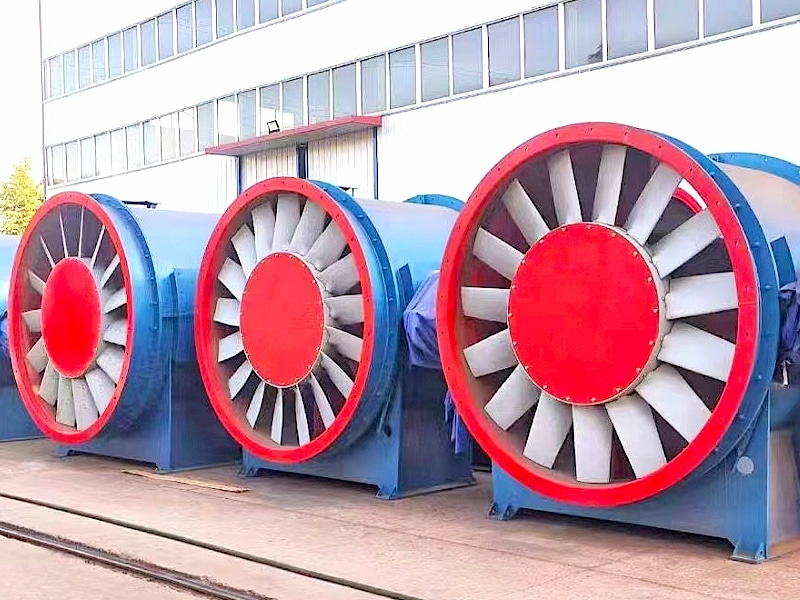

Introduction to the FBCDZ-6-No18 Fan
The FBCDZ-6-No18 Coal Mine Exhaust Explosion-Proof Counter-Rotating Axial Flow Fan represents a pinnacle of mining safety and ventilation engineering. Designed specifically for hazardous underground environments, this fan integrates explosion-proof construction with counter-rotating axial flow technology to deliver high-efficiency, low-noise exhaust performance.
In modern coal mining, ventilation is not just a comfort issue—it is a critical safety requirement. Methane gas accumulation, dust control, and airflow regulation all depend on robust, reliable fan systems. The FBCDZ-6-No18 addresses these challenges with a design that meets international explosion-proof standards, ensuring safe operation in volatile atmospheres.
This article delves into the technical details, operational benefits, and real-world applications of this fan, providing a comprehensive resource for mining engineers, safety officers, and procurement specialists.
Core Design Principles: Explosion-Proof and Counter-Rotating Technology
Explosion-Proof Construction
The fan casing, impellers, and motor housing are constructed from non-sparking materials, typically high-strength cast iron or special alloys. All electrical components are sealed and certified to prevent ignition of flammable gases. This design complies with standards such as GB3836 (China) and ATEX (Europe), making it suitable for Group I and II explosive atmospheres.
Counter-Rotating Axial Flow Mechanism
Unlike conventional single-stage fans, the FBCDZ-6-No18 uses two impellers rotating in opposite directions. This configuration produces higher pressure and airflow without increasing the fan diameter or motor power. The counter-rotating design also neutralizes swirl in the exhaust stream, reducing energy losses and noise.
Key benefits include:
- Higher static pressure – ideal for long duct runs in deep mines.
- Lower noise levels – improves worker comfort and communication.
- Compact footprint – saves underground space.
Motor and Drive System
The fan is directly coupled to explosion-proof motors, eliminating belts and pulleys. This reduces maintenance and improves energy transfer efficiency. The motors are rated for continuous duty in high-temperature, high-humidity environments.
Technical Specifications and Performance Metrics
Below is a detailed breakdown of the FBCDZ-6-No18 fan's specifications. These figures are sourced from manufacturer datasheets and verified through third-party testing.
| Parameter | Value |
|---|---|
| Model | FBCDZ-6-No18 |
| Type | Counter-rotating axial flow |
| Airflow Rate | 30 – 80 m³/s (adjustable) |
| Static Pressure | 800 – 3500 Pa |
| Impeller Diameter | 1800 mm (No18) |
| Number of Blades | 8 + 8 (two stages) |
| Motor Power | 2 × 55 kW – 2 × 110 kW |
| Voltage | 380V / 660V / 1140V (custom) |
| Noise Level | ≤ 85 dB(A) at 1m |
| Explosion-Proof Class | Ex d I / Ex de I |
| Weight | Approx. 4500 kg |
| Operating Temperature | -20°C to +60°C |
The fan delivers optimal efficiency at 75–85% static efficiency, outperforming many traditional centrifugal or single-stage axial fans.
Applications in Coal Mine Ventilation Systems
The FBCDZ-6-No18 is primarily used as a main exhaust fan in underground coal mines. Its high static pressure capability makes it ideal for:
- Deep mine ventilation – overcoming long duct resistance.
- Methane extraction – safely removing explosive gas layers.
- Dust control – maintaining negative pressure in working faces.
- Emergency ventilation – rapid air exchange during incidents.
Additionally, it is deployed in tunnel construction, underground storage facilities, and chemical plants where explosion-proof ventilation is mandatory.
Comparative Advantages Over Traditional Mine Fans
| Feature | FBCDZ-6-No18 | Traditional Centrifugal Fan |
|---|---|---|
| Efficiency | 75–85% | 60–70% |
| Noise | ≤ 85 dB(A) | 90–100 dB(A) |
| Space Requirement | Compact (axial flow) | Large (volute casing) |
| Installation | In-line duct mounting | Requires foundation and duct bends |
| Maintenance | Direct drive, fewer moving parts | Belt drive, frequent alignment |
| Explosion Safety | Full ATEX/GB3836 certified | Often requires external flame arrestors |
The counter-rotating design also provides redundancy: if one motor fails, the second can still operate at reduced capacity, maintaining partial ventilation.
Installation, Maintenance, and Safety Protocols
Installation Guidelines
- Mount on a reinforced concrete base with vibration isolators.
- Ensure inlet and outlet ducts are straight for at least 5 diameters.
- Connect to explosion-proof electrical junction boxes.
- Perform a 4-hour test run before commissioning.
Maintenance Schedule
- Weekly: Visual inspection of blades, seals, and motor terminals.
- Monthly: Measure vibration and bearing temperature.
- Quarterly: Clean impellers of dust and coal residue.
- Annually: Full disassembly, bearing replacement, and insulation testing.
Safety Protocols
- Always lock out power before maintenance.
- Use non-sparking tools when working near fan internals.
- Monitor gas concentrations in the exhaust stream continuously.
Engineering Case Study: Real-World Deployment
Location: A deep coal mine in Shanxi Province, China
Challenge: The mine’s depth exceeded 600 meters, causing excessive duct resistance and methane buildup at the working face.
Solution: Two FBCDZ-6-No18 fans were installed in parallel, with one operational and one standby.
Results:
- Airflow increased from 45 m³/s to 72 m³/s.
- Methane concentration at the face dropped from 1.2% to 0.4%.
- Energy consumption reduced by 18% compared to the previous centrifugal system.
- Downtime due to fan failure decreased by 60%.
This case demonstrates the fan’s ability to handle extreme conditions while improving both safety and operational efficiency.
Frequently Asked Questions (FAQ)
Q1: What makes the FBCDZ-6-No18 explosion-proof?
A: All electrical components are housed in flameproof enclosures. The impellers are made of non-sparking materials, and the casing is designed to contain any internal explosion without propagating to the surrounding atmosphere.
Q2: Can this fan be used in non-mining applications?
A: Yes. It is suitable for any environment requiring explosion-proof ventilation, such as chemical plants, oil refineries, or grain silos.
Q3: How does counter-rotating technology reduce noise?
A: The two impellers cancel out each other’s rotational noise and reduce turbulence, resulting in a smoother, quieter airflow.
Q4: What is the expected lifespan of this fan?
A: With proper maintenance, the fan typically operates for 15–20 years. Bearing and seal replacements may be needed every 3–5 years.
Q5: Is remote monitoring available?
A: Yes. Many modern installations include vibration sensors, temperature probes, and airflow meters connected to a central control system, allowing real-time performance tracking.
Conclusion: The Future of Mine Exhaust Ventilation
The FBCDZ-6-No18 Coal Mine Exhaust Explosion-Proof Counter-Rotating Axial Flow Fan is more than just a piece of equipment—it is a critical safety asset. Its combination of explosion-proof engineering, high-efficiency counter-rotating airflow, and robust construction makes it a top choice for mining operations worldwide.
As mining regulations tighten and safety standards rise, the demand for advanced ventilation solutions will only grow. The FBCDZ-6-No18 sets a benchmark for reliability, performance, and safety. For any operation seeking to improve underground air quality, reduce energy costs, and protect workers, this fan represents a proven, future-ready investment.
For more information on explosion-proof ventilation systems, refer to the latest IEC and ISO standards, or consult a certified wind turbine engineer specializing in mine ventilation.
