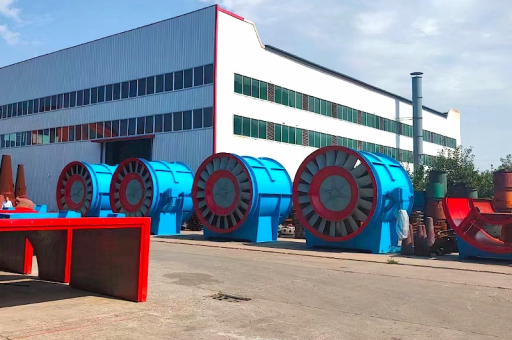

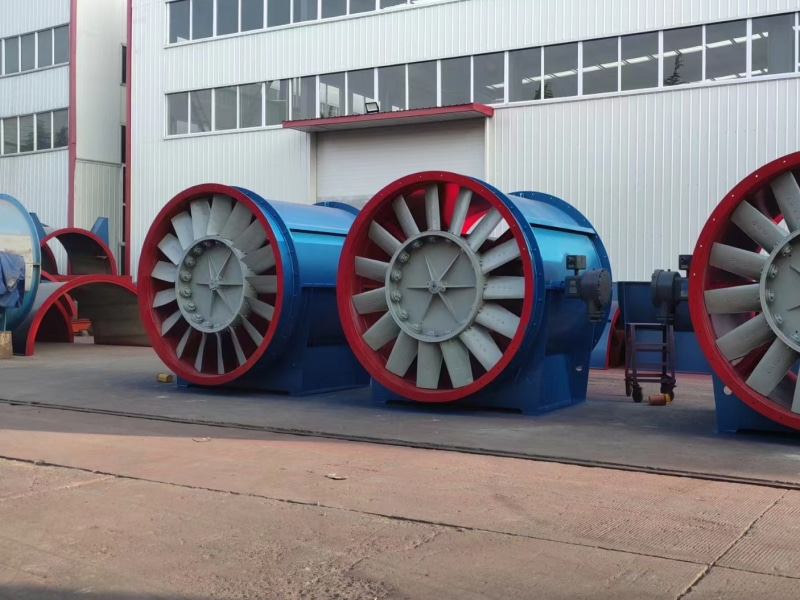

FBCDZ-12-No32 Coal Mine Exhaust Explosion-Proof Counter-Rotating Axial Flow Fan

This article's table of contents introduction:

1. Model Breakdown
2. Key Functional Characteristics
3. Common Applications
4. Summary Table

This is a specific model designation for a heavy-duty industrial fan used in underground mining ventilation. Let's break down the code FBCDZ-12-No32 to understand exactly what this machine is.

Model Breakdown

• F – Fan
• B – Explosion-Proof (Chinese: 防爆, Fángbào). The motor and internal components are designed to not ignite methane gas or coal dust in the mine atmosphere.
• C – Counter-Rotating (Chinese: 对旋, Duì Xuán). This means it has two impellers (rotors) spinning in opposite directions on the same axis. This design generates very high pressure without needing stationary guide vanes.
• D – Motor Direct Drive (Chinese: 电机对旋). Each impeller is directly coupled to its own explosion-proof motor, located inside the fan casing (no belts or long shafts).
• Z – Axial Flow (Chinese: 轴流, Zhóu Liú). Air moves parallel to the fan shaft.
• 12 – Motor Pole Number. Typically, "12" indicates the fan is designed for a specific motor synchronous speed (e.g., 6 pairs of poles = ~980 RPM at 50Hz or ~1180 RPM at 60Hz, depending on the power supply). This is a relatively slow speed for a large fan, which reduces wear and noise.
• No32 – Impeller Diameter. "No32" means the fan wheel diameter is 32 decimeters, or 2 meters (approximately 10.5 feet).

Key Functional Characteristics

1. Exhaust Application: This specific fan is primarily designed for exhaust ventilation. It is placed at the mine's return air shaft to pull stale, dust-laden, and potentially explosive air out of the mine.
2. Explosion-Proof: The motor and all internal components are certified to meet international and Chinese (GB) explosion-proof standards (e.g., Ex d I for mining). This prevents any spark from igniting methane or coal dust.
3. Counter-Rotating Design: The key advantage.
   • High Pressure: With two counter-rotating impellers, it achieves the high static pressure needed to overcome the massive resistance (friction loss) of very long underground mine tunnels.
   • Reversible Airflow: By reversing the rotation direction (usually via a switch on the electrical cabinet), the fan can instantly reverse the airflow direction for emergency ventilation without needing mechanical vanes.
   • High Efficiency: The design is highly efficient, saving significant electrical energy over the lifetime of the fan.
4. Direct Drive: Eliminates the need for pulleys, belts, or long transmission shafts. This reduces maintenance, improves reliability, and increases safety (no belt dust or slip).
5. Large Diameter (3.2m): This is a massive fan. Its size allows it to move a very high volume of air (typically in the range of 200 - 400 m³/s or roughly 420,000 – 850,000 CFM), while operating at a low rotational speed for quiet, stable operation.

Common Applications

• Primary Mine Ventilation: Used as the main exhaust fan for underground coal or metal mines.
• Tunnel Ventilation: For very long road, railway, or subway tunnels.
• Large Industrial Ventilation: In chemical plants, underground storage caverns, or power stations where explosion-proof performance is required.

Summary Table

In short: This is a very large, high-powered, explosion-proof, counter-rotating axial fan specifically designed to safely and efficiently pull stale, explosive air out of an underground coal mine.
