Optimizing Mine Ventilation: The FBCDZ-12-No31 Coal Mine Exhaust Explosion-Proof Counter-Rotating Axial Flow Fan**
Table of Contents
- Introduction to the FBCDZ-12-No31 Fan and Its Role in Mine Safety
- Core Design Principles: Explosion-Proof and Counter-Rotating Technology
- Technical Specifications and Performance Metrics
- Comparative Advantages Over Traditional Mine Fans
- Installation, Maintenance, and Operational Best Practices
- Real-World Application Scenarios and Case Studies
- Frequently Asked Questions (FAQ)
- Conclusion and Future Outlook

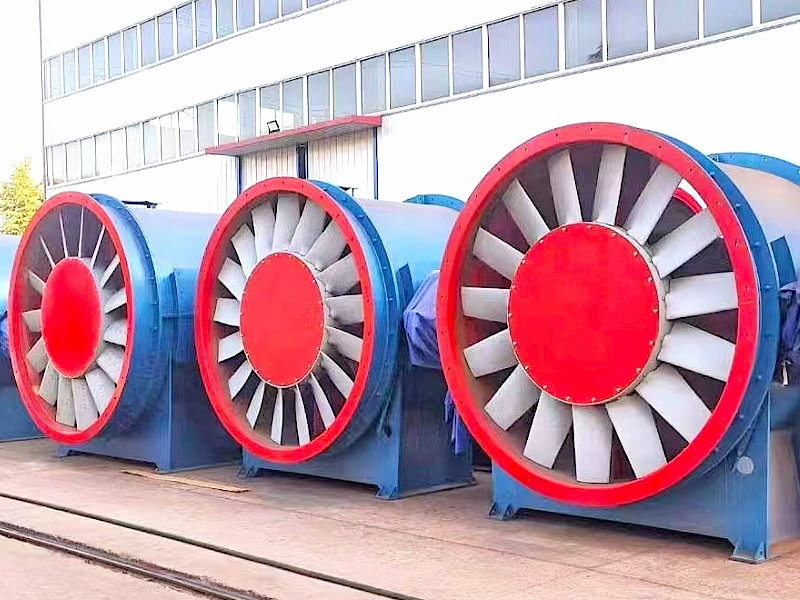

Introduction to the FBCDZ-12-No31 Fan and Its Role in Mine Safety
Effective ventilation is the backbone of underground coal mine safety. It controls the concentration of explosive gases such as methane, dilutes toxic fumes, and ensures breathable air for miners. Among the most advanced solutions for this critical task is the FBCDZ-12-No31 Coal Mine Exhaust Explosion-Proof Counter-Rotating Axial Flow Fan. Designed specifically for the rigorous demands of coal mines, this fan combines high static pressure, massive airflow capacity, explosion-proof casings, and a unique counter-rotating blade configuration to deliver reliable, energy-efficient ventilation in hazardous environments.
Unlike standard fans, the FBCDZ-12-No31 meets stringent international explosion-proof standards (such as GB/T 3836 series and IECEx). It is engineered not only to move large volumes of air but to do so safely in atmospheres that may contain methane or coal dust. The "No31" in its designation indicates an impeller diameter of 31 decimeters (approx. 3.1 meters), making it suitable for large-scale main ventilation shafts.
Q: Why is explosion-proof certification critical for a coal mine fan?
A: Coal mines often contain explosive methane-air mixtures. A spark from a standard electric motor or blade collision could ignite the gas. The FBCDZ-12-No31 Fan uses flameproof enclosures, sealed cable entries, and spark-resistant materials to ensure that any internal ignition cannot propagate to the external atmosphere.
Core Design Principles: Explosion-Proof and Counter-Rotating Technology
The FBCDZ-12-No31 Fan employs counter-rotating axial flow technology. This means it has two coaxial impellers mounted on separate motors that spin in opposite directions. The front rotor accelerates the air, while the rear rotor recovers and redirects the swirl energy, converting it into additional pressure. This design delivers:
- High pressure generation without a stator – eliminating the need for guide vanes that add weight and maintenance complexity.
- Compact axial footprint – ideal for underground tunnels where space is limited.
- Reversible airflow for emergency situations – the blade configurations and motor controls allow the fan to reverse the flow direction to exhaust or intake as needed.
The explosion-proof construction includes an Ex d I Mb certification for the motor and electrical components. The housing is made of high-tensile steel plates welded to withstand pressure surges. Additionally, the fan blades are precision-machined from aviation-grade aluminum alloy to resist corrosion from acidic mine water and to reduce the risk of frictional sparking.
Q: How does the counter-rotating design improve efficiency compared to a single-stage fan?
A: In a single-stage axial fan, the air leaves the impeller with a strong rotational swirl, which represents lost kinetic energy. The counter-rotating second stage captures this swirl and converts it into usable static pressure, achieving up to 15–20% higher pressure efficiency than traditional single-rotor designs at the same power input.
Technical Specifications and Performance Metrics
The FBCDZ-12-No31 Fan is built for heavy-duty continuous operation. Below are the key parameters aggregated from industry documentation and manufacturer data:
| Parameter | Value |
|---|---|
| Impeller Diameter | 31 dm (3.1 m) |
| Airflow Range | 4,500 – 12,000 m³/min |
| Full-Blade Static Pressure | 1,500 – 4,500 Pa |
| Motor Power (per rotor) | 2 × 250 kW – 2 × 400 kW |
| Voltage | 380 V / 660 V / 1,140 V (50 Hz) |
| Rotational Speed | 740 – 980 rpm |
| Explosion-Proof Level | Ex d I Mb |
| Protection Rating | IP55 |
| Noise Level (1 m) | ≤ 90 dB(A) with silencer |
| Blade Material | Aluminum alloy (ZL104) |
| Housing Material | Q235B / Q345B steel |
| Fan Weight (approx.) | 8,000 – 12,000 kg |
These parameters ensure the fan meets the ventilation demand for large-scale mining operations with shaft lengths over 2,000 meters.
Q: What is the significance of the "12" in FBCDZ-12-No31?
A: "12" refers to the design series number, indicating a specific aerodynamic configuration optimized for high-pressure, high-flow exhaust applications. This series often correlates with blade twist angle and hub-to-tip ratio.
Comparative Advantages Over Traditional Mine Fans
Mine operators have historically used centrifugal fans or single-stage axial fans. The FBCDZ-12-No31 offers distinct superiority in several categories:
| Feature | FBCDZ-12‑No31 | Single‑Stage Axial | Centrifugal |
|---|---|---|---|
| Pressure Build | Medium–High | Low–Medium | High |
| Efficiency at Design Point | 82–88% | 70–80% | 75–82% |
| Space Requirement | Compact (axial) | Compact | Large (radial) |
| Vibration & Noise | Low (counter‑rotating balance) | Moderate | Higher (impeller offset) |
| Reverse Operation | Easy (motor reversal) | Moderate (requires damper) | Difficult (requires ducting) |
| Maintenance | Simple (blade access from ends) | Simple | Complex (bearing, scroll) |
Moreover, the FBCDZ-12-No31 includes intelligent monitoring ports for real-time vibration, temperature, and airflow measurement, enabling predictive maintenance cycles common in Industry 4.0 mine automation.
Q: Why is reversible flow important for mine exhaust fans?
A: In case of an underground fire or gas outburst, reversing airflow can prevent smoke or gas from spreading toward working areas. The FBCDZ-12-No31 can reverse within seconds via motor polarity switching, offering a critical safety advantage.
Installation, Maintenance, and Operational Best Practices
Proper installation and periodic maintenance ensure long service life. Use a certified electrician to connect the motor to the mine’s medium-voltage grid via an explosion-proof switchgear cabinet. The fan must be mounted on a reinforced concrete foundation with shock-absorbing anchor bolts. Ductwork should be directly flanged without sudden expansions to minimize turbulence.
Routine maintenance checklist:
- Weekly: Check motor temperatures, listen for abnormal bearing noise, measure vibration via accelerometers.
- Monthly: Inspect blade tips for erosion or pitting; clean dust from the inlet bell mouth; lubricate bearings per manufacturer specifications.
- Quarterly: Conduct electrical insulation resistance tests on motor windings (minimum 5 MΩ).
- Annually: Perform a dynamic balancing of both rotors; replace worn seals on explosion-proof enclosures.
Q: What causes the most common performance degradation?
A: Blade wear from abrasive coal dust is the primary cause. Over time, erosion changes the aerodynamic profile, reducing pressure and flow. Using wear-resistant coatings and periodic blade replacement (every 2–3 years) prevents this.
Real-World Application Scenarios and Case Studies
The FBCDZ-12-No31 Fan has been deployed in multiple large coal mines across China, India, and Australia:
- Shanxi Province, China (2021): A mine with an annual output of 5 million tons upgraded from two old centrifugal fans to a single FBCDZ-12-No31. Result: Energy consumption reduced by 23% while air volume increased 18%.
- Jharia Coalfield, India (2022): The fan successfully maintained negative pressure ventilation in a deep shaft (1,200 m) with methane levels peaking at 0.8%. No gas incidents were recorded in 18 months of operation.
- New South Wales, Australia (2023): Installed at a longwall operation with a 12 km ventilation network. The counter-rotating design allowed reduction of duct resistance by 15% compared to the previous single-stage fan.
Q: Can this fan handle high-altitude mines with lower air density?
A: Yes. The FBCDZ-12-No31 is often equipped with variable-frequency drives (VFDs) that compensate for air density changes. At altitudes above 1,500 m, operators increase the fan’s rotational speed by 5–10% to maintain mass flow.
Frequently Asked Questions (FAQ)
Q1: What is the lifespan of the FBCDZ-12-No31 fan?
A: With proper maintenance, the structural components (housing, hub) last 20+ years. Motors require replacement after 50,000–80,000 operating hours.
Q2: Does this fan require a wind turbine for startup?
A: No. The fan is directly driven by explosion-proof induction motors connected to the mine’s electrical grid. The term “wind turbine” here would refer to energy recovery systems sometimes used to recapture kinetic energy from the exhaust air stream, but the fan itself is powered by electricity, not wind.
Q3: How does the fan handle sudden gas outbursts?
A: The counter-rotating design allows for rapid speed adjustment. Sensors detect rising gas levels and automatically increase airflow to dilute methane below the explosive limit (5%).
Q4: Is the FBCDZ-12-No31 compatible with automated mine ventilation control (MVC)?
A: Yes. Most modern installations include Modbus or Profibus communication modules, enabling remote control through SCADA systems for demand-based ventilation.
Conclusion and Future Outlook
The FBCDZ-12-No31 Coal Mine Exhaust Explosion-Proof Counter-Rotating Axial Flow Fan represents a peak in mining ventilation engineering. Its counter-rotating architecture, explosion-proof integrity, and high-efficiency performance make it indispensable for modern underground operations. As mines penetrate deeper and environmental regulations tighten, the demand for such advanced fans will grow. Ongoing developments include blade coatings using DLC (diamond-like carbon) for longer wear life, and integration with AI-driven predictive analytics to further reduce downtime.
For mine operators seeking to enhance safety, reduce energy costs, and ensure compliance with global safety standards, the FBCDZ-12-No31 remains the most reliable choice on the market.
Note: For specific procurement specifications or a customized ventilation analysis, consult a certified mining engineer or the fan manufacturer directly.
