** The Critical Role of Anti-Explosion Flue Gas Systems in Industrial Safety and Emission Control

Article Content:

Table of Contents

1. Introduction: Understanding Anti-Explosion Flue Gas
2. How Anti-Explosion Flue Gas Systems Work
3. Key Components and Design Principles
4. Common Applications Across Industries
5. Benefits for Safety, Compliance, and Environment
6. Frequently Asked Questions (FAQ)
7. Conclusion: Future Trends and Best Practices

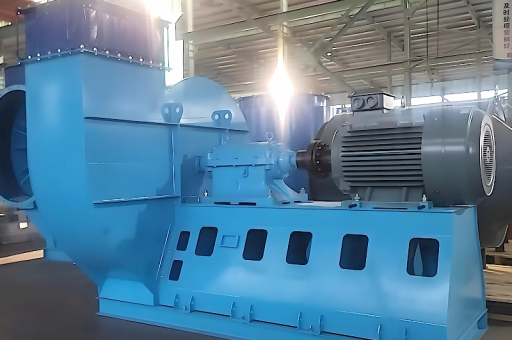

Introduction: Understanding Anti-Explosion Flue Gas

In industrial environments where combustible gases, volatile organic compounds, or fine dust particles are present, the risk of explosion is a constant concern. Flue gas—the exhaust gas generated from combustion processes in boilers, furnaces, incinerators, and thermal oxidizers—can contain unburned fuel, carbon monoxide, hydrogen, or other reactive species. Under certain conditions, these gases can ignite or explode if not properly managed.

An Anti-Explosion Flue Gas system refers to a comprehensive set of engineering controls, monitoring devices, and safety protocols designed to prevent the ignition or propagation of explosions within flue gas ducts, stacks, and associated treatment equipment. These systems are not merely an add-on; they are a fundamental requirement in many industries, including petrochemical refining, pharmaceutical manufacturing, waste-to-energy plants, and metal processing.

By integrating explosion prevention technologies such as flame arresters, explosion vents, isolation valves, and continuous gas analyzers, these systems ensure that flue gas handling remains safe under all operating conditions. The core philosophy is to eliminate the triangle of fire—fuel, oxygen, and ignition source—before an explosion can occur.

How Anti-Explosion Flue Gas Systems Work

The operation of an anti-explosion flue gas system relies on three main strategies: prevention, isolation, and mitigation.

Prevention is achieved by continuously monitoring the composition of flue gas. If the concentration of combustible gases (such as CO, H₂, or CH₄) approaches the lower explosive limit, the system triggers alarms and may automatically adjust combustion parameters or activate dilution air. For example, in a thermal oxidizer used to destroy VOCs, the oxygen level is kept below the limiting oxygen concentration to prevent flammability.

Isolation involves rapidly blocking the propagation of flame or pressure waves. This is accomplished using explosion isolation valves or knife gate valves that close within milliseconds—typically triggered by pressure sensors or flame detectors. These devices prevent a deflagration in one section of the duct from traveling upstream to the main processing unit or downstream to emission stacks.

Mitigation includes passive measures such as explosion vents and rupture disks. If an explosion occurs despite preventive measures, these components relieve pressure in a controlled direction, protecting the structural integrity of the ductwork and nearby personnel. Some advanced systems also incorporate suppressant injection—releasing dry chemical or inert gas (e.g., N₂ or CO₂) upon detection of pressure rise or flame.

A critical element is the control logic. Modern systems use programmable logic controllers with redundant sensors and voting logic to minimize false trips while ensuring rapid response. For instance, if a hot zone is detected by two independent infrared sensors, the isolation valve is triggered within 50 milliseconds.

Key Components and Design Principles

To build a reliable anti-explosion flue gas system, engineers must carefully select and integrate the following components:

• Flame Arresters: Installed inside ducts, these use a matrix of narrow passages (often crimped metal ribbons) to quench the flame by removing heat. They must be sized to handle the maximum expected flow without excessive pressure drop.
• Explosion Isolation Valves: Typically butterfly or slide gate designs with spring-return actuators. They must be certified to standards such as ATEX or IECEx for use in explosive atmospheres.
• Pressure and Flame Detectors: Photodiode-based UV/IR flame detectors respond to specific wavelengths, while pressure transducers monitor sudden spikes. Detector placement must cover all potential ignition zones.
• Explosion Vents: These panels are designed to open at a predetermined pressure (usually 0.1–0.5 bar). They must be directed away from occupied areas and may require blast deflectors.
• Gas Analyzers: Multi-point continuous analyzers measuring O₂, CO, H₂, and total hydrocarbons. They must be fast enough (response time < 2 seconds) to allow corrective action.

Design principles include:

• Redundancy: Critical sensors and actuators should have 2-out-of-3 voting to avoid nuisance shutdowns while ensuring safety.
• Material Selection: Ductwork and components must withstand high temperatures (typically 200–600°C) and corrosion from acidic gases like SO₂ or HCl.
• Location Strategy: Isolation valves should be placed as close to the potential ignition source as possible. Vents should be located in straight duct sections at least 10 diameters from bends.
• Maintenance Access: All components must have service ports for inspection and cleaning, especially flame arresters which can clog with particulate.

Common Applications Across Industries

Anti-explosion flue gas systems are deployed wherever combustible byproducts are generated. Key industries include:

• Petrochemical Refineries: In catalytic cracking units and reformer furnaces, flue gas can contain hydrogen and light hydrocarbons. Explosion isolation between stacks and flares is mandatory under API 521.
• Pharmaceutical Manufacturing: Fluid bed dryers and spray dryers often use hot air from gas-fired heaters. Solvent vapors may enter the flue, making flame arresters essential.
• Waste-to-Energy Plants: Incinerators burning municipal solid waste produce flue gas with CO and trace heavy metals. Explosion vents on electrostatic precipitators prevent damage from puffs.
• Metal Processing: Electric arc furnaces generate carbon monoxide-rich off-gas. Water-cooled ducts with explosion dampers are used to protect baghouse filters.
• Chemical Production: In ammonia and methanol synthesis, purge gas from compressors is sent to flare stacks through anti-explosion systems to prevent flashback.

A real-world case study: a refinery in Texas installed an anti-explosion system on its FCCU flue gas line after a previous incident caused extensive damage. The system uses three independent flame detectors and a pair of isolation valves upstream of the CO boiler. Since installation, zero incidents have been recorded despite fluctuating fuel composition.

Benefits for Safety, Compliance, and Environment

Investing in anti-explosion flue gas systems yields multifaceted returns:

• Personnel Safety: The most critical benefit. By containing explosions within limited zones, systems prevent injuries and fatalities from pressure waves, shrapnel, and fire.
• Regulatory Compliance: Agencies like OSHA (29 CFR 1910.119) and the EPA mandate explosion prevention in processes handling flammable gases. In the EU, the ATEX Directive (2014/34/EU) requires equipment to be certified for use in explosive atmospheres.
• Asset Protection: Explosions can destroy expensive equipment such as heat exchangers, scrubbers, and CEMS (Continuous Emission Monitoring Systems). Replacement costs often exceed $500,000 per incident.
• Operational Reliability: With proper monitoring, false trips are minimized, reducing unscheduled downtime. The system can also provide diagnostics to optimize combustion efficiency.
• Environmental Compliance: By preventing uncontrolled emissions from explosion byproducts (e.g., unburned hydrocarbons), facilities maintain compliance with air permits. Additionally, knowing that the flue gas path is safe allows operators to run at higher throughput.

Frequently Asked Questions (FAQ)

Q1: What is the difference between explosion-proof and anti-explosion flue gas systems? A: "Explosion-proof" refers to equipment designed to contain an internal explosion without igniting the surrounding atmosphere (e.g., electric enclosures). Anti-explosion flue gas systems are process safety systems that actively prevent explosions from occurring or limit their propagation within ducts.

Q2: How often should flame arresters be inspected? A: Typically every 6–12 months, but more frequently if particulate loading is high (e.g., after a shutdown during soot blowing). Inspection includes visual check, pressure drop measurement, and cleaning with compressed air or water.

Q3: Can an anti-explosion system be retrofitted to an existing flue gas line? A: Yes, but it requires careful engineering. Existing ductwork must be analyzed for pressure rating, thermal expansion, and support strength. Retrofit systems often use modular valve assemblies that can be flanged into existing pipe spools.

Q4: Does the system require specific training for operators? A: Absolutely. Operators must understand alarm parameters, manual override procedures, and emergency shutdown sequences. Annual training with simulations is recommended, especially for troubleshooting false alarms without disabling safety functions.

Q5: Are there standards that govern these systems? A: Yes. Key standards include ISO 16852 (Flame Arresters), NFPA 68 (Explosion Venting), NFPA 69 (Explosion Prevention Systems), EN 1127-1 (Explosive Atmospheres), and IEC 60079-14 (Electrical Installations in Hazardous Areas). Always consult these documents during design and procurement.

Q6: How fast must the isolation valve close? A: For adequate protection, closure time should be less than 100 milliseconds for flame propagation up to 10 m/s. For high-velocity ducts (e.g., waste-heat boilers), valves with pneumatic actuators and fast-dump valves can achieve 50 ms closure.

Conclusion: Future Trends and Best Practices

As industrial processes become more complex and regulatory scrutiny intensifies, anti-explosion flue gas systems are transitioning from passive to predictive safety. Emerging trends include:

• Digital Twins: Real-time simulation models that predict explosion risk based on sensor data and process conditions. These can optimize purge cycle timing and valve maintenance scheduling.
• Wireless Sensor Integration: Battery-powered wireless detectors that can be placed in hard-to-reach duct sections, reducing installation cost while maintaining reliability.
• Self-Cleaning Flame Arresters: Using low-frequency vibration or pneumatic back-pulse to remove accumulated dust, extending service intervals.
• Machine Learning for Anomaly Detection: Algorithms trained on historical incident data can identify precursors to explosions (e.g., gradual pressure fluctuations) well before thresholds are reached.

Best practices for end-users include:

• Conducting a comprehensive HAZOP study to identify all potential ignition sources.
• Validating system performance through factory acceptance testing of valves and analyzers.
• Maintaining a spare parts inventory for critical components like flame detector heads and valve actuators.
• Performing cycle tests on isolation valves every month to ensure mechanical integrity.

Ultimately, the goal of an anti-explosion flue gas system is not just to react to an incident but to prevent it from ever happening. By combining robust hardware with intelligent control and continuous training, industries can safely harness the energy of flue gases while protecting people, assets, and the environment.
