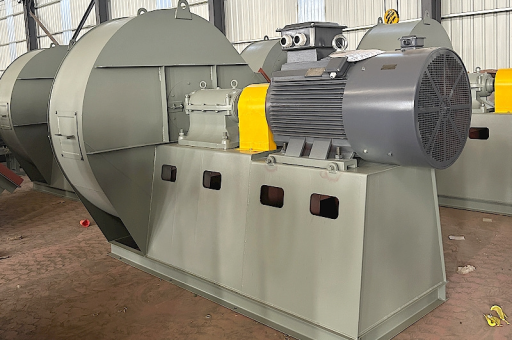

It sounds like you are looking for an industrial ventilation fan specifically designed to handle the drying process of HG785 alloyed steel. This is a high-strength, low-alloy (HSLA) steel, and drying it presents specific challenges.
Here is a breakdown of the engineering requirements and recommendations for selecting the correct fan for this application.
The Core Challenge: HG785 & Drying
- HG785 (High Strength 785 MPa): This steel has high tensile strength (approx. 785 MPa) but is sensitive to hydrogen embrittlement and stress corrosion cracking if exposed to moisture for extended periods. Drying must be complete and quick.
- Drying Objective: The primary goal is to remove residual process water (from washing, quenching, or cooling) or condensation before painting, coating, or storage. The air must be hot, dry, or high-velocity.
- Fan Requirements: You need a fan that can move a large volume of air (CFM) at a specific static pressure (SP) to overcome ductwork, nozzles (if used), or the steel itself.
Critical Fan Selection Criteria for HG785 Drying
Air Temperature (Process Heat)
- Low Temp (Ambient to 150°F / 65°C): Standard industrial fans (panel, wall-mounted, or portable) are fine. This is for simple water blow-off or condensation removal.
- Medium Temp (150-300°F / 65-150°C): Used for accelerated drying. Requires heat slingers on the motor shaft, high-temperature grease, and possibly a belt-driven fan (isolates the motor from the heat).
- High Temp (Above 300°F / 150°C): Used for specialized ovens. Requires a plug fan or direct-drive with the motor completely out of the airstream, or a specially rated motor for high heat.
For HG785: Avoid extremely high temperatures (above 400°F) that could alter the steel's temper or mechanical properties. A maximum of 180-250°F (82-121°C) with strong airflow is often best.
Air Quality & Contamination
- Corrosion: If the water being dried is contaminated (e.g., cutting fluids, salts), the fan must be corrosion-resistant.
- Material: Standard carbon steel fans will rust. For HG785 drying, consider:
- 304 or 316 Stainless Steel (best for longevity in wet, salty environments).
- Epoxy-coated or Galvanized (suitable for clean water only).
- Spark Resistance: HG785 is steel, not flammable. However, if the area has combustible dust or vapor, the fan must be spark-resistant (aluminum/brass construction).
Airflow Performance
- High Velocity: To break the surface tension of water on dense, flat steel surfaces (like plates or coils).
- Air Knife Systems: For high-speed, precise drying of sheets or coils, use regenerative blowers or high-pressure centrifugal fans.
- Volume (CFM): High volume is better for removing moisture from complex shapes or enclosures.
Recommended Fan Types for HG785 Drying
| Application | Fan Type | Why it works for HG785 |
|---|---|---|
| Part/Sheet Blow-off | Centrifugal (Industrial Exhauster) | High static pressure for nozzle/air knife systems. Best for flat sheets or solid parts. |
| Open-Area Drying | Vane-Axial | High volume, low pressure. Good for drying large areas quickly (e.g., drying racks or storage areas). |
| Part Washing/Drying Machine | Plug Fan (Plenum Fan) | Moves hot, humid air. Motor is outside the airstream, protecting it from moisture and heat. |
| Spot Drying (Operator use) | Portable Ventilator (Hazloc rated) | Flexible, high velocity. Use with a heater if needed. |
Example Specification (Hypothetical)
To identify the exact fan, you need: CFM, Static Pressure, Temperature, and Duct Diameter.
Assumption: You are drying a 4ft x 8ft x 1/4" HG785 plate in a wash station.
- Fan Type: Centrifugal, Belt-Drive, Class II Construction
- Material: 304 Stainless Steel (housing & wheel) for wet environment.
- Drive: Belt-Drive (allows for speed adjustment to balance airflow/pressure)
- Motor: 5 HP, 1800 RPM, TEFC (Totally Enclosed Fan Cooled), inverter-ready, likely in a NEMA 4X (watertight) enclosure.
- Temp Rating: 200°F capacity.
- Features: Drain provisions in the housing (to remove water buildup), access door (for cleaning).
Key Safety & Maintenance Notes for HG785
- Avoid Condensation: After drying, ensure the fan system does not blow cold air back onto the hot steel, which could cause condensation and flash rusting.
- Hydrogen Embrittlement: If you are drying after an acid pickling or electroplating process, the drying step must be immediate and thorough at a controlled temperature (typically 375-430°F for 4-24 hours to "bake out" hydrogen). This requires a specialized oven fan with high temperature capability, not a standard ventilation fan.
- Balance: HG785 plates are often large and flat. Ensure the fan does not cause excessive vibration or resonate with the plate.
Final Recommendation
For a robust, general-purpose HG785 drying solution: Look for a Belt-Driven, Inline Centrifugal Fan or a Plug Fan made of 304 Stainless Steel with a TEFC motor. This gives you the corrosion resistance, performance flexibility, and reliability needed for drying high-strength steel without damaging it.
To get a specific model number, please provide:
- Airflow required (CFM)
- Static pressure (in. w.g.)
- Temperature of the drying air
- Type of water being removed (clean, oily, salty)
- Duct size (if ducted)
