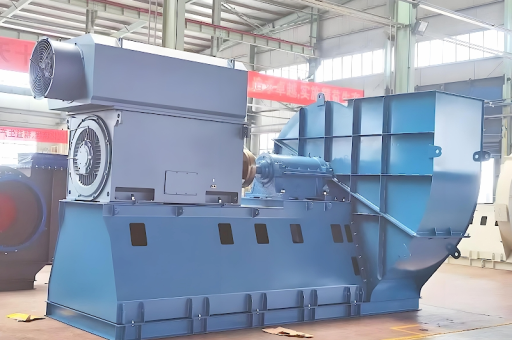

Energy Saving Flue Gas Blower With Coupling Driven Blue Color

This article's table of contents introduction:

1. Product Specification: Energy Saving Flue Gas Blower (Coupling Driven, Blue)
2. Ideal Use Cases:
3. Ordering Information / Options

Here is a detailed specification and description for an Energy Saving Flue Gas Blower with Coupling Driven, Blue Color.

This description is formatted for a technical datasheet, product catalog, or a request for quotation (RFQ).

Product Specification: Energy Saving Flue Gas Blower (Coupling Driven, Blue)

Product Overview

This high-efficiency flue gas blower is specifically engineered for industrial boilers, incinerators, and thermal processing systems. Its primary function is to safely extract and convey hot, corrosive, or particulate-laden exhaust gases from the combustion chamber to the stack or pollution control equipment.

The unit features a direct-drive via flexible coupling (not a belt drive), ensuring precise alignment, higher power transmission efficiency, and reduced maintenance. The signature Blue Color finish indicates a standard corrosion-resistant coating suitable for indoor or sheltered outdoor industrial environments.

Key Features & Benefits

• Energy Saving Design: The impeller is aerodynamically optimized (typically backward-curved or airfoil blades) to achieve peak efficiency (up to 85%+ static efficiency), significantly reducing power consumption and operational costs compared to standard forward-curve or radial blowers.
• Coupling Driven Reliability: A flexible coupling connects the motor shaft directly to the blower shaft. This eliminates belt slippage, reduces energy loss, requires no belt tensioning, and ensures a longer bearing life.
• Robust Construction: Built to withstand high temperatures and mild corrosion.
  • Housing: Heavy-gauge carbon steel (or optional 304/316L Stainless Steel).
  • Impeller: Cast or fabricated steel, dynamically balanced to ISO 1940 G6.3 grade for vibration-free operation.
  • Shaft: High-strength alloy steel, oversized for deflection resistance.
  • Bearings: Heavy-duty, oversized pillow block bearings designed for high temperature operation, with external grease fittings.
• Thermal Management: Equipped with a shaft-mounted heat slinger (cooling fan) between the bearing housing and the blower casing to dissipate conducted heat from the flue gas.
• Corrosion Protection:
  • Standard Finish: Epoxy-based Blue Color paint (RAL 5010 or similar), providing excellent adhesion and resistance to mild industrial fumes and moisture.
  • Optional: High-temperature silicone paint (for +250°C gases) or specialized acid-resistant coatings.
• Wide Operating Range: Available in multiple sizes (inlet diameters 4" to 80") for flows up to 200,000 CFM and static pressures up to 60" w.g.

Technical Specifications

Mechanical Components

1. Motor: High-efficiency IE3/IE4/NEMA Premium electric motor.
2. Coupling: Flexible jaw-type or tire-type coupling (shaft-to-shaft). Includes removable guard.
3. Blower Shaft: 1045 or 4140 steel, fully machined.
4. Bearing System: Two heavy-duty grease-lubricated ball bearings in a cast-iron housing.
5. Heat Slinger: Aluminum or steel cooling disc located on the shaft between bearings and housing.
6. Drain Connection: Threaded plug at the lowest point of the blower volute for condensate removal.

Why Choose This Energy Saving Flue Gas Blower?

• Up to 30% Energy Savings: Reduce your kilowatt-hour consumption immediately.
• Lower Maintenance: No belts to replace; only periodic bearing lubrication and coupling inspection.
• Quieter Operation: The direct-drive system and precision balancing reduce noise and vibration.
• Durable: Engineered for 24/7 continuous operation in demanding thermal environments.

Ideal Use Cases:

• Solid Fuel Boilers (Wood, Coal, Pellet, Biomass)
• Oil & Gas Fired Boilers
• Industrial Ovens & Dryers
• Incineration Systems
• Gasification Plants
• Heat Recovery Systems

Ordering Information / Options

Please specify the following when ordering:

1. Air Flow (CFM/m³/h): _
2. Static Pressure (in.wg/Pa): _
3. Gas Temperature (°F/°C): _
4. Gas Composition: _ (e.g., clean, corrosive, particulate-laden)
5. Motor Voltage & Frequency: _
6. Discharge Orientation: _
7. Material Upgrade: Standard Steel / Stainless Steel / Acid-Resistant Lining

Part Number Format: EFG-CB-[Inlet Dia]-[CFM]-[Temp Code]

Example: EFG-CB-12-5000-H20-400 (12" Inlet, 5000 CFM, 20" w.g., 400°F Gas)
