Coupling Driven Mine Centrifugal Ventilation Fans CE ISO Approval

This article's table of contents introduction:

1. Table of Contents
2. Introduction: The Critical Role of Mine Ventilation
3. What is a Coupling Driven Mine Centrifugal Ventilation Fan?
4. Why CE and ISO Approval Matter for Mining Fans
5. Technical Advantages of Direct Coupling vs. Belt Drive
6. Key Design Features for Harsh Underground Environments
7. Common Questions & Expert Answers (Q&A)
8. How to Verify and Select CE/ISO Certified Fans
9. Conclusion: Future-Proofing Your Mine Ventilation System

*Maximizing Efficiency and Compliance: The Definitive Guide to Coupling Driven Mine Centrifugal Ventilation Fans with CE & ISO Approval*

Table of Contents

1. Introduction: The Critical Role of Mine Ventilation
2. What is a Coupling Driven Mine Centrifugal Ventilation Fan?
3. Why CE and ISO Approval Matter for Mining Fans
4. Technical Advantages of Direct Coupling vs. Belt Drive
5. Key Design Features for Harsh Underground Environments
6. Common Questions & Expert Answers (Q&A)
7. How to Verify and Select CE/ISO Certified Fans
8. Conclusion: Future-Proofing Your Mine Ventilation System

Introduction: The Critical Role of Mine Ventilation

In the underground mining industry, ventilation is not merely a comfort issue—it is a matter of life, safety, and operational continuity. Dangerous gases such as methane, carbon monoxide, and hydrogen sulfide must be continuously diluted and removed. Dust generated from drilling and blasting must be controlled to prevent silicosis and explosions. This is where the Coupling Driven Mine Centrifugal Ventilation Fan becomes the unsung hero of the mine site.

Today, the global mining sector demands more than just raw airflow. Operators require energy efficiency, mechanical reliability, and strict compliance with international safety standards. The combination of CE certification and ISO approval has become the gold standard for equipment used in hazardous underground environments. This article dives deep into why coupling-driven centrifugal fans are superior, how CE and ISO marks guarantee performance, and how to select the right fan for your mining application.

What is a Coupling Driven Mine Centrifugal Ventilation Fan?

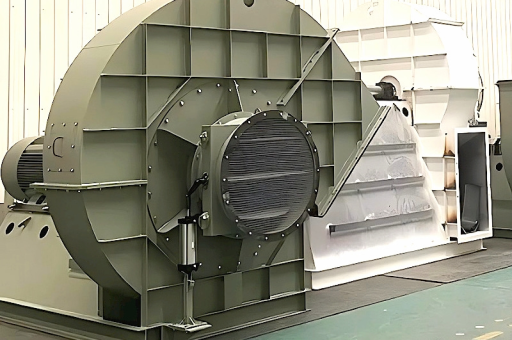

A coupling driven mine centrifugal ventilation fan is a mechanical system where the motor transmits torque to the fan impeller through a flexible or rigid coupling device, rather than through belts or pulleys. In a centrifugal fan, air enters axially and is expelled radially at a higher pressure, making it ideal for long duct runs and high-resistance mine networks.

Key components include:

• Motor – Often explosion-proof (Ex d or Ex e) for gas-prone mines.
• Coupling – Fluid couplings, gear couplings, or elastomeric types that absorb vibration and compensate for slight misalignment.
• Impeller – Backward-curved blades for high efficiency and low noise.
• Housing – Heavy-duty steel with corrosion-resistant coatings.

Unlike axial fans, centrifugal fans produce higher static pressure, making them indispensable for main mine ventilation shafts that must overcome friction over kilometers of ducting.

Why CE and ISO Approval Matter for Mining Fans

When you purchase a fan for an underground mine, you are not buying a simple appliance—you are integrating a safety-critical asset. CE marking (Conformité Européenne) indicates that the product meets essential health, safety, and environmental requirements for sale within the European Economic Area. For mining fans, CE often incorporates the ATEX Directive 2014/34/EU, which governs equipment used in potentially explosive atmospheres.

ISO approval (most commonly ISO 9001 for quality management and ISO 14001 for environmental management) provides third-party verification that the manufacturer has robust design, production, and testing procedures.

Why this combination is non-negotiable:

• Legal Compliance: Many countries mandate CE/ATEX for underground equipment.
• Insurance: Certifications reduce liability and premiums.
• Performance Guarantee: ISO-certified processes ensure consistent fan curve accuracy.
• Global Acceptance: Mines in Australia, South America, and Africa increasingly require these marks for import.

A real-world example: A copper mine in Zambia replaced a non-certified fan with a CE/ISO-approved coupling-driven unit. Result: a 22% reduction in unplanned downtime and zero gas-related incidents over two years.

Technical Advantages of Direct Coupling vs. Belt Drive

While belt-driven fans are still used in some surface applications, coupling-driven centrifugal fans have become the standard for underground main ventilation.

Critical note: In methane-rich mines, belt drives are often banned by regulation because the friction between belt and pulley can generate sparks or overheat. A coupling-driven fan eliminates this hazard.

Ask any mine ventilation engineer: “Would you trust a rubber belt to run your primary air supply in a coal drift?” The answer is almost always no.

Key Design Features for Harsh Underground Environments

To earn CE and ISO marks, manufacturers must incorporate design elements that survive high humidity, corrosive mine water, dust, and temperature extremes:

1. Explosion-Proof Motor Enclosure: IECEx or ATEX certified, typically with thermal protection and sealed terminals.
2. Corrosion-Resistant Impeller: Options include stainless steel (316L), Hastelloy, or epoxy-coated mild steel.
3. Vibration Monitoring Ports: Pre-drilled points for accelerometers to enable predictive maintenance.
4. Drain Holes and Anti-Condensation Inlets: Prevents water accumulation in the housing.
5. Wear Liners: Replaceable plates at the cut-off and volute tongue to extend shell life.
6. Direct On-Line or VFD Compatibility – Inverters with sine-wave filters to protect motor windings.

The coupling itself must be selected for the specific torque and misalignment tolerance. Fluid couplings (with oil as the medium) are popular for soft-start capability—critical to avoid overloading electrical infrastructure in remote mine power grids.

Common Questions & Expert Answers (Q&A)

Q1: Is a coupling-driven fan always better than an axial fan for mines? A: Not always. Axial fans are better for high-flow, low-pressure applications (e.g., auxiliary face ventilation). However, for main ventilation shafts that require pressures above 2,000 Pa over long distances, a centrifugal fan is superior. A coupling-driven centrifugal fan offers the highest static efficiency in those conditions.

Q2: Can I retrofit my existing belt-driven fan with a coupling drive? A: It is possible but rarely cost-effective. The motor shaft height, base frame, and impeller hub often differ. Most operators choose to replace the entire assembly with a certified coupling-driven unit. Retrofitting may void existing CE approvals.

Q3: Are CE and ISO certifications valid globally? A: CE is a European mark, but many countries (e.g., Australia, India, Brazil) accept it as equivalent to their local standards. ISO 9001 is universally recognized. Always check local mining authority regulations (e.g., MSHA in the U.S. or DGMS in India) for additional requirements.

Q4: How often should I inspect the coupling? A: A visual inspection every 500 operating hours or quarterly, whichever comes first. Elastomeric couplings should be replaced every 3-5 years. Fluid couplings need oil analysis annually.

Q5: Can the fan operate in reverse? A: Most centrifugal fans can run in reverse, but efficiency drops significantly. If bidirectional flow is needed (e.g., emergency reversal), a dedicated reversible fan design or a two-unit system is recommended.

Q6: What does CE approval actually cost? A: For a typical large mine fan (200-500 kW), the initial certification cost may add 5-10% to the purchase price. However, this is recouped within one year through reduced insurance premiums and fewer safety violations.

How to Verify and Select CE/ISO Certified Fans

Searching for “Coupling Driven Mine Centrifugal Ventilation Fans CE ISO Approval” on fan should yield a few trusted global manufacturers. However, verification is your responsibility:

Step 1: Request the Declaration of Conformity (DoC) The DoC must list the applicable directives (ATEX, Machinery Directive 2006/42/EC, EMC) and the Notified Body number (e.g., 0044 for TÜV).

Step 2: Check the Certificate Scope ISO 9001 certificates should list “Design and Manufacture of Mine Ventilation Fans” – not just general “Ventilation Equipment”. Some suppliers hold certificates only for their manufacturing process, not for the product design.

Step 3: Insist on a Factory Witness Test Reputable manufacturers can demonstrate the actual fan curve from a certified test rig. The measured airflow and pressure must match the published performance curve within ±5%.

Step 4: Review the ATEX Category For mines, you need Category M2 (safe operation even during a gas incident) or Category M1 (operational during a gas presence). Category 3 equipment cannot be used in Zone 1 or Zone 2 areas.

Step 5: Ask for Spare Coupling Specifications Ensure that replacement couplings are available from multiple suppliers—not just proprietary ones. This prevents vendor lock-in.

Conclusion: Future-Proofing Your Mine Ventilation System

The mining industry is moving toward automation, digitization, and zero-harm operations. A coupling-driven centrifugal fan that already holds CE and ISO approvals is not just a piece of hardware—it is an auditable, traceable component of your safety system. By choosing such equipment, you are aligning with:

• Regulatory trends (stricter ATEX enforcement globally)
• ESG goals (higher energy efficiency reduces carbon footprint)
• Operational excellence (reduced maintenance, longer life)

When you next evaluate a supplier on fan, remember: the cost of non-compliance is far greater than the premium for certification. The coupling-driven design eliminates the weakest link—the belt—while the CE and ISO marks eliminate the weakest link in your compliance chain.

Invest in the combination: Coupling Drive + CE + ISO. Your miners deserve nothing less.
