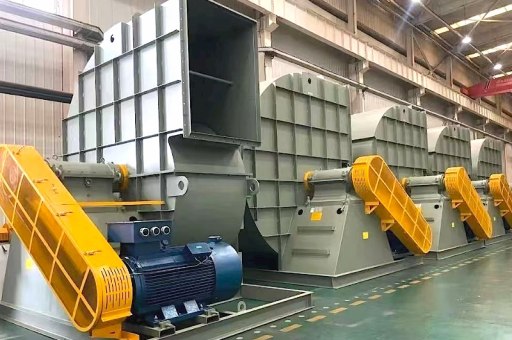

Cement Oven Wall Cooling Centrifugal Exhaust Fan Blower Wear Resistant

This article's table of contents introduction:

1. Key Design Features for Wear Resistance & High Temp
2. Application Specifics (Cement Kiln Wall Cooling)
3. What to look for in a Manufacturer / Supplier
4. Example of a suitable product spec:
5. Recommended Vendors (Global examples)

It sounds like you are looking for a high-temperature, abrasion-resistant centrifugal fan specifically designed for cooling cement kiln (oven) walls.

In the cement industry, these fans are critical for pulling hot gases through the clinker cooler to rapidly quench the clinker and recover heat. The environment is extremely harsh due to high temperatures (200°C to 400°C+) and highly abrasive dust (clinker particles, silica).

Here is a detailed breakdown of what you need to look for in a Cement Oven Wall Cooling Centrifugal Exhaust Fan Blower (Wear Resistant) .

Key Design Features for Wear Resistance & High Temp

Material Selection (The most critical factor)

• Impeller: Must be made of High Tensile Steel (e.g., Corten/Weathering Steel) or Wear-Resistant Steel (e.g., Hardox, NM400/NM500) . For extreme abrasion, the blades are often lined with ceramic tiles or hardfacing welding (Stellite/Carbide overlay) .
• Casing: Usually Q235B Carbon Steel but with replaceable wear liners (typically 10-16mm thick) inside the scroll. These liners act as sacrificial layers.
• Shaft: Must be alloy steel (e.g., 40Cr or 42CrMo) with heat treatment to prevent warping at high temperatures.

Blade Design (Anti-Wear Geometry)

• Backward Curved / Backward Inclined (BC/BI) Blades: Preferred over forward curved blades. They are less prone to dust buildup and experience lower particle impact velocity.
• Thickened Leading Edges: The leading edge of the blades (where particles hit first) must be severely thickened or protected with a ceramic strip.
• Wear Plates: Weld-on wear plates on the blade surfaces facing the flow.

Cooling System (Crucial for longevity)

• Shaft Cooling: A fan-driven cooling disc or a water-cooled bearing housing is mandatory. Hot shaft conduction will destroy bearings.
• Casing Cooling: A water jacket or radiation fins on the casing if gas temperatures exceed 350°C (662°F).
• Bearing Cooling: Bearings must be high-temp rated and housed in a stand-off pedestal with a cooling fan or water circulation.

Dynamic Balancing

• The rotor assembly must be balanced to G2.5 or G1.0 grade. Imbalance caused by uneven wear or thermal expansion is the #1 cause of vibration and premature failure.

Application Specifics (Cement Kiln Wall Cooling)

• Purpose: The fan pulls secondary air through the clinker cooler to cool the clinker from ~1400°C to under 100°C.
• Gas Composition: Contains sharp, angular clinker dust (Al₂O₃, SiO₂, CaO – similar to sandpaper) and corrosive gases.
• Typical Parameters: High flow (100,000 – 1,000,000 m³/h), medium pressure (2000 – 6000 Pa), high temperature (150°C – 350°C+).

What to look for in a Manufacturer / Supplier

When specifying "Cement Oven Wall Cooling Centrifugal Exhaust Fan Blower Wear Resistant," demand the following from your vendor:

1. Hardfacing: Is the impeller coated or welded with a wear-resistant layer?
2. Replaceable Liners: Can you unbolt and replace the casing liner without replacing the entire casing?
3. High-Temp Bearings: Confirm SKF/FAG bearings with high-temperature grease (e.g., Mobil Polyrex EM) or a circulating oil system.
4. Expansion Joint: The diffuser/outlet must include a flexible connector to handle thermal expansion.
5. Vibration Monitoring: Must have ports for accelerometers (a must for predictive maintenance).

Example of a suitable product spec:

• Type: Single Inlet, Double Width (SISW) or Double Inlet, Double Width (DIDW) Backward Inclined Centrifugal.
• Impeller: 16Mn or Wear-resistant steel (Hardox 450) with full hardfacing on blades.
• Casing: Q235B with 10mm thick replaceable wear lining.
• Shaft: 45# steel or 40Cr with cooling fan.
• Bearings: Spherical roller bearings (222 series) in water-cooled plumber blocks.
• Temperature: 350°C (662°F) continuous.

Recommended Vendors (Global examples)

• Howden (Industrial fans)
• Greenheck (Commercial/Industrial)
• New York Blower (NYB) (Heavy duty)
• Robinson Industries (Specialized in high-temp / abrasion)
• Zibo, Shandong (China) – Many factories there specialize in cement plant fans at lower cost (e.g., Zibo Decent Machinery, Zibo Qisheng).

Final Advice: Do not use a standard "dust exhaust fan" for this application. A standard fan will fail within weeks due to erosion. You need a Kiln Clinker Cooler Exhaust Fan specifically designed with hardfacing and high-temperature seals.

If you have specific parameters (Flow rate, Pressure, Gas Temperature), I can help refine the selection.
