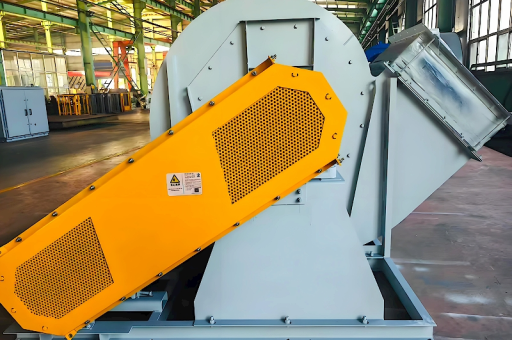

High Air Flow ID Boiler Fan Corrosion Resistant Exhaust Fan

This article's table of contents introduction:

1. The Specific Fan Type: ID (Induced Draft) Fan
2. Key Material & Design Features for Corrosion Resistance
3. Where to Find This Specific Product (Search Terms)
4. Critical Questions You Must Answer Before Buying
5. Summary Recommendation (For Your Keyword Phrase)

Based on your keywords, you are looking for an industrial-grade fan designed to handle high air flow in a boiler or exhaust system, specifically built to resist corrosion. This is a very specific and demanding application, as boiler exhaust (flue gas) is typically hot, moist, and contains corrosive acids (like sulfurous and sulfuric acid) and particulates.

Here is a breakdown of the specific type of fan you need, the key materials, and how to identify the right product.

The Specific Fan Type: ID (Induced Draft) Fan

The "ID Boiler Fan" in your search term is the crucial part. An Induced Draft (ID) Fan pulls hot exhaust gases out of the boiler and through the flue system (scrubbers, stacks, etc.). These fans operate under negative pressure and handle the most corrosive and harsh conditions in the system.

Key Material & Design Features for Corrosion Resistance

For your high-temperature, corrosive exhaust needs, standard carbon steel will fail rapidly. You must look for these features:

1. Wheel (Impeller) Material:

   • Best: Stainless Steel (SS 316L or 904L) : Used for severe acid condensation (sulfur).
   • Good: Fiber-Reinforced Plastic (FRP) : Inherently corrosion-proof, lighter, but limited to lower temperatures (usually <200°F / 93°C).
   • Requires Protection: High-Temp special alloys (Hastelloy) for extreme temps or Heavy-Gauge Steel with Corrosion Resistant Coatings (epoxy, ceramic, or rubber – though rubber has low temp limits).

2. Housing Material:

   • Stainless Steel: Best for longevity against 'dew point' corrosion (condensation that forms acidic liquid on the casing).
   • Abrasion + Corrosion Lining: For gas with fly ash, the housing often needs a wear-resistant lining (like ceramic tile or thick epoxy) inside the casing to prevent the corrosive gases from eating through the metal after the abrasive particles scratch off the paint.

3. Shaft Seals & Bearings:

   • External Bearings: The fan shaft must be sealed where it exits the housing. Look for air purged seals or mechanical seals to prevent corrosive gases from reaching the bearings.
   • Isolated Bearing Housing: Bearings should be on a pedestal outside the corrosive air stream, often with a cooling fan.

4. High Temperature Capability:

   • Standard Exhaust: 300°F - 500°F (150°C - 260°C).
   • Dilution Air: Often used in cooling to protect the fan.
   • Heat Slinger: A feature to cool the shaft where it enters the hot gas.

Where to Find This Specific Product (Search Terms)

To find the exact model, you need to search using industrial fan manufacturer terms. Do not search for "PC fan" or "HVAC fan." You must look for industrial process equipment.

Best Search Terms for Google/Alibaba/McMaster-Carr:

• "High temperature induced draft fan stainless steel 316L"
• "FRP centrifugal exhaust fan boiler flue gas"
• "Corrosion resistant industrial exhaust fan 20,000 CFM" (Adjust CFM to your needs)
• "ID Fan for industrial boiler scrubbing system"

Top Industrial Fan Manufacturers for This Application (Search their product lines):

• New York Blower (NYB): Look for their Series 30 (for high temp) or Series 60 (for industrial/commercial).
• Howden: A global leader in heavy-duty boiler fans (very expensive but top tier).
• Greenheck: Look for their Industrial Process (IP) Series.
• Fantech: Offers excellent corrosion-resistant (FRP/Stainless) fans for high flow exhaust.
• AirPro Fan & Blower Co.: Specializes in custom, corrosion and heat resistant fans for chemical and boiler apps.

Critical Questions You Must Answer Before Buying

The fan you build will depend entirely on your specific conditions. Do not guess.

1. Gas Temperature (Operating & Max): What is the continuous temperature (e.g., 350°F) and the peak emergency temperature?
2. Gas Composition: Is it just hot air, or does it contain:
   • Sulfur (Sulfuric acid condensation risk)?
   • Chlorides (Hydrochloric acid, extremely corrosive)?
   • Fly Ash / Soot (High abrasion)?
   • Moisture (Constant humidity or condensing?)
3. Flow Rate (CFM or m³/h): How much air volume?
4. Static Pressure (in. wg or Pa): How much resistance (ductwork, scrubbers, stack) must the fan overcome?

Summary Recommendation (For Your Keyword Phrase)

The ideal product type: A Centrifugal Forward Curved or Radial Blade Fan (for high flow and pressure) with Stainless Steel 316L or 904L construction, removable shaft seals, and a heat slinger on the motor side. This is specifically an Induced Draft Boiler Fan.

Warning: If your exhaust temperature is above 600°F (315°C) , standard stainless steel loses its strength. You will need specialized Alloy or a Radial Blade Fan with a water-cooled bearing system.

Immediate Action: Contact a manufacturer (like Greenheck, NYB, or a local industrial fan rep) and give them the Temperature, CFM, and Static Pressure + "Corrosive exhaust (sulfur/chlorides)." Tell them you need an "ID Fan." They will provide the exact model number.
