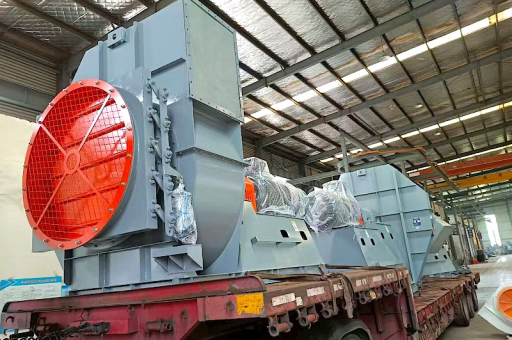

Ac Motor Drying SKF Bearing 3030r/Min Industrial Centrifugal Fans

This article's table of contents introduction:

1. Critical Warning: The 3,030 RPM Factor
2. Method 1: The "Low Voltage / Locked Rotor" Method (Recommended)
3. Method 2: The "VFD Trickle Start" Method (Advanced - Use only if VFD is available)
4. Why you must be careful with the SKF Bearing at 3030 RPM
5. Final Checklist Before Starting

This is a highly specific and critical application. Drying an AC motor in situ (without disassembly) on an industrial centrifugal fan running at 3,030 RPM (which is near or at synchronous speed for a 2-pole motor on 60Hz power) requires extreme caution. The risk of bearing damage (specifically for a SKF bearing in this case) is very high if done incorrectly.

Here is the professional procedure for drying the motor windings while mitigating damage to the high-speed bearings.

Critical Warning: The 3,030 RPM Factor

At 3,030 RPM, you are likely dealing with a 2-pole motor.

• Risk: If the bearings are dry or damaged, running the motor at full speed will cause catastrophic failure (welding of the rollers to the races) within minutes.
• Rule: Do NOT run the motor at full speed if the insulation resistance (IR) is below 1 MΩ. You will likely seize the bearings.

Method 1: The "Low Voltage / Locked Rotor" Method (Recommended)

This is the safest method for the bearings. It uses heat generated in the stator windings without rotating the shaft.

Equipment Needed:

• Low voltage, high current AC source (e.g., a welding machine set to AC, or a variac with a step-down transformer).
• Clamp meter (AC ampere).
• Temperature probe (infrared or thermocouple).

Procedure:

1. Disconnect: Lock out and tag out the main power. Disconnect the motor leads from the starter/VFD.
2. Lock the Rotor: Mechanically lock the fan wheel so it cannot rotate. (Chock the blades or lock the coupling). Do not use a brake on the motor shaft itself if it has a backstop; use wheel chocks.
3. Apply Low Voltage AC:
   • Target: 10% - 15% of rated voltage.
   • Example: A 460V motor gets 46V to 69V AC.
   • Apply DC welding current only if you have a DC-rated motor; otherwise, use AC to avoid electrolytic corrosion in the bearings.
4. Monitor Current: Slowly increase voltage until the current reading is equal to the motor's full load amperage (FLA) . This creates maximum heat in the copper windings with zero rotation.
5. Heat Cycle:
   • Allow the winding temperature to rise to 80°C - 90°C (176°F - 194°F). Do not exceed 100°C to avoid damaging winding insulation.
   • Hold at this temperature for 2-4 hours.
   • Critical Monitoring: Because the rotor is locked, the shaft will not turn. The heat will travel through the housing into the inner race of the SKF bearing. Ensure the bearing housing temperature stays below 70°C (158°F) . Use a temp gun on the bearing cap.
6. Measure Insulation: Once per hour, kill the power, disconnect the welding leads, and use a Megger (500V or 1000V) to test Insulation Resistance (IR).
7. Target: IR should rise above 1 MΩ per kV rating + 1 MΩ (e.g., > 2 MΩ for a 460V motor). Once stable, the motor is dry.
8. Cool Down: Remove the rotor lock. The motor can now be operated at low speed (bump test) and then run up to speed.

Method 2: The "VFD Trickle Start" Method (Advanced - Use only if VFD is available)

If you have a VFD on this fan, you can dry the motor without locking the rotor, but you must control the bearing stress.

Procedure:

1. Set VFD to "Current Limit" mode: Limit the output current to 10% - 20% of FLA.
2. Set VFD to "Boost" mode: Increase the voltage boost at low frequency.
3. Run at 5-10 Hz:
   • The motor will turn very slowly (approx. 150-300 RPM).
   • Benefit: This gently rotates the SKF bearing rollers, distributing grease and preventing "false brinelling" (flat spots) which can happen if the shaft is locked.
   • Risk: The fan wheel is massive. At 5-10 Hz, there is very little air movement, so heat builds up fast in the windings.
4. Monitor Temperature: Windings can reach 90°C quickly. Bearings must stay below 70°C.
5. Duration: Run for 1 hour, then stop and Megger. Repeat until IR is acceptable.

Why you must be careful with the SKF Bearing at 3030 RPM

• Vibration: A wet motor has electrified moisture. As the water boils out of the windings, the rotor can become electrically unbalanced, causing severe vibration. At 3,030 RPM, even a 0.1 mm imbalance can destroy a bearing cage.
• Lubrication: If water has entered the motor housing, it has likely contaminated the bearing grease. SKF bearings at this speed usually require high-temperature, water-resistant grease (e.g., SKF LGHP 2 or similar).
  • Action Plan: Before any drying attempt, if you suspect water ingress in the bearings, inject new grease (1-2 grams) while the shaft is cold to push out the old, wet grease. If the drain plug is open, pump until fresh grease exits the drain.
• Thermal Expansion: The housing grows as it heats. The internal clearance (C3 or C4) in the SKF bearing is designed for this. If you heat the housing too fast, the outer ring expands faster than the inner ring, reducing clearance and causing heat seizure. Heat slowly.

Final Checklist Before Starting

Recommendation: If this is a critical process fan (dust collection, HVAC, etc.), do not attempt to dry it in situ. The bearing risk is too high. Pull the motor, send it to a winding shop for a proper bake-out in an oven, and install new SKF bearings during reassembly. The 3,030 RPM speed demands zero compromise on bearing integrity.
