This article's table of contents introduction:
- Engineering Specifications (Example Estimate)
- Material Requirements (Why "SUS")
- V-Belt Drive vs. Direct Drive
- Key Design Features for Cement Kiln Fans
- Potential Maintenance Issues for this Fan
- Safety and Standards
- Summary Checklist for Procurement:
This is a specific industrial equipment description for a cement kiln application. Here is the breakdown and key engineering considerations for such a fan.
Core Interpretation:
- SUS: Likely stands for Stainless Steel (from Japanese "Stainless Use Steel", e.g., SUS304, SUS316). This material is used due to the corrosive nature of cement kiln gases (sulfur, alkalis, chlorides).
- 26400 M³/H: 26,400 cubic meters per hour. This is the Volume Flow Rate.
- Cement Kiln: The application. This is a high-temperature, dusty, and corrosive environment.
- Blower Fan: Centrifugal fan (radial or backward curved).
- V-Belt Driven: The fan is driven by an electric motor via V-belts, rather than direct drive.
- Medium Pressure: Typically 1,500 Pa to 5,000 Pa (150 to 500 mmWG) in fan classification.
Engineering Specifications (Example Estimate)
Using standard fan laws and typical cement kiln secondary air duct conditions:
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Flow Rate (Q) | 26,400 | M³/H | (7.33 M³/S) |
| Pressure (P) | ~3,000 - 4,000 | Pa | (300-400 mmWG) - Typical "Medium" |
| Air Temperature | 200 - 400 | °C | (392 - 752°F) - Hot gas from cooler or preheater. Critical for material selection. |
| Dust Load | 50 - 150 | g/Nm³ | High abrasion risk. |
| Gas Composition | CO₂, N₂, O₂, trace SOx, NOx, chlorides | Requires stainless steel (SUS316L for high Cl). | |
| Power (Shaft) | ~50 - 75 | kW | Estimated (Q(m³/s) (P(Pa)) SF / Efficiency). |
Material Requirements (Why "SUS")
Cement kiln gas temperatures vary by location:
- Kiln Inlet / Preheater Outlet: 300°C - 400°C +.
- Cooler Vent: 200°C - 350°C.
Material Grade:
- SUS304 (1.4301): Sufficient for low chlorine (< 100 mg/Nm³). Handles temps up to 400°C.
- SUS316 (1.4401) or SUS316L (1.4404): Required if chlorine levels are high (e.g., bypass gas). Superior corrosion resistance.
- SUS310S (1.4845): Required if temperatures exceed 450°C.

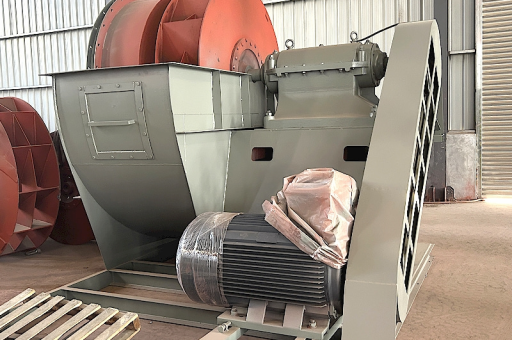

V-Belt Drive vs. Direct Drive
A "V-Belt Driven" fan is chosen for this application because:
- Speed Control: Allows the fan to run at different RPMs than the motor (e.g., motor @ 1450 RPM → fan @ 900 RPM).
- Shock Absorption: V-belts dampen the torque spikes from rotating kiln draft fluctuations.
- Overload Protection: Belts slip slightly during extreme overload (e.g., dust blockage), protecting the motor.
- Ease of Maintenance: Easier to change belts than to replace a motor or coupling.
Downside: Lower efficiency (~92-95%) and limited power transmission (typically < 200 kW per belt set). For a 26,400 M³/H fan, you likely need 10-15 belt strands (e.g., SPB or SPC wedges).
Key Design Features for Cement Kiln Fans
| Feature | Requirement | Why |
|---|---|---|
| Impeller | Radial tipped or backward curved (SUS). | Handles dust abrasion. |
| Housing | Split casing (horizontal or vertical split). | Allows removal of rotor without removing ductwork. |
| Shaft Seal | Labyrinth or Carbon ring with purge air. | Prevents hot gas leakage to bearing housing. |
| Bearings | Self-aligning spherical roller bearings. | High temperature, misalignment tolerance. |
| Belt Guard | Heavy duty, bolted. | Safety for high-speed belts. |
| Drain | Bottom drain plug. | Condensation during startup or cool-down. |
| Corrosion Protection | No paint inside; bare SUS or special coating. | Paint fails at 300°C+. |
Potential Maintenance Issues for this Fan
- Belt Tension: V-belts stretch. Must be checked monthly. Uneven tension causes vibration.
- Wear Plate: An internal wear plate at the impeller inlet is essential. Abrasion from dust is the #1 killer.
- Bearing Temperature: If gas temp > 250°C, bearing housing likely needs air cooling (cooling fan on shaft) or water jacket.
- Imbalance: Dirt/dust buildup on impeller blades causes vibration. Frequent cleaning cycles needed.
Safety and Standards
- ATEX (Europe) / NEC (US): If the fan handles coal mill gas (which this probably doesn't in this context), but for kiln gas, no explosion risk (dust only).
- ISO 1940-1: Balance grade G6.3 or G2.5 for the impeller.
- API 610 / ISO 13709: Not typical for this type of fan; rather ISO 13349 for fans.
Summary Checklist for Procurement:
- Confirm Gas Temperature: Is it 150°C or 400°C? This changes the material and bearing cooling design.
- Confirm Dust Type: Cement dust is abrasive. Impeller should have hardened inlet cone or stellite treatment.
- Motor Speed: To size belts, match motor RPM to fan RPM.
- Ambient Conditions: Humidity, ambient temp (affects bearing selection).
Bottom Line: A SUS 26400 M3/H Cement Kiln Blower Fan V-Belt Driven Medium Pressure is a specialized industrial fan designed for high-temperature, corrosive, dusty kiln gases. It requires stainless steel construction (SUS304 or 316), a V-belt drive for speed flexibility and overload protection, and robust maintenance features (split housing, purge seals, wear liners).
