It sounds like you are looking for a high-temperature, heavy-duty centrifugal fan specifically designed for the raw mill system in a cement plant, with a need for customization.
Here is a breakdown of what "free customization" typically means in this context, the critical specifications for a Raw Mill fan, and how to approach sourcing it.
What "Free Customization" Typically Covers
In the industrial fan industry (especially for cement plants), "free customization" usually refers to engineering the fan to match your specific process conditions, not modifying the price to zero. It means the manufacturer will tailor the design to your site’s ductwork, motor, and space constraints without an additional "engineering change fee."
Common customization parameters include:
- Inlet/Outlet Orientation: (e.g., 0°, 90°, 180°, 270°) to fit existing ductwork.
- Shaft Seal Type: (e.g., labyrinth, carbon ring, or air purge) to prevent dust leakage.
- Bearing Housing Design: (e.g., split pillow block for easy maintenance, or water-cooled for high heat).
- Baseplate & Mounting: (e.g., common base with motor, or individual baseplates).
- Drive Arrangement: (e.g., direct drive, V-belt, or coupling).
- Material of Construction: (e.g., Hardox 500 for blades, or 16MnCr5 for shaft).
Key Specifications for a Raw Mill Fan
The Raw Mill fan is crucial because it handles hot, dusty gases directly from the mill or the preheater.
| Parameter | Typical Requirement | Why it Matters |
|---|---|---|
| Temperature | 80°C to 150°C (can spike to 400°C in emergency) | Must be heat-resistant steel (e.g., Corten or Stainless 310S). |
| Dust Load | 50-80 g/Nm³ (high abrasion) | Requires anti-wear liners (ceramic tiles or hardfacing) on blade tips & casing. |
| Pressure | 800-1200 mmWG (Medium Pressure) | Must be stable to maintain mill draft. |
| Flow Rate | 200,000 to 800,000 m³/h | Very large; requires heavy-duty shaft & bearings. |
| Vibration | < 4.5 mm/s (ISO 10816-3) | Must have rigid shaft design to avoid imbalance. |
The Two Main Fan Types for Raw Mill
-

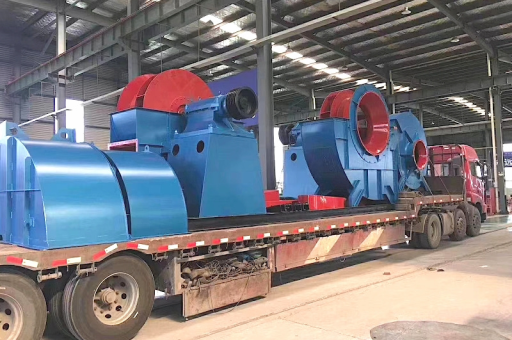

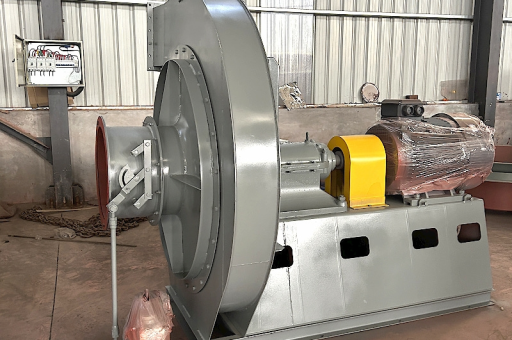

Centrifugal Fan (Radial/Radial Tip):
- Best for: High dust load and high temperature.
- Pros: Self-cleaning impeller (straight radial blades), easy to repair.
- Customization: Blade thickness (10-20mm), radial or backward curved.
-
ID (Induced Draft) Fan (Backward Curved):
- Best for: Higher efficiency (lower power consumption).
- Pros: Quieter, better for variable speed control (VFD).
- Customization: Hollow airfoil blades or single thickness plates.
Steps to Get a "Free Customization" Quote
To get a true custom design, you must provide the manufacturer with a Mechanical Data Sheet or these operating conditions:
-
Process Data:
- Volume flow (Nm³/h or Am³/h).
- Static pressure (Pa or mmWG).
- Gas temperature (Normal and Max).
- Gas density (kg/m³).
- Dust content (g/Nm³).
- Altitude of the site.
-
Interface Data:
- Duct size (Diameter or width/height).
- Motor power available (kW) or required / Voltage & Frequency (e.g., 6kV / 50Hz).
- Space constraints (Length x Width x Height).
- Noise limit (dBA at 1 meter).
-
Desired Features:
- Do you want a VFD-ready design? (Requires critical speed analysis).
- Do you need by-pass or cooling air ports?
- Do you need inlet guide vanes (IGV) for manual or automatic control?
Recommended Manufacturers / Sourcing Strategy
You should look for "Heavy Industrial Fan" manufacturers, not general HVAC fan makers.
Tier 1 (Global, High-End):
- Howden (UK) – Often use "Howden Buffalo" fans for cement.
- Greenheck (USA) – Has a "Cement & Minerals" division.
- Zitron (Spain) – Specialist for mining & cement.
- New York Blower (NYB) (USA) – Reliable for custom work.
Tier 2 (Cost-Effective, Good for Cement):
- Siemens / Flender (Germany) – Often supply complete fan + gearbox systems.
- Fans & Blowers (India/China):
- Aerovent (India) – Very common in Asian cement plants.
- Teral (Japan/Korea) – For high-temp stability.
- Hebei Hengtai / Wuxi Bohua (China) – Very open to full custom design at low cost.
Important Warning: "Free Customization" Pitfalls
- Standard vs. Custom: A true "free custom" fan requires finite element analysis (FEA), modal analysis, and rotor dynamics calculation. If the manufacturer does not do this, the fan will fail due to resonance or fatigue.
- Material Grade: Ensure the "custom" includes certified material test reports (MTRs) for the shaft (EN 10083) and impeller (S460NL or equivalent).
- Spare Parts: A custom fan means custom spare parts (impeller, shaft, bearings). Ask for a full 3D model (STEP file) or a dimensional drawing so you can make parts locally.
My Recommendation: Find a manufacturer that offers "Engineering to Order (ETO)" rather than "Assemble to Order (ATO)." Provide them with a complete Process Datasheet (as above) and ask for:
- A CAD drawing of the site-specific arrangement.
- A Rotor Dynamics Report (to avoid resonance during startup/shutdown).
- A Finite Element Analysis (FEA) for the highest temperature scenario (e.g., 350°C emergency).
