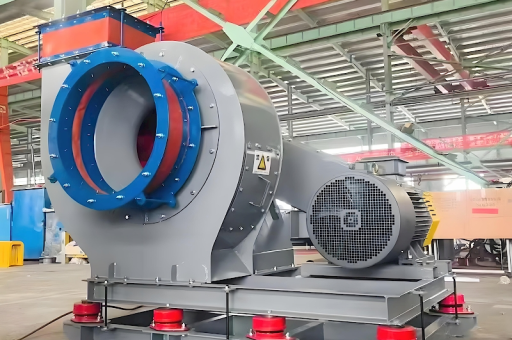

Customized 1450rpm CE Certificate High Temperature Centrifugal Fan For Cement Plant

This article's table of contents introduction:

1. Recommended Product Specification: High-Temperature Centrifugal Fan (Cement Plant Duty)
2. Why this fan is critical for Cement Plants:
3. Sample Vendor Specification Inquiry (For your RFQ)
4. Important Note on "Customization"

Based on your request for a Customized 1450rpm CE Certificate High Temperature Centrifugal Fan for a Cement Plant, here is a detailed technical specification and product description tailored to the demanding conditions of cement production (clinker cooling, kiln exhaust, or raw meal preheating).

This specification assumes you are sourcing this for industrial use, likely for handling hot gases, dust, or corrosive fumes.

Recommended Product Specification: High-Temperature Centrifugal Fan (Cement Plant Duty)

Application Context (Cement Plant)

• Primary Use: Induced Draft (ID) for Kiln, Clinker Cooler Exhaust, or Raw Mill Hot Gas Handling.
• Gas Characteristics: High temperature (up to 400°C / 752°F), abrasive dust particles (clinker, raw meal), corrosive gases (SOx, NOx, alkaline vapor).

Mechanical & Design Features

• Type: Backward Curved / Backward Inclined (to prevent dust buildup and handle high velocities).
• Impeller: High-strength steel (Q345R or Corten for resistance to acid corrosion) or Stainless Steel (SS310S/253MA for extreme temperatures >350°C).
• Shaft: Alloy steel with floating shaft seal (carbon ring or labyrinth seal) to prevent hot gas leakage.
• Bearing Assembly: External pedestal bearings with independent cooling (water cooling or forced air cooling) to prevent lubricant degradation. High-temperature grease (up to 250°C at bearing housing).
• Casing: Heavy-duty steel (6-8mm gauge) with wear plates on the inner inlet cone and volute tongue.

Operational Parameters (Your Specification)

• Speed: 1450 RPM (Direct drive via 4-pole motor).
• Performance:
  • Flow Rate: Typically 50,000 – 200,000 m³/h (customizable based on duct size).
  • Static Pressure: 2000 – 5000 Pa (adjustable for kiln draft resistance).
• Motor: IE3/IE4 High Efficiency, Frame B3 (foot-mounted or IMB3), suitable for VFD (Variable Frequency Drive) operation.

CE Certification Compliance

• Machinery Directive 2006/42/EC: Ensures safe guard design (no sharp edges, proper guards on belts/couplings), vibration limits (ISO 14694: BV-3), and noise levels.
• ATEX Directive (if required): For explosive environments (e.g., coal mill circuits). Fan must be spark-proof (non-ferrous impeller tips or aluminum-bronze wear strips).
• Low Voltage Directive (2014/35/EU): For motor and control panel.
• EMC Directive (2014/30/EU): For electromagnetic compatibility.

Customization Options for High Temperature | Feature | Standard | High-Temperature Option | | :--- | :--- | :--- | | Max Gas Temp | 150°C | 250°C - 400°C | | Impeller Material | Q235 Steel | 16Mo3 (Chromium-Moly) or Stainless Steel 310S | | Shaft Cooling | None | Fan Wheel on Shaft (pulls ambient air over shaft) or Water Cooling Jacket | | Dust Handling | Standard | Bleed-off port in volute or Backward Tapered Hub to prevent dust ingress | | Vibration Monitoring | Optional | Standard (PT100/Vibration sensor) in bearing housing |

Quality Assurance & Testing (Before Delivery)

• Dynamic Balancing: G2.5 or G6.3 grade (ISO 1940).
• Run Test: 24-hour continuous run at 1450 RPM with vibration measurement (≤ 4.5 mm/s RMS).
• Non-Destructive Testing (NDT): Dye penetrant test on impeller welds.
• Material Certificates: 3.1 EN 10204 for high-temp alloy components.

Why this fan is critical for Cement Plants:

• Prevents Clinker Build-up: Backward curved blades resist dust adhesion.
• High Efficiency: Reduces energy costs (cement plants are heavy power users).
• Long Life: Water-cooled bearings and anti-corrosion coatings mitigate damage from SO₂ and alkalis.

Sample Vendor Specification Inquiry (For your RFQ)

Copy and paste this into your procurement request:

"We require one (1) High Temperature Centrifugal Fan for Cement Plant. Operating Conditions: Temp: 300°C, Flow: 80,000 m³/h, Static Pressure: 3500 Pa. Speed: 1450 RPM. Materials: Impeller made of SS310S, Casing with 8mm steel + wear plates. Bearings: External, water-cooled. Accessories: Inlet box damper, expansion joint, vibration sensors, and VFD ready motor. Certification: CE Mark complete (Machinery + LV/EMC). Provide Declaration of Conformity. Customization: Shaft cooling system and dust-resistant seal pack."

Important Note on "Customization"

• Impeller Diameter: For 1450 RPM and high pressure, the impeller diameter will likely be 800mm to 1200mm. Ensure the vendor calculates the specific aerodynamic curve matching your duct system (System Resistance Curve).
• VFD Compatibility: Ensure the fan's critical speed (natural frequency) does not occur within the 25-50 Hz range if using a VFD at 1450 rpm (50 Hz).
