This article's table of contents introduction:
- Understanding the Key Requirements
- Common Applications for This Type of Fan
- Specific Construction Details to Look For
- Blower/Impeller Types for Wear Resistance
- Summary Recommendation

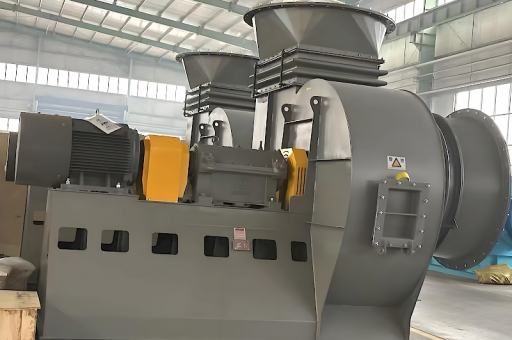

It appears you are looking for Industrial Centrifugal Fans that are specifically built for demanding, high-wear environments. You've listed four critical keywords: Large Capacity, Carbon Steel, Heavy Duty, and Wear Resistant.
These specific combinations are typically called Heavy-Duty ID (Induced Draft) Fans, Abrasion-Resistant Fans, or High-Volume Material Handling Fans.
Here is a breakdown of what that specification means, what industries use them, and what you should look for when sourcing or designing one.
Understanding the Key Requirements
- Large Capacity: This implies high CFM (Cubic Feet per Minute) and high static pressure. These fans are not for HVAC; they are for moving massive volumes of air or gas through ductwork with significant resistance (e.g., baghouses, scrubbers, long duct runs).
- Carbon Steel: While stainless steel is used for corrosion, Carbon Steel (typically ASTM A36 or higher strength A572 Gr. 50) is chosen for its superior strength and cost-effectiveness in high-wear, non-corrosive environments. For extreme abrasion, the wear surfaces are often lined with AR (Abrasion Resistant) plate like AR400 or AR500.
- Heavy Duty: This refers to the construction. Look for:
- Heavy-gauge steel housings (e.g., 1/4” to 1/2” thick).
- Robust shaft sizes (e.g., 1045 or 4140 steel).
- Oversized bearings (Pillow block, spherical roller bearings).
- Structural steel baseplates and supports.
- Wear Resistant: This is the most critical feature for longevity. Protection methods include:
- Wear Plates: Replaceable liners inside the housing at the "cutoff" (the point nearest the impeller) and the scroll.
- Hardfacing: Weld overlay of tungsten carbide or chromium carbide on impeller blades and side plates.
- Thicker Impellers: Using AR400 or AR500 plate for the fan blades themselves.
- Silicon Carbide or Ceramic Lining: For extreme cases (e.g., mineral processing, cement clinker).
Common Applications for This Type of Fan
- Cement Plants: Induced draft fans for kilns (handling hot, abrasive dust).
- Steel Mills: Sinter plant fans, converter gas fans (handling iron ore dust).
- Mining & Minerals: Fans for ore dryers, crushers, and material conveying.
- Power Generation: Coal pulverizer exhaust fans (highly abrasive fly ash).
- Glass Manufacturing: Handling hot, dirty gases with silica particulate.
- Wood Processing: Cyclone fans handling sawdust and wood chips.
Specific Construction Details to Look For
When sourcing or specifying this fan, ask the manufacturer for these specific features:
| Feature | Standard Fan | This Spec (Heavy Duty Wear Resistant) |
|---|---|---|
| Impeller | Standard steel (e.g., 1/4" plate) | AR400 or AR500 plate; Hardfaced on leading edges; Backward Curved or Radial Tip blades. |
| Housing | 10 or 7 gauge steel | 1/4" to 1" thick; Internal wear liners (replaceable); Waffle-style or Ceramic tile lining. |
| Cutoff | Standard sheet metal | Bolt-on, replaceable wear-resistant cutoff (often a cast alloy or AR plate). |
| Shaft | Standard keyed shaft | Large diameter, tapered shaft (for easy impeller removal); Oversized for high torque. |
| Bearings | Light duty | Heavy-duty spherical roller bearings; Continuous oil bath lubrication; Vibration monitoring ports. |
Blower/Impeller Types for Wear Resistance
Not all fan designs handle dust well. You typically need one of these three types:
- Radial Blade (Paddle Wheel): Most common for abrasive duty. Simple, strong, robust. Handles high dust loads but is less efficient (higher noise). Best for mechanical draft.
- Backward Inclined (Airfoil or Single Thickness): More efficient than radial, but the blades must be single thickness (non-airfoil) to prevent dust packing. Requires hardfacing.
- Long Shaving Fan (LSF): If you are handling stringy or fibrous materials (wood, paper), this has a semi-open impeller.
Summary Recommendation
If you are purchasing a Large Capacity Carbon Steel Heavy Duty Centrifugal Fan for Wear Resistance, you should be looking for a Radial Tip or Backward Curved Fan with:
- A heavy-duty steel housing (carbon steel, min 1/4" thick).
- Replaceable AR400 wear liners (minimum) on the inside of the scroll.
- A bolt-on, hard-faced cutoff.
- An impeller made from AR400 plate with hardfacing on the leading edges.
- Certified for API (American Petroleum Institute) or AMCA (Air Movement and Control Association) standards for vibration and balance, Class B or higher.
Three manufacturers to research for this specific spec:
- New York Blower (NYB)
- Howden
- Chicago Blower Corporation
Need further help? If you can provide the specific Gas Volume (CFM), Static Pressure (in wg), Temperature (°F), and Material Being Handled, I can help narrow down the exact model or specification sheet.
