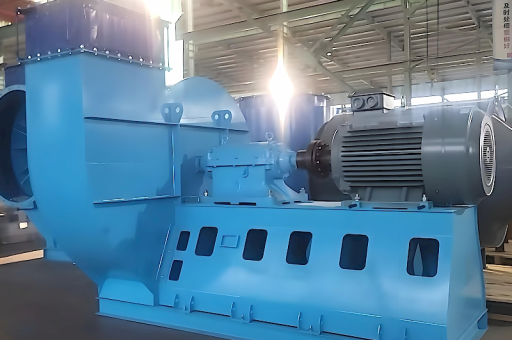

This is a highly specific piece of industrial equipment. Let me break down exactly what this designation means, as it describes a specialized, heavy-duty ventilation fan used in underground coal mining.
The Short Answer: This is a massive, explosion-proof, high-capacity fan designed to suck (exhaust) stale, potentially explosive air out of a coal mine, using two counter-rotating blades to generate very high pressure against the resistance of the mine's ventilation shafts.
Detailed Breakdown of the Model Number: FBCDZ-10-No32
Let's dissect the nomenclature step-by-step:
F - Fan
The primary designation for a fan.
B - Explosion-Proof (防爆)
This is the most critical safety feature. The motor and all internal components are enclosed and designed so that any internal spark or explosion cannot ignite the methane gas or coal dust present in the mine atmosphere outside the fan. The fan casing is also built to withstand an internal explosion without rupturing.
C - Counter-Rotating (对旋)
This is the defining aerodynamic feature. The fan has two impellers (blade sets) mounted on the same axis but rotating in opposite directions.
- Advantage: The rear impeller recovers the swirl energy from the front impeller, acting like a stator and a second stage simultaneously. This generates very high static pressure, which is necessary to overcome the friction of long, complex mine airways. It also makes the fan more compact than a traditional multi-stage fan.
D - Motor Direct Drive (电机直联)
The motor shaft is directly connected to the impeller hub. There are no belts, couplings (in the traditional sense), or gearboxes. This eliminates a major failure point and reduces maintenance, which is crucial in a harsh mining environment.
Z - Axial Flow (轴流式)
The air flows along the axis of the fan (straight through). This is the standard design for high-volume, low-to-medium pressure mine ventilation.
10 - Design Serial Number or Blade Number (设计序号)
This is likely a manufacturer's design iteration or performance classification. It doesn't represent a physical measurement. It could also, in some less common notations, refer to the number of blades on one impeller stage.
No32 - Impeller Diameter (No = 机号)
This is the most important physical dimension.
- No32 means the impeller diameter is 32 decimeters (dm).
- Conversion: 32 dm = 3.2 meters (10.5 feet).
- Implication: This is a very large fan. The impeller is over 10 feet in diameter. This size is required to move the massive volumes of air (often hundreds of cubic meters per second) needed to ventilate a large underground mine.
Putting It All Together: The Full Meaning
FBCDZ-10-No32 translates to:
"A mine exhaust, explosion-proof, counter-rotating, direct-drive axial flow fan, model series 10, with a 3.2-meter diameter impeller."
Key Functional Characteristics
- Purpose: Exhaust (抽流式). This fan is installed at the surface of the mine to pull air out of the underground workings, creating negative pressure that draws fresh air down the intake shaft. This is standard for main mine ventilation.
- Performance: A fan of this size (No32) and type (counter-rotating) is a Main Fan (主扇). It runs continuously 24/7/365.
- Typical Performance Range (Estimated):
- Air Volume: 100 – 250 m³/s (212,000 – 530,000 CFM)
- Static Pressure: 1500 – 6000 Pa (6 – 24 inches w.g.)
- Motor Power: Likely 2 x 400 kW to 2 x 800 kW (two motors, one for each impeller)
- Operational Flexibility: Counter-rotating fans often allow for an adjustable blade angle on one or both impellers. This allows the fan to be tuned to the mine's specific resistance (system curve) without changing the fan speed.
Typical Application Context
This exact fan model is a standard product from Chinese mining ventilation manufacturers (e.g., similar to models from companies like Shandong Mining Machinery Group or Fengfan). It would be installed in:
- Large Underground Coal Mines (e.g., in Shanxi, Shaanxi, Inner Mongolia).
- Mines with high gas emissions (e.g., "gassy" mines classified as low, medium, high, or outburst-prone).
- Mines with long, deep, or high-resistance ventilation shafts.
Safety and Regulatory Compliance
This fan must comply with strict international and Chinese mining standards:
- ATEX / IECEx (for explosion-proof equipment in explosive atmospheres) – likely certified for Group I (Mining) / M2 category.
- Chinese GB Standards (e.g., GB/T 21151-2007 for mine main fans, GB 3836 series for explosion-proof electrical equipment).
Conclusion
The FBCDZ-10-No32 is a very powerful, high-reliability, purpose-built fan. It is the "heart" of a large coal mine's ventilation system. Its size (3.2m diameter), counter-rotating design (for high pressure), and explosion-proof construction (for safety in explosive methane atmospheres) make it a critical piece of safety equipment that protects miners' lives by ensuring fresh air supply and diluting dangerous gases. It is not a general-purpose fan; it is a heavy industrial safety appliance.
