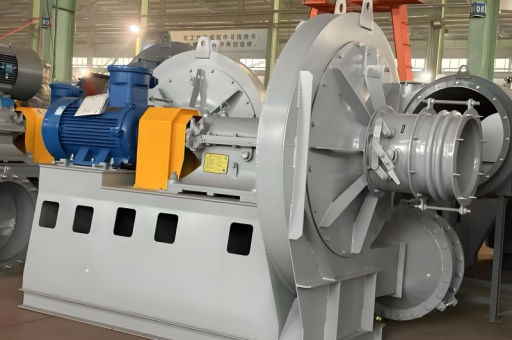

FBCDZ-12-No38 Coal Mine Exhaust Explosion-Proof Counter-Rotating Axial Flow Fan

This article's table of contents introduction:

1. Decoding the Model Number: FBCDZ-12-No38
2. Primary Application
3. Key Design Features & Working Principle
4. Performance Characteristics
5. Critical Advantages Over Single-Stage Fans
6. Potential Drawbacks & Maintenance
7. Summary

This is a highly specific piece of industrial equipment. Here is a detailed breakdown of what the designation FBCDZ-12-No38 Coal Mine Exhaust Explosion-Proof Counter-Rotating Axial Flow Fan means, along with its application and key features.

Decoding the Model Number: FBCDZ-12-No38

Let's break down the alphanumeric code:

• F: Fan
• B: Explosion-proof (防爆, Fángbào)
• C: Counter-rotating (对旋, Duì Xuán - often abbreviated as C in model numbers derived from Chinese standards)
• DZ: This typically refers to the impeller type or specific design series (often related to high efficiency or a specific manufacturer's design series).
• 12: Motor Pole Number. This indicates the fan is driven by a 12-pole motor. The synchronous speed of a 12-pole motor on a 50Hz system is 500 RPM (and 600 RPM on 60Hz). This is a low-speed, high-torque configuration.
• No38: Fan Diameter. This indicates the impeller diameter is 38 decimeters, or 8 meters (12.5 feet). This is a very large industrial fan.
• Coal Mine Exhaust: Primary application is for the main mine ventilation system, specifically for the exhaust (return) air shaft.
• Explosion-Proof: The fan and its motor are designed to prevent any internal spark or flame from igniting the methane gas (firedamp) and coal dust present in the mine atmosphere.
• Counter-Rotating Axial Flow Fan: The core mechanical design. Two impellers are mounted in the same casing but rotate in opposite directions (one clockwise, one counter-clockwise).

Primary Application

This fan is used as a Main Mine Ventilator (MMV) in underground coal mines.

• Exhausting Configuration: The fan pulls air out of the mine. This creates negative pressure inside the mine, causing fresh air to flow in through the intake shaft. This is the most common and safest configuration for coal mines, as it keeps the fan (and its potential ignition source) on the downwind side of the mine.
• Sizing: The "No38" diameter (3.8m) means this is used for very large, high-capacity mines where a huge volume of air (often 10,000 to 20,000 m³/min or more) must be moved to dilute methane, provide oxygen, and control dust and heat.
• Regulation: It must meet strict safety standards (e.g., GB/T 21151 in China) for explosion-proofing and performance.

Key Design Features & Working Principle

• Counter-Rotating (Dual Impellers) :

  • In a single-stage fan, airflow starts to swirl (rotate) after passing the first impeller.
  • The second impeller rotates in the opposite direction, which straightens the airflow and recovers the rotational energy from the first stage.
  • Result: Much higher pressure generation (up to 3-4x higher) compared to a single-stage axial fan of the same diameter and speed. This is critical for overcoming the resistance of a deep and complex mine network.

• Direct Drive (Derived from "DZ") :

  • The impellers are mounted directly on the motor shafts or are coupled via a very short, rigid coupling.
  • No V-belts or long drive shafts are used. This eliminates a major maintenance point (belt slippage, wear) and reduces the risk of sparking from friction.

• Cavity Structure (Standard for Exhaust Fans) :

  • The fan has a stagnation cavity between the motor chamber and the gas flow path.
  • Fresh, cool air from the outside is drawn through this cavity to cool the motor.
  • If any methane migrates into the motor chamber, the cavity prevents the motor spark from reaching the main gas stream.

Performance Characteristics

Critical Advantages Over Single-Stage Fans

1. High Pressure, High Volume: Capable of pushing air through long, narrow, and high-resistance mine tunnels.
2. Simple Drive System: Direct drive eliminates belts, pulleys, and long shafts, reducing maintenance and improving safety.
3. Compact Design: Shorter axial length than a two-stage fan with a middle stationary vane.
4. Adjustable Performance: Blade pitch (angle of attack) can be adjusted on both impellers while the fan is stationary (often manually or by a hydraulic mechanism) to fine-tune airflow without changing fan speed.
5. Explosion-Proof: Designed with spark-proof materials (e.g., copper or brass rings on aluminum blades) and the cavity structure to ensure it can operate safely in a methane-laden atmosphere.

Potential Drawbacks & Maintenance

• Complexity: The control system for two independently rotating impellers is more complex than for a single fan.
• Bearing Maintenance: Both impellers have large, heavy-duty bearings that require careful lubrication and monitoring (vibration analysis, temperature sensors).
• Blade Wear: In harsh mine air (with dust, moisture, rock particles), the blades can erode over time, reducing efficiency.
• Vibration: Counter-rotating fans must be perfectly balanced, as any imbalance in one impeller can excite the other.

Summary

The FBCDZ-12-No38 is a massive, low-speed, high-pressure, explosion-proof fan designed to safely and efficiently exhaust air from a large, deep coal mine. Its key differentiators are the counter-rotating dual impellers (for high pressure) and the direct-drive, cavity-cooled explosion-proof design. It is a critical piece of safety infrastructure, not just a ventilation device.
