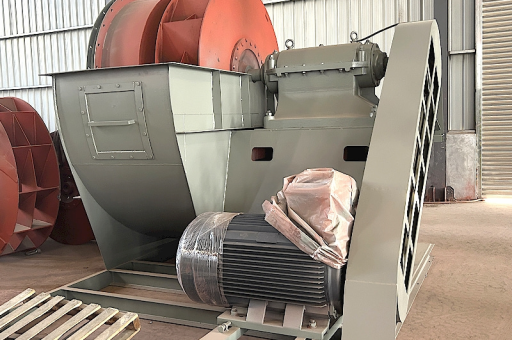

CFD Air Purification Heavy Duty High Pressure Centrifugal Fan

This article's table of contents introduction:

1. What is a CFD Air Purification Heavy Duty High Pressure Centrifugal Fan?
2. Key Features & Design Philosophy (Informed by CFD)
3. Crucial Role of CFD in This Fan
4. Technical Specifications (Typical)
5. Applications (Where is it used?)
6. How to Choose or Specify This Fan (Important)
7. Comparison with Standard Centrifugal Fans
8. Summary

This is a highly specific industrial product description. It combines Computational Fluid Dynamics (CFD) engineering design with a heavy-duty, high-pressure centrifugal fan used for air purification systems.

Here is a detailed breakdown of what this product is, its key features, applications, and how CFD plays a crucial role in its performance.

What is a CFD Air Purification Heavy Duty High Pressure Centrifugal Fan?

It is a specialized fan designed to move large volumes of air against high resistance (static pressure) in industrial air pollution control systems. The "CFD" prefix indicates that the fan's impeller, housing, and inlet were modeled and optimized using Computational Fluid Dynamics software to maximize efficiency, reduce noise, and improve flow characteristics.

Unlike standard ventilation fans, this is a heavy-duty machine built for continuous operation in harsh environments.

Key Features & Design Philosophy (Informed by CFD)

1. Optimized Impeller Design (Backward-Curved/Inclined):

   • CFD Role: CFD software analyzes airflow over the blades, identifying areas of separation and turbulence. The result is a blade profile that efficiently converts kinetic energy into pressure with minimal losses.
   • Benefit: Higher pressure generation (e.g., 2000 Pa to 8000+ Pa) without overloading the motor, making it ideal for pushing air through HEPA filters, scrubbers, or long ductwork.

2. High Static Pressure Capability:

   • Definition: This fan excels at overcoming system resistance (friction from filters, ducts, scrubbers).
   • Importance for Purification: HEPA filters, activated carbon beds, and electrostatic precipitators create significant backpressure. A standard fan would stall; this heavy-duty centrifugal fan continues to perform efficiently.

3. Heavy-Duty Construction:

   • Materials: Steel plate (often coated for corrosion resistance), cast iron, or stainless steel (for corrosive fumes).
   • Bearings & Shaft: Large, sealed bearings and a robust shaft to handle belt-drive stresses and continuous 24/7 operation.
   • Housing: Spiraled scroll casing designed via CFD to minimize recirculation and impingement losses.

4. Efficiency & Energy Savings:

   • CFD Benefit: By modeling the entire flow path (inlet cone, impeller, volute tongue), CFD reduces eddies and shock losses. This directly translates to lower kW consumption per CFM moved against pressure.
   • Peak Efficiency: Often exceeds 80% total efficiency for high-quality designs.

Crucial Role of CFD in This Fan

You will often see this marketed as a "CFD-Designed" or "CFD-Optimized" fan. Here is why that matters:

• Virtual Prototyping: Engineers test dozens of blade shapes and housing geometries on a computer before cutting a single piece of steel. This saves cost and time.
• Noise Reduction: CFD identifies "sweet spots" where blade interactions with the housing tongue cause resonance. The design can be altered to reduce tonal noise.
• Flow Uniformity: CFD ensures a smooth, uniform inlet flow, preventing pre-swirl or stall, which destroys performance.
• Particle Handling (for High-Dust Air): If the purification system handles pre-filtered air (or moderate dust loads), CFD can design the impeller to be less prone to erosion.

Technical Specifications (Typical)

Applications (Where is it used?)

This fan is the "engine" of a purification system. Common applications:

• Industrial Fume Extraction: Welding, painting, chemical processing.
• Dust Collection: Woodworking, food processing, pharmaceutical manufacturing (push through baghouses or cartridge collectors).
• HVAC Scrubbers: Removing VOCs or acid gases from laboratory or manufacturing exhaust.
• Cleanrooms: As part of a Make-Up Air Unit (MAU) forcing air through final HEPA filters.
• Wastewater Treatment: Odor control system (air scrubbing towers).

How to Choose or Specify This Fan (Important)

1. Define DWP (Design Working Point): You need to know exactly:
   • Required CFM (Air Volume)
   • Required Static Pressure (sum of filter resistance, duct friction, and scrubber pressure.)
2. Fan Laws: Understand that the fan's performance curve is fixed but RPM changes the operating point.
3. Motor Size: A heavy-duty fan needs a correctly sized motor. A good CFI-designed fan will have a non-overloading power curve (HP plateaus at higher flow), but safety factors (e.g., 1.15 service factor) should be applied.
4. Duty Cycle: Specify "Continuous Duty" (Class III or IV vibration severity) for heavy-use applications.

Comparison with Standard Centrifugal Fans

Summary

A CFD Air Purification Heavy Duty High Pressure Centrifugal Fan is a premium, high-performance, and energy-efficient machine specifically engineered using computer modeling to achieve very high static pressure for pushing large volumes of air through restrictive air purification media (filters, scrubbers, ducts). It is built robustly for 24/7 industrial operation, sacrificing initial lower cost for significantly higher long-term energy savings and longevity.

If you have a specific requirement (e.g., 3000 CFM at 15" SP for a HEPA system), you would select a fan from a reputable manufacturer (like New York Blower, Cincinnati Fan, Chicago Blower, or Aerovent) that offers units rated at that "DWP" (Design Working Point) with a "BIS" (Backward Inclined) impeller.
