It appears you are looking for information regarding a 16Mn single inlet, large capacity centrifugal flow fan/blower.
Below is a breakdown of what this description means from an industrial fan engineering perspective, including material properties, design characteristics, and typical applications.
Material: 16Mn (Q345 / A572 Grade 50 Equivalent)
16Mn is a low-alloy, high-strength structural steel. In modern Chinese standards (GB/T 1591), it has largely been replaced by Q345 (or Q355). It is the most common material for industrial fan housings and impellers when standard carbon steel (Q235) is not strong enough.
- Why use 16Mn? For large capacity fans, the impeller experiences significant centrifugal stress. 16Mn offers higher yield strength (approx. 345 MPa) than regular carbon steel. This allows for:
- Thinner, lighter construction while maintaining strength.
- Higher tip speeds, allowing for higher pressure generation.
- Better wear resistance (slightly harder than standard steel).
- Note: This is not stainless steel. If the application involves corrosive gases, you would need 304/316 stainless or anti-corrosion coatings.
Design: Single Inlet
- Single Inlet: Air enters the impeller from one side only.
- Comparison: A double inlet (D.I.) fan has an impeller twice as wide with air entering from both sides.
- Implication: For a given diameter, a single inlet fan handles roughly half the volume of a double inlet fan of the same width. However, single inlet fans are easier to install in ductwork systems (inline duct connection) and often have a simpler, more rigid bearing support system.
Type: Centrifugal Flow Fan (Blower)
- Centrifugal: Air is drawn into the center of the impeller (eye) and thrown outward radially by rotating blades.
- Large Capacity: This implies a large impeller diameter (e.g., > 1.5m/5ft) and a high-volume flow rate (typically > 50,000 m³/h or 30,000 CFM).
- Blower: This term often implies medium to high pressure (e.g., > 2 kPa / 8" w.g.). In a "large capacity blower," the fan is designed to move a large volume of air against moderate to significant system resistance (e.g., ductwork, filters, cyclones).
Blade Profile (Common Types for Large Capacity)
The specific blade shape is crucial. For a "large capacity" fan, you are likely looking at Backward Inclined or Airfoil blades.
| Blade Type | Key Characteristics | Typical Use |
|---|---|---|
| Backward Inclined (BI) | Non-overloading power curve (motor won't burn out if duct is open). Moderate pressure, high efficiency. | General HVAC, industrial exhaust, pneumatic conveying. |
| Radial (R or RB) | Robust and simple. High pressure, lower efficiency. Good for dirty/sticky air (self-cleaning). | Dust collection, heavy particulate handling. |
| Airfoil (AF) | Highest efficiency (>85%). Quieter. Cannot handle dirty air (blades clog). | Clean air applications, high-energy systems. |
Typical Applications for a 16Mn Large Capacity Single Inlet Centrifugal Fan
- Steel Mills: Blast furnace gas boosting, sintering plant exhaust, ventilation.
- Power Plants: Induced draft (ID) fans, forced draft (FD) fans for boilers.
- Cement Plants: Baghouse exhaust, kiln induced draft.
- Mining: Mine ventilation, dust extraction.
- Heavy HVAC: Large-scale commercial building ventilation where high static pressure is required.
Key Selection Factors (If you are specifying or buying this)
- Performance Point: Volume (m³/h or CFM) and Static Pressure (Pa or "w.g.).
- Temperature: Is the air hot? 16Mn performs well up to ~200°C (400°F). For higher temps, you need special alloys or cooling designs.
- Gas Composition: Is the air clean? Dusty? Explosive? This dictates the blade type (Radial for dirty, Airfoil for clean) and any required ATEX (explosion-proof) certification.
- Drive Arrangement:
- Arrangement 3 (A3): Motor bearing support, direct drive (high speed).
- Arrangement 1 (A1): Overhung pulley, belt drive (speed adjustment possible).
- Arrangement 8 (A8): Shaft-mounted, bearing pedestals on both sides (for very heavy impellers).
- Balance Grade: For high-speed large fans, a G2.5 balance grade (per ISO 1940) is standard for long bearing life.
Summary Statement

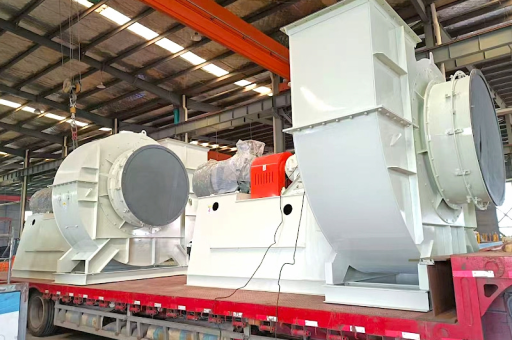

A 16Mn Single Inlet Large Capacity Centrifugal Flow Fan is a heavy-duty industrial blower designed for moving high volumes of air (or gas) against moderate-to-high resistance. It is constructed from high-strength low-alloy steel (16Mn/Q345) to withstand the mechanical stress of a large, fast-spinning impeller. It offers excellent durability and a relatively high strength-to-weight ratio, making it ideal for demanding applications in steel, power, cement, and mining industries where corrosion resistance is not a primary requirement.
If you have a specific drawing, model number, or application (e.g., "boiler ID fan for a 50 MW plant"), please share it for a more precise engineering analysis.
