This article's table of contents introduction:
- What is it?
- Key Features of a High-Quality Unit
- Common Applications
- How to Specify or Find a Replacement
- Example of a Good Product

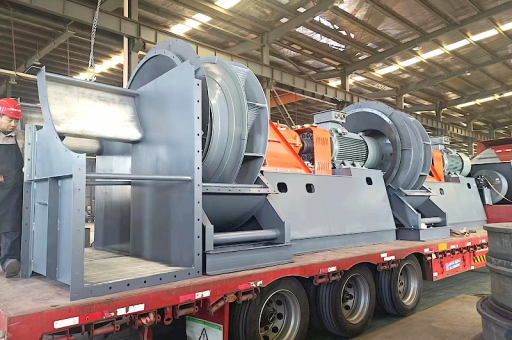

It looks like you are describing a specific type of industrial fan or blower. Based on the keywords "Long Life," "Energy Efficiency," "Dust Collector Blower," and "Single Inlet," here is a breakdown of what this equipment typically refers to and what you should look for.
What is it?
This is a centrifugal fan designed specifically for dust collection systems (baghouses, cartridge collectors, cyclones). The "Single Inlet" designation means air enters from only one side of the fan wheel (as opposed to a double-inlet fan which draws air from both sides).
Key Features of a High-Quality Unit
To achieve the "Long Life" and "Energy Efficiency" you specified, a high-quality model would include:
-
Aerodynamic Design (Energy Efficiency)
- Backward-Inclined (BI) or Airfoil (AF) Wheels: These are the most efficient designs. They handle dust-laden air better than forward-curved fans and operate with less horsepower, saving electricity.
- Non-Overloading Power Curve: As airflow increases, the required horsepower plateaus and then drops. This prevents the motor from burning out if the ductwork is less restrictive than expected.
-
Construction for Long Life
- Heavy-Duty Housings: Typically made of carbon steel (with optional stainless steel or abrasion-resistant liners).
- Wear Protection: Options like internal wear plates, hard-faced shafts, and thick impeller blades to resist erosion from abrasive dust (e.g., sand, grain, metal shavings).
- Shaft Seals: Advanced sealing (e.g., labyrinth or purge seals) to prevent dust from leaking into the bearings.
- Oversized Bearings: Pillow-block bearings designed for thousands of hours of continuous operation.
-
Single Inlet Specifics
- Typically used for smaller to medium CFM applications where the ductwork enters from one side.
- Often mounted with the motor on the top (arrangement like "SWSI" - Single Width, Single Inlet).
Common Applications
- Woodworking shops (sawdust collection)
- Welding fume extraction
- Cement and aggregate plants
- Grain handling and milling
- Pharmaceutical and chemical processing
- General industrial ventilation
How to Specify or Find a Replacement
If you are looking to purchase one or replace an existing unit, you will need these critical parameters:
- CFM (Airflow): Cubic Feet per Minute (how much air you need to move).
- Static Pressure (SP): Inches of Water Gauge (resistance in your ductwork and filter).
- Wheel Diameter: (e.g., 18", 24", 30").
- Motor HP & RPM: Horsepower and speed (often driven by belts).
- Inlet/Outlet Size and Orientation: (e.g., "Clockwise Top Horizontal" or "Counter-Clockwise Bottom Angular").
- Material Handled: Type of dust (abrasive, sticky, explosive, hot).
Example of a Good Product
A reputable manufacturer for this type of fan is New York Blower (NYB) , Cincinnati Fan, Greenheck, or Twin City Fan. A common model number might look like: "SWSI Series 30 BI Fan."
If you meant you have a specific part number, model, or are trying to troubleshoot an existing fan, please paste the exact numbers or describe the problem (e.g., vibration, overheating bearing, low airflow). I can provide more targeted help.
