This article's table of contents introduction:
- The Two Main Fan Types for This Range
- Configurations (Arrangements)
- Key Selection Parameters (Beyond m³/h)
- Example Fan Sizes (Rough Estimate)
- Recommendations for Different Users
- How to Proceed (Your Next Step)
Based on your request for a 3000 to 300,000 m³/h airflow range for a centrifugal fan, you are likely looking at industrial-scale ventilation, dust collection, or HVAC applications. This is an extremely wide range (100x difference), meaning no single fan model can cover it efficiently.
Here is a breakdown of what you need to consider for selecting a fan within this massive airflow range, from the smallest (3,000 m³/h) to the largest (300,000 m³/h).
The Two Main Fan Types for This Range
You will primarily choose between Forward Curved (Squirrel Cage) and Backward Curved (Aerofoil) fans.
| Feature | Forward Curved (FC) / Squirrel Cage | Backward Curved / Airfoil (BC/AF) |
|---|---|---|
| Best For | Lower pressure, high volume, small spaces | High efficiency, high pressure, clean air |
| Efficiency | Low (50-65%) | High (75-85%+) |
| Airflow Range | Good for 3,000 - 100,000 m³/h | Ideal for 5,000 - 300,000+ m³/h |
| Pros | Quiet, compact, low cost | Energy-saving, non-overloading power curve |
| Cons | Overloads motor if pressure drops, lower efficiency | Larger, more expensive |
| Use Case | HVAC units, clean room exhaust, light dust | Industrial exhaust, dust collectors, boiler ID/FD |
Configurations (Arrangements)
- Arrangement 4 (or Arr. 1): Fan wheel overhung on motor shaft (Direct Drive). Best for small to medium sizes (3k-50k m³/h).
- Arrangement 3 (Arr. 3): Motor mounted on pedestal, connected via belt. Most common for 5,000-200,000 m³/h. Allows speed change (airflow adjustment).

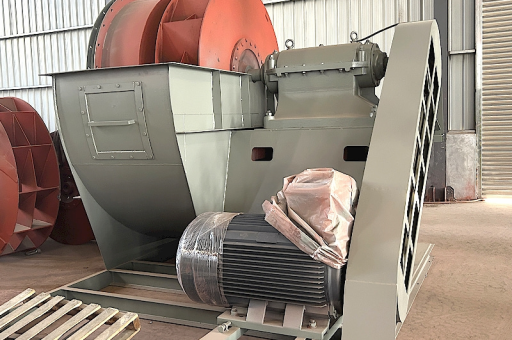

- Arrangement 8 (Arr. 8): Motor on separate base, bearing pedestals on fan housing. Used for very large fans (100k-300k+ m³/h) where heat or heavy loads are factors.
Key Selection Parameters (Beyond m³/h)
To get a quote or specification, you must provide:
- Required Static Pressure (Pa or mmH2O): This is critical. A fan moving 50,000 m³/h against 500 Pa is very different from one moving it against 2,000 Pa.
- Material: Standard steel, stainless steel (for corrosive gases), or MS (mild steel).
- Temperature: High temp (>80°C) requires special bearings and shaft cooling (e.g., Arrangement 8).
- Dust Load: If moving dirty air (dust, smoke, chips), you need a radial tip or paddle wheel fan, not a forward-curved or airfoil.
Example Fan Sizes (Rough Estimate)
This is a very rough guide assuming medium pressure (~1000-1500 Pa).
| Airflow (m³/h) | Typical Fan Model (Size) | Impeller Diameter | Motor Power (kW) approx. |
|---|---|---|---|
| 3,000 | Small FC or BC fan | 315 - 400 mm | 75 - 1.5 kW |
| 10,000 | Medium FC fan | 500 - 560 mm | 2 - 4.0 kW |
| 30,000 | Large BC fan | 710 - 900 mm | 5 - 15 kW |
| 100,000 | Large BC or Radial fan | 1250 - 1600 mm | 30 - 55 kW |
| 200,000 | Very Large Radial/BC fan | 1800 - 2000 mm | 75 - 110 kW |
| 300,000 | Massive Industrial fan (Axial/Centrifugal) | 2200 - 2800 mm | 110 - 250 kW+ |
Recommendations for Different Users
| If you are... | I recommend... |
|---|---|
| HVAC/Plenum | Forward Curved (FC) or Backward Inclined (BI). Size: 250mm-500mm wheel. Quiet, reliable. |
| Dust Collection / Woodworking | Radial Tip or Backward Curved with a heavy-duty housing. Avoid FC (clogs). Size: 500mm-1000mm. |
| Industrial Exhaust (Fumes/Smoke) | Backward Curved (Airfoil) for efficiency. Size: 800mm-2000mm. Needs high pressure capability. |
| Mining / Tunnel Ventilation | Axial fan or Radial (High Pressure) centrifugal. Sizes > 2000mm. Very high pressure. |
How to Proceed (Your Next Step)
To get a precise fan selection, please provide at least:
- Target Airflow (m³/h): (e.g., 25,000 m³/h)
- Total Static Pressure (Pa): (e.g., 1,500 Pa)
- Gas/Application: (e.g., Exhausting paint fumes, clean air supply)
- Temperature: (e.g., 40°C ambient, 150°C hot gas)
- Budget / Region: (Are you in China, EU, USA? This affects availability of standard sizes)

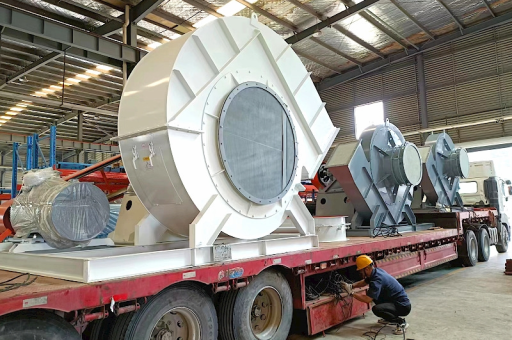

Final Note: A fan rated for 300,000 m³/h is a very large industrial machine (often >2.5m diameter wheel) requiring structural foundations and high voltage (400V or 6kV) motors. A fan at 3,000 m³/h is a small workshop unit. Do not try to buy a single model that claims to do both – you need two different fans for the extremes of this range.
