Based on your query, you are looking for a 380V/50Hz Induced Draught (ID) Fan used as an Industrial Ventilation Blower for a Cement Kiln.
This is a highly specialized piece of equipment. In a cement plant, the Induced Draught (ID) Fan is the "heart" of the kiln system. It pulls hot gases, combustion air, and raw meal dust through the preheater tower, kiln, and into the pollution control equipment (baghouse or ESP).
Here is a detailed breakdown of what you need to know, the technical specifications, and key considerations for selecting this fan.
Function & Critical Role in Cement Kiln
- Purpose: Creates negative pressure (draft) inside the kiln and preheater tower.
- Gas Handling: Moves extremely hot, dusty, and corrosive gases (containing CO, NOx, SOx, and alkali dust).
- System Control: Regulates the air-to-fuel ratio and the residence time of gases, directly impacting clinker quality and fuel consumption.
Technical Specifications (Typical for 380V/50Hz)
Since you specified 380V/50Hz, the fan is likely designed for a medium-sized plant or a specific dust collector leg. Large main kiln ID fans are almost always High Voltage (6kV or 10kV) due to the high power demand.

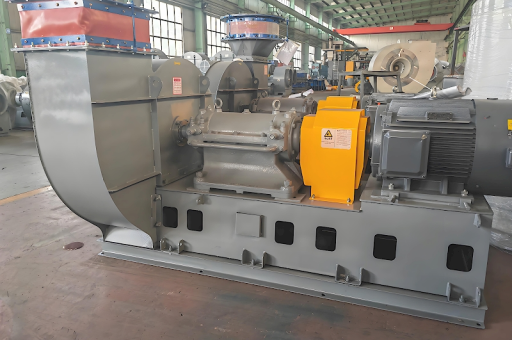

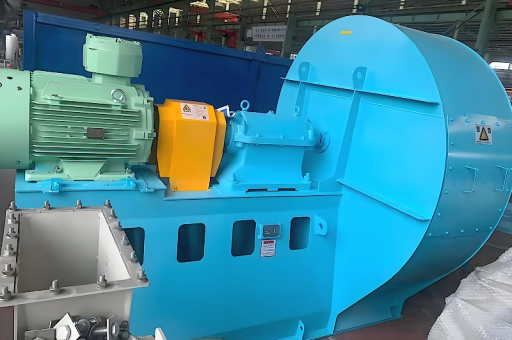

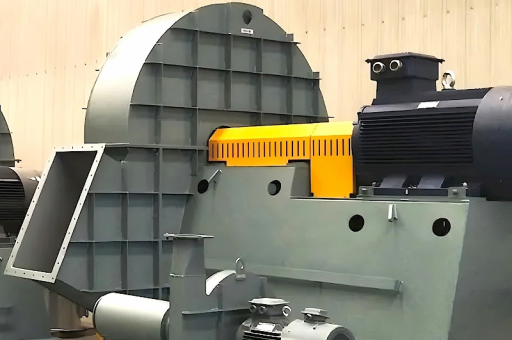

| Specification | Typical Value / Requirement |
|---|---|
| Power Supply | 380V AC, 3-Phase, 50Hz (Often limited to ~250-300 kW max via soft starter or VFD) |
| Flow Rate | 150,000 – 400,000 m³/h (depending on kiln size) |
| Static Pressure | 700 – 1200 mmWG (6,860 – 11,770 Pa) – High pressure to overcome preheater & filter resistance |
| Temperature | Design: 200°C – 400°C (Max surge temperature up to 450°C for safety) |
| Impeller Type | Backward Curve / Airfoil Blades (High efficiency, non-overloading power curve) |
| Material | Impeller: Corten Steel or SAILCOR (Corrosion & erosion resistant) Shaft: Alloy Steel (40Cr or 42CrMo) Housing: Mild Steel with wear plates |
| Drive Type | V-belt drive or Direct coupled with Variable Frequency Drive (VFD) |
| Bearing Type | Split cylindrical roller bearings with cooling fans or water cooling jackets |
Critical Design Requirements for Cement Kiln ID Fans
Because this fan operates in the hottest and most abrasive environment in the plant, standard fans will fail quickly. Ensure these features:
- High-Temperature Construction: The shaft must be shielded from radiant heat (shaft cooling disc). Bearings must have separate cooling (water circulation or forced air).
- Erosion Protection: The blades and housing must have hard-facing (chrome carbide overlay) or replaceable wear plates on the leading edges and casing volute.
- Vibration Monitoring: Must have accelerometers (4-20mA output) connected to a protection system. Any imbalance due to dust build-up or erosion must be detected instantly.
- Dynamic Balancing: The rotor must be balanced to ISO 1940 Grade G2.5 (or better) at operating temperature.
- VFD Ready: Running an ID fan at constant speed is inefficient. You must use a Variable Frequency Drive (VFD) for soft start, energy savings (by controlling damper position), and protecting the motor from thermal stress.
Potential Suppliers (Targeting 380V/50Hz Market)
For a 380V/50Hz specification, you are likely looking at Indian, Chinese, or European manufacturers.
- Indian (Heavy Industry / Cement Specialists):
- Howden India (Formerly Howden Huron) – Global leader in kiln fans.
- FlaktWoods (Colfax) – High efficiency centrifugal fans.
- Kirloskar Brothers / Kirloskar Fans – Reliable industrial fans.
- TLT Turbo / V Tech – Specialists for cement process fans.
- Chinese (Cost-effective, strong for 380V range):
- Shenyang Blower Works Co., Ltd (SBW) – Very large state-owned manufacturer.
- Shanghai Blower Co., Ltd.
- Nanfang Ventilator Co., Ltd.
- Shandong Jinan Fan Factory – Common supplier for small-to-medium kilns.
- European (Premium, high efficiency, long life):
- Körting Hannover AG (Germany) – High temperature fans.
- ABB / Siemens (Motors + Drive packages).
- Ventilatorenfabrik Oelde GmbH (Germany).
Critical Sizing Parameters (Provide to the Supplier)
To get an accurate quote, you must provide these 5 data points:
- Gas Volume: Actual m³/h at operating temperature (not Nm³/h). Specify if it's wet gas or dry gas.
- Operating Temperature: Normal (e.g., 350°C) and Maximum (e.g., 450°C).
- Gas Composition: Dust concentration (g/Nm³) and chemical content (SO2, alkali).
- Total System Resistance: Static pressure required (in mmWG or Pa).
- Altitude: Affects air density and motor power requirement.
Installation & Safety Notes
- Ductwork: The inlet duct must be straight for at least 3-4 pipe diameters to avoid turbulence and vibration.
- Dampers: Inlet guide vanes (IGV) are standard for control, but VFD is preferred.
- Motor Protection: Since it's 380V, ensure the motor has PT100 thermistors and space heaters (to prevent condensation when stopped).
- Safety: Never run the fan without high-temperature alarms and a vibration trip system. A rotor failure at high speed can destroy the entire fan house.
Summary Recommendation
Since you are using 380V/50Hz, you are likely looking for a medium-sized fan (e.g., for a 1000-2000 TPD kiln or a dedicated cooler/coal mill circuit).
I recommend you contact a specialized fan manufacturer (like Howden India or a Chinese specialist) with the following request:
"Require one (1) Induced Draught Fan for Cement Kiln, 380V/50Hz. Gas flow: [X] m³/h at 350°C. Static pressure: [Y] mmWG. Gas contains abrasive cement dust. Please offer a backward curve impeller with wear protection, water-cooled bearings, and a VFD control package. Provide rotor balancing certificate and material certificates."
Can you provide the approximate kiln capacity (tons per day) or the required air flow (m³/h)? This will help narrow down the exact power rating and supplier range.
