This is a request for a specific industrial product. Below is a detailed breakdown of what Customizable Large Heavy Duty Centrifugal Fans with Three Phase AC Motors typically entail, including key specifications, customization options, and common applications.
This response is designed to help you understand the product category or to provide a framework for requesting a quote from a manufacturer.

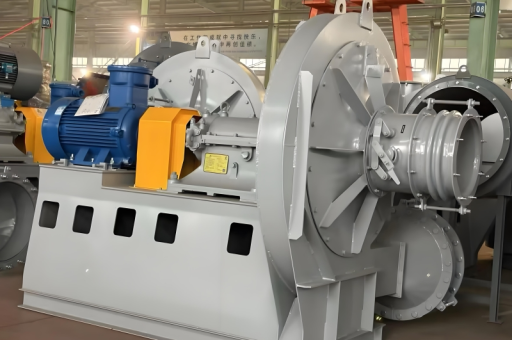

Product Overview
These fans are industrial-grade air movers designed for high static pressure, large air volume, and continuous operation in harsh environments. The "customizable" aspect allows for optimization of performance, material compatibility, and physical footprint.
Core Components & Specifications
-
Fan Type (Centrifugal)
- Forward Curved (Squirrel Cage): High volume, lower pressure. Good for clean air, HVAC, and material handling (light dust).
- Backward Curved/Inclined: High efficiency, high pressure, self-limiting power. Ideal for industrial ventilation, dust collection, and OEM systems.
- Airfoil: Most efficient. Uses aerofoil-shaped blades for high-pressure, high-volume applications with low noise.
- Radial (Paddle Wheel): Rugged, simple design. Handles sticky, moist, or abrasive materials (dust, fumes, wood chips).
-
Motor (Three Phase AC)
- Power: Typically 5 HP to 200+ HP (3.7 kW to 150+ kW).
- Voltage: 208V, 230V, 460V, 575V (or international 380V, 415V).
- Enclosure: TEFC (Totally Enclosed Fan Cooled) is standard for dirty environments. Explosion-proof (XP) for hazardous locations.
- Frame Size: NEMA 180+ or IEC equivalents.
- Speed: Direct drive (4-pole, 1750 RPM or 6-pole, 1160 RPM) or Belt-driven (variable speed via pulley change).
Key Customization Options
When ordering, you can typically specify the following:
| Feature | Options |
|---|---|
| Housing Material | Carbon Steel (standard), Stainless Steel (304/316L), Aluminum, Fiberglass Reinforced Plastic (FRP) |
| Wheel Material | Same as housing. Options for coatings (epoxy, galvanized, Halar, rubber lining) for corrosion/abrasion resistance. |
| Drive Type | Direct Drive: No belts, zero maintenance, higher RPM, lower torque. Belt Drive: Flexible speed adjustment, higher torque, easier motor replacement. |
| Orientation | Arrangement (e.g., Arrangement 1, 4, 8, 9 – defines motor location). Discharge position (Upblast, Downblast, Downward, Angular). |
| Accessories | Inlet/Outlet dampers, weather hoods, bird screens, vibration isolators, flexible connectors, shaft seals, thermal protection. |
| Motor Specifications | Premium Efficiency (IE3/IE4), Inverter Duty (for VFD control), Brake motor, High Altitude, Special Insulation (Class H). |
Typical Applications
- Industrial Ventilation: Exhausting hot air, fumes, smoke, and VOCs.
- Dust Collection: Moving air through baghouses, cartridge collectors, and cyclones.
- Material Handling: Conveying wood chips, grains, powders, or metal shavings.
- HVAC & Clean Rooms: Large commercial buildings, hospitals, and labs requiring high static pressure.
- Process Cooling: Oven, furnace, and kiln air circulation.
- Wastewater Treatment: Aeration and odor control systems.
- Mining & Tunnels: Primary and secondary ventilation.
How to Specify a Custom Unit (For RFQ)
To get an accurate quote, provide the following information to the manufacturer:
- Required Performance:
- Air Volume (CFM or m³/h)
- Static Pressure (inches w.g. or Pascals)
- Air Density / Temperature (e.g., "100°F, Sea Level")
- Operating Environment:
- Clean, dusty, corrosive, explosive, or high humidity?
- Are there specific chemical names (e.g., HCl, H₂S)?
- Is it outdoors or indoors?
- Physical Constraints:
- Maximum width, height, depth.
- Inlet/outlet duct size requirements.
- Weight limit for mounting.
- Electrical Requirements:
- Voltage, phase, frequency (e.g., 460V, 3-phase, 60Hz).
- Are you using a VFD (Variable Frequency Drive)?
- Certifications & Standards:
- AMCA (Air Movement and Control Association) – for performance and sound.
- UL/CE/ATEX (for explosion-proof).
- ASHRAE (for HVAC applications).
Example Specification Input
"Looking for a Belt-Driven, Backward Inclined Centrifugal Fan. Performance: 25,000 CFM at 10" w.g. static pressure. Application: Exhaust from a powder coating booth (dusty, non-corrosive). Material: Carbon steel with a protective epoxy coating. Motor: 50 HP, 460V, 3-phase, TEFC, Premium Efficiency. Orientation: Top horizontal discharge, bottom inlet. Accessories: Inlet damper, vibration isolators, weather hood."
Where to Source
- Major Global OEMs: Greenheck, Twin City Fan, New York Blower, Chicago Blower, Howden, FläktGroup.
- Regional/Industrial Specialists: Many local HVAC or industrial fan manufacturers offer custom fabrication.
- Used/Refurbished: Reputable dealers for industrial machinery.
Final Note: "Customizable" often implies a higher price and longer lead time (4-20 weeks depending on complexity). Always request certified performance curves (AMCA) before finalizing the design.
