Fluidized Bed Boiler Blower Fan High Performance Large Air Flow

This article's table of contents introduction:

1. Why the Blower Fan is Critical for FBBs
2. Key Requirements for High-Performance FBB Fans
3. The Best Fan Types for This Application
4. Crucial Design Features for FBB Blowers
5. Performance Parameters to Match (Sample Spec Sheet)
6. Common Configurations
7. Leading Manufacturers
8. Summary Conclusion

It sounds like you're looking for information on high-performance, large air flow blower fans specifically designed for Fluidized Bed Boilers (FBB) . This is a highly specialized industrial fan application, as the fan is critical for the combustion process and bed fluidization.

Here is a detailed breakdown of the requirements, types, and key considerations for this specific application.

Why the Blower Fan is Critical for FBBs

In a Fluidized Bed Boiler, the blower (often called the Primary Air Fan or Fluidizing Air Fan) does two main jobs:

1. Fluidization: It must provide enough pressure and velocity to lift and suspend the bed material (sand, fuel, and ash) so it behaves like a boiling liquid.
2. Combustion: It supplies the oxygen (O₂) needed for the fuel to burn efficiently.

If the fan fails or underperforms, the bed collapses (leading to a "slumped bed") and the boiler shuts down.

Key Requirements for High-Performance FBB Fans

• High Static Pressure (5,000 – 15,000 Pa / 20 – 60 in. w.g.): The fan must overcome the pressure drop across the air distributor plate (nozzles), the heavy fluidized bed itself, and the ductwork. Standard fans can't do this.
• Large Air Flow (10,000 – 500,000+ CFM): FBBs are large volumetric machines. The fan must move a massive amount of air relative to its size.
• High Efficiency (η > 85%): These are very high-power consumers (often 500 kW – 5 MW). A 1% efficiency loss can cost tens of thousands of dollars per year in electricity.
• Reliability & Ruggedness: The fan runs 24/7. It must handle high temperatures (if pulling hot air), erosive fly ash, and potential dust loading.
• Stable Performance: The fan curve must be steep and stable to handle changes in bed resistance without surging.

The Best Fan Types for This Application

For large, high-pressure FBB applications, the configuration is almost always:

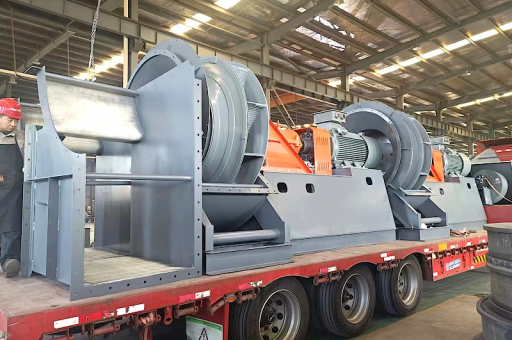

Backward Inclined (BI) or Backward Curved (BC) Centrifugal Fan

• Best For: High pressure, high efficiency, and clean-ish air.
• Pros:
  • Highest efficiency (>85%) at the design point.
  • Non-overloading power curve (motor won't burn out if ductwork is blocked).
  • Very quiet.
• Cons: The impeller is larger and heavier than other types.

Airfoil (AF) Centrifugal Fan

• Best For: The absolute highest efficiency and quietest operation.
• Pros: Efficiency can reach >90% due to aerodynamic wing-shaped blades.
• Cons: More expensive. Blades can be more sensitive to erosion from fine fly ash (although coatings help).

Radial (Paddle Wheel) Centrifugal Fan

• Best For: Severe duty, dirty air, or high erosion risk.
• Pros: Extremely rugged, easy to repair, handles heavy dust loads well.
• Cons: Lower efficiency (65-75%) and louder. Mostly used for Secondary Air Fans or Induced Draft (ID) fans pulling dirty gas, not the primary fluidizing air fan in modern high-performance plants.

Verdict for High-Performance Fluidizing: Backward Inclined (BI) or Airfoil (AF) centrifugal fans are the industry standard.

Crucial Design Features for FBB Blowers

If you are sourcing or specifying this fan, look for these features:

1. Heavy-Duty Shaft & Bearings: Must be designed for continuous 24/7 operation. Spherical roller bearings (split pillow block type) are standard for easy maintenance.
2. Erosion Protection: The air may contain fine ash particles. The impeller blades should have:
   • Wear plates or hard-facing (Stellite or tungsten carbide coatings) on the leading edges.
   • Volute liners in the spiral housing.
3. Variable Speed Drive (VSD) Ready: To achieve high performance, the fan must be able to modulate flow. The most efficient method is with a VFD (Variable Frequency Drive). The fan and motor must be rated for inverter duty.
4. High Temperature Capability: If the fan pulls hot air from the boiler house (flue gas recirculation) or uses a heater, the shaft seals and bearings must handle heat (often requiring cooling fans or water-cooled bearings).
5. Inlet Box with Dampers: For flow control at startup, the fan needs a modulating inlet vane (damper) or a VFD.

Performance Parameters to Match (Sample Spec Sheet)

When ordering, your vendor needs these exact numbers:

Common Configurations

• Direct Drive (90% of cases): The fan impeller is mounted directly on the motor shaft.
  • Pros: No energy loss from belts, fewer moving parts, higher reliability.
  • Cons: Fan speed is fixed to motor speed (unless VFD is used).
• Belt Drive (10% of cases): Used for smaller boilers or custom speed requirements.
  • Pros: Allows you to change speed by swapping pulleys.
  • Cons: Belt friction reduces efficiency by ~3%, belts need maintenance.

Leading Manufacturers

For a "High Performance Large Air Flow" FBB blower, you would typically source from heavy industrial fan OEMs (Original Equipment Manufacturers). Reputable names include:

• Howden (Global leader in FBB and CFB fans)
• Greenheck (Industrial Division)
• Cincinnati Fan
• New York Blower Company
• Robinson Fans
• TLT-Turbo
• Twin City Fan & Blower
• FläktGroup

Summary Conclusion

For a Fluidized Bed Boiler Blower Fan requiring High Performance and Large Air Flow:

1. Type: Use a Backward Inclined (BI) Centrifugal Fan or Airfoil Fan.
2. Drive: Direct Drive with a VFD (Variable Frequency Drive) for maximum efficiency.
3. Material: Heavy-gauge steel with erosion protection (hard-faced blades).
4. Specs: High static pressure (10-15 kPa) and very high efficiency (>85%).
