4-22kw Q345 High strength low alloy steel sintering blower induced draft fan

This article's table of contents introduction:

1. "4-22kw" (Power Range)
2. "Q345" (Material Grade)
3. "High strength low alloy steel" (Material Category)
4. "Sintering blower / induced draft fan" (Application & Function)
5. Complete Interpretation
6. Typical Use Cases (4-22kW range)
7. Important Considerations
8. Summary Table

This is a technical specification for an industrial fan. Let's break down what "4-22kw Q345 High strength low alloy steel sintering blower induced draft fan" means, as this describes a specific type of heavy-duty fan used in metallurgical processes (like steel production).

Here is a detailed explanation of each component:

"4-22kw" (Power Range)

• Meaning: This indicates the motor power range for the fan series.
• 4kW (Kilowatts): The smallest or base model in this series.
• 22kW (Kilowatts): The largest or top-end model in this series.
• Implication: This is a relatively small to medium industrial fan. For sintering applications, large furnaces use motors in the hundreds of kW or even MW range. A 4-22kW fan is likely used for auxiliary systems, small sintering machines, or material handling (dust extraction, cooling of smaller sinter beds, or forced draft for small-scale operations).

"Q345" (Material Grade)

• Meaning: This is the Chinese GB standard designation for a high-strength low-alloy (HSLA) structural steel. Its closest international equivalents are:
  • ASTM A572 Grade 50 (USA)
  • S355JR / S355J2 (European EN 10025 standard)
• Properties: Yield strength of approximately 345 MPa. It offers better strength, toughness, and weldability than standard carbon steel (like Q235).
• Why use Q345? It provides a good balance of strength and cost for components that need to handle moderate stress and vibration. It's a step up from standard carbon steel but much cheaper than stainless steel.

"High strength low alloy steel" (Material Category)

• This confirms the material classification. It implies the fan is built for durability and can handle some corrosive or abrasive environments better than plain carbon steel, though not as well as stainless steel.

"Sintering blower / induced draft fan" (Application & Function)

• Sintering: This is a process in steelmaking where fine iron ore dust is mixed with coke and limestone, then heated to form a porous "sinter" block suitable for the blast furnace.
• Blower vs. Induced Draft Fan (ID Fan):
  • Blower (Forced Draft - FD): Pushes air into the sintering machine (under the grate) to supply oxygen for combustion of the coke.
  • Induced Draft Fan (ID Fan): Pulls hot, dusty, and corrosive gases out of the sintering machine, creating negative pressure.
  • In your case: This fan could be designed for either role, or it's a general-purpose fan for the sintering plant (e.g., for cooling or exhaust).

Complete Interpretation

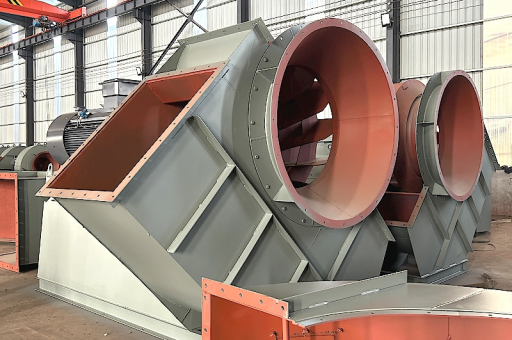

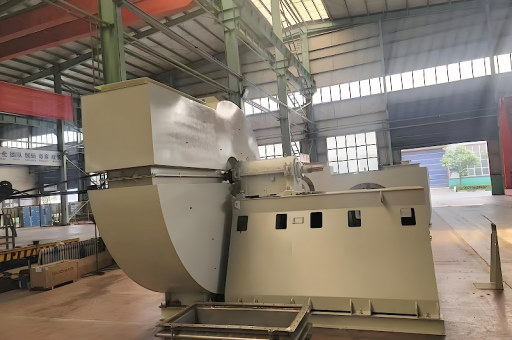

You are looking at a small-to-medium capacity industrial centrifugal fan, built from Q345 high-strength steel.

Key Characteristics:

• For: Sintering plants in steel mills or non-ferrous metal processing.
• Size: Relatively small (4kW to 22kW motors).
• Material: Q345 steel (stronger and more durable than standard carbon steel, suitable for moderate temperatures and abrasive dust).
• Application: Likely for auxiliary duties such as:
  • Small sinter cooler exhaust.
  • Dust collection system air mover.
  • Forced draft for a small pilot or laboratory sintering machine.
  • Secondary air supply.

Typical Use Cases (4-22kW range)

• Workshop Ventilation: Removing fumes and heat from a sintering workshop.
• Small-Scale Sinter Machines: Used in smaller steel plants, pilot plants, or research facilities.
• Dust Handling: Moving air through a baghouse or cyclone for dust control in the sintering area.
• Cooling: Drawing ambient air over sintered material to cool it down before handling.

Important Considerations

1. Temperature: Sintering gases can be very hot (150°C - 400°C) and often contain acidic components (SO₂, NOx). Make sure the fan is specified for the actual operating temperature.
   • For high-temperature applications, Q345 can be used up to ~400°C, but you may need a special high-temperature version with a cooling impeller or different shaft design.
2. Abrasion: Sinter dust is highly abrasive. The impeller and casing may need wear-resistant liners or hard-facing.
3. Corrosion: Acidic condensation can occur if the gases cool below the dew point. This kills standard carbon steel. For this, you would often upgrade to stainless steel (e.g., 304L or 316L) , which is why your fan is likely for a dry, lower-temperature auxiliary duty (e.g., cooling air, not direct exhaust from the sinter strand).

Summary Table

In short: This is a robust, mid-range workhorse fan for a sintering plant's auxiliary systems, built to handle moderate stresses and temperatures better than a standard steel fan. It is not the main process fan for a large blast furnace sinter plant (which would be much larger).
