** Industrial-Grade Protection & Zero-Leakage Design: The Ultimate Guide to Industrial Centrifugal Fans for Hazardous Environments

Table of Contents

1. Introduction: The Critical Need for Safety in Hazardous Zones
2. What Defines an Industrial-Grade Protection Centrifugal Fan?
3. Understanding the Zero-Leakage Imperative
4. Key Engineering Features of Hazardous Environment Fans
   • 1. Material Selection & Spark-Resistant Construction
   • 2. Shaft Sealing & Dynamic Leak Prevention
   • 3. Motor & Drive Isolation
   • 4 Compliance with ATEX, IECEx & NEC Standards
5. Applications Across High-Risk Industries

   Oil & Gas / Chemical Processing / Pharmaceutical / Mining

6. Common Questions & Expert Answers (FAQ)
7. How to Select the Right Fan for Your Hazardous Location
8. Conclusion: Why Zero-Leakage is Non-Negotiable

Introduction: The Critical Need for Safety in Hazardous Zones

In environments where explosive gases, flammable vapors, corrosive chemicals, or combustible dust are present, a conventional industrial fan is a liability. A single spark, a leak of toxic fumes, or an overheated bearing can trigger a catastrophic event—loss of life, environmental disaster, and multi-million-dollar facility shutdowns. This is why industrial-grade protection centrifugal fans with zero-leakage technology have become the backbone of safety in hazardous locations.

Modern engineering has evolved beyond simple "explosion-proof" labels. Today, a true hazardous environment centrifugal fan must deliver intrinsic isolation—preventing the escape of process gases while simultaneously preventing external ignition sources from entering the fan housing. This article explores every facet of these critical assets, from material science to regulatory compliance, answering the hard questions engineers and procurement managers face.

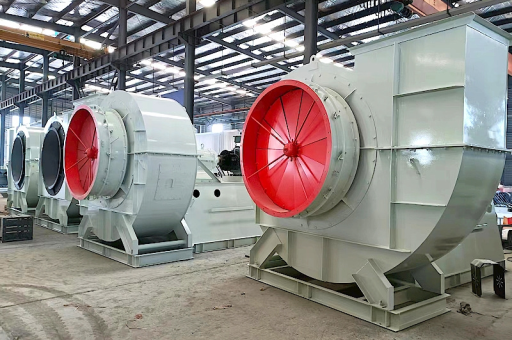

What Defines an Industrial-Grade Protection Centrifugal Fan?

An industrial-grade protection fan is not merely a strengthened standard fan. It is a system designed from the ground up for:

• Operational Reliability in unclassified environments with high humidity, temperature extremes, and corrosive agents.
• Structural Fortitude to withstand pressure ratings often exceeding 300 kPa (for gas-tight applications).
• Low Maintenance Intervals — bushings, seals, and bearings built for continuous duty in dirty conditions.

When applied to hazardous environments (classified as Zone 1, Zone 2, or Division 1), these fans must additionally meet stringent protection concepts such as Ex d (flameproof enclosure), Ex e (increased safety), and Ex h (constructional safety) as per international standards. The zero-leakage feature elevates this fan to a category of asset used in critical containment: no process gas escapes to the atmosphere, and no external air infiltrates the stream.

Understanding the Zero-Leakage Imperative

The term "zero-leakage" is often misunderstood. In real-world engineering, absolute zero is near-impossible; the standard accepted is leakage rate below 0.1% of rated flow at a specified differential pressure. Why is this required?

1. Toxic Gas Containment – In chemical plants handling hydrogen sulfide (H₂S) or chlorine, even a few ppm leakage can harm personnel.
2. Pure Process Streams – In pharmaceutical or semiconductor applications, air ingress contaminates the product.
3. Explosion Prevention – A leak of flammable gas outside the fan housing creates an explosive atmosphere at the motor or drive unit.

Zero-leakage designs rely on:

• Double mechanical seals with buffer gas systems
• Labyrinth seals with purge ports
• Static O-rings and gaskets meeting API 610/API 682 standards
• Welded casings with no bolted penetrations

Key Engineering Features of Hazardous Environment Fans

1. Material Selection & Spark-Resistant Construction

Industrial-grade fans for hazardous environments use non-sparking materials in the impeller and housing contact zone. Common choices:

• Aluminum-bronze or monel impellers (for explosive gas zones)
• Stainless steel 316L (for corrosive + flammable combinations)
• Epoxy-coated or FRP (Fiber-Reinforced Plastic) – for chemical resistance and electrical non-conductivity

Casing thickness is increased over standard designs, often double-walled, to contain internal explosions should they occur (per EN 13463-1).

2. Shaft Sealing & Dynamic Leak Prevention

The shaft penetration is the most vulnerable leakage zone. Advanced solutions include:

• Carbon ring seals with labyrinth grooves
• Magnetic fluid seals – for ultra-low leakage in toxic gas service
• Dynamic gas seals (DGS) – pressurized with inert nitrogen (N₂) to create a barrier
• Failure monitoring ports to detect seal wear without shutdown

3. Motor & Drive Isolation

In hazardous areas, the motor must never be inside the gas stream. Motor isolation achieved via:

• Close-coupled designs with flanged isolation barriers
• V-belt drives with spark-resistant belts (distance shaft to motor)
• ATEX-certified explosion-proof motors if direct-coupled inside the hazardous zone

4 Compliance with ATEX, IECEx & NEC Standards

Only fans carrying third-party certification (e.g., TÜV, UL, FM Global) should be considered for zero-leak claims.

Applications Across High-Risk Industries

In every case, the fan is the final barrier between the hazardous process and the external environment.

Common Questions & Expert Answers (FAQ)

Q1: What is the difference between "explosion-proof" and "zero-leakage"?

A: Explosion-proof means the fan housing can contain an internal explosion without rupturing, preventing flames from escaping. Zero-leakage means no process gas escapes the housing at all—seals, joints, and shaft penetrations are designed to eliminate external leakage. Many hazardous fans combine both features.

Q2: How is zero-leakage verified?

A: Manufacturers perform hydrostatic leak tests and tracer gas tests (using helium or SF₆) with mass spectrometer detectors. A typical acceptance criterion is <0.1% leakage at 150% of operating pressure. Certifications like API 682 require quarterly reporting.

Q3: Can a standard centrifugal fan be modified to be zero-leakage?

A: Not safely or cost-effectively. Zero-leakage requires specially cast housings with minimum joints, custom shaft seals, and often welded connections. Retrofitting leads to points of weakness. Always buy a fan designed from scratch for the hazard class.

Q4: What maintenance does a zero-leakage fan require?

A: Weekly seal flush monitoring, quarterly seal pressure checks, annual O-ring replacement, and non-destructive testing (NDT) of welds every 2 years. Some modern fans have embedded IoT sensors for continuous seal health tracking.

Q5: Which is better—magnetic fluid seals or double mechanical seals?

A: Magnetic fluid seals offer near-zero leakage but are sensitive to particulate contamination. Double mechanical seals with buffer gas are more tolerant of dirty streams. For oil & gas, recommended are dual unpressurized seals with leakage detection.

Q6: Are zero-leakage fans suitable for dust explosions?

A: Yes—with modifications: explosion venting panels (if required by building code), smooth surfaces to prevent dust accumulation, and grounding straps to prevent static build-up.

Q7: How does price compare to a standard industrial fan?

A: Expect 3x–5x premium due to specialized materials, precision machining, and third-party certification. However, a single leak event can cost >$500K in fines, cleanup, or liability—the investment is trivial by comparison.

Q8: What is the typical warranty for an industrial-grade zero-leakage fan?

A: Reputable manufacturers (e.g., fan) offer 18-24 months on seals and 3-5 years on housing structural integrity. Extended warranties are available with maintenance contracts.

Q9: Can I use a zero-leakage fan outdoors in freezing conditions?

A: Yes, but cold-weather packages (heaters on seal buffer gas, insulated housing, low-temperature elastomers) are mandatory. Specify the lowest ambient temperature during selection.

Q10: How do I know if my application truly requires zero-leakage design?

A: Evaluate: Is the gas toxic? Is it a VOC with environmental limits? Is the product sensitive to oxygen/moisture? Do local regulations (e.g., EPA's NSPS, EU Seveso III) impose containment? If any answer is "yes," zero-leakage is required.

How to Select the Right Fan for Your Hazardous Location

Follow this checklist:

1. Hazard Classification – Determine zone/division, gas group, temperature class.
2. Process Data – Flow (CFM/m³/h), pressure (static/inlet), gas composition, temperature, particulate load.
3. Leakage Tolerance – Define maximum permissible leakage (e.g., 0.05%).
4. Certification Requirement – ATEX, IECEx, or NEC?
5. Seal Strategy – Choose mechanical seal with Plan 01/02/53A, or magnetic seal with buffer gas.
6. Material Compatibility – Check NACE MR0175 for sour gas, chemical resistance per ASME B31.3.
7. Motor Isolation – External motor with belt drive or vertical inline with separation diaphragm.
8. Monitoring & Controls – Vibration sensors, temperature probes, seal leak detectors.

Example supplier resource: The fan catalog from fan offers pre-engineered hazardous duty models with full ATEX/IECEx certification and zero-leak warranty.

Conclusion: Why Zero-Leakage is Non-Negotiable

In hazardous environments, "good enough" is a dangerous compromise. An industrial-grade protection zero-leakage centrifugal fan is not a luxury—it is the most fundamental safety barrier between your process and the outside world. From preventing toxic exposure to ensuring explosion containment, these fans embody the principle that safety is engineered, not assumed.

With proper selection, certification, and maintenance, these fans deliver decades of reliable, leakage-free operation. In an increasingly regulated world, investing in a true zero-leakage fan from a certified manufacturer like fan is the only path to compliance, safety, and peace of mind.

Always choose certified, always verify the seal strategy, and never compromise on leakage where lives are on the line.

For detailed specifications and custom design assistance, consult your local hazardous location equipment specialist or visit the fan resource center.
