Here is a technical breakdown and selection guidance for 5 kW, 55 kW, 75 kW, and 200 kW centrifugal flow fans suitable for boiler systems, focusing on the requirement of airflow efficiency ≥ 50%.
Core Requirement: Efficiency ≥ 50%
For a boiler system fan, achieving ≥ 50% static or total efficiency is a baseline expectation for modern systems. However, for the power ranges you listed, industry standards typically aim higher:
- 5 kW (Small Fan): Efficiency of 50-65% is common (cheaper impellers).
- 55 kW - 200 kW (Industrial Fans): Efficiency should be 65% - 85% . If you only require ≥50%, this is easily met with any properly designed backward-curved or airfoil blade fan. Well-designed fans in this range rarely fall below 55%.
Important Note: If your boiler system has heavy dust or particulate (e.g., biomass, coal), be aware that high-efficiency blades (airfoil) clog easily. For dirty boilers, a robust backward-inclined blade with efficiency ~55-60% is often better than a clogged 80% efficient fan.

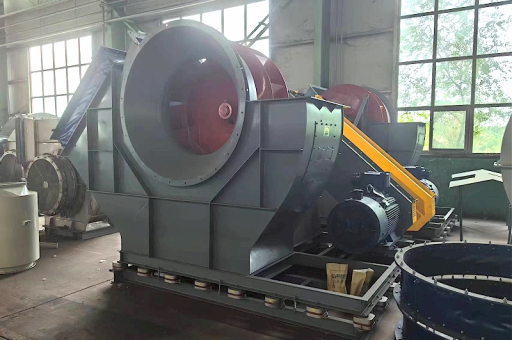

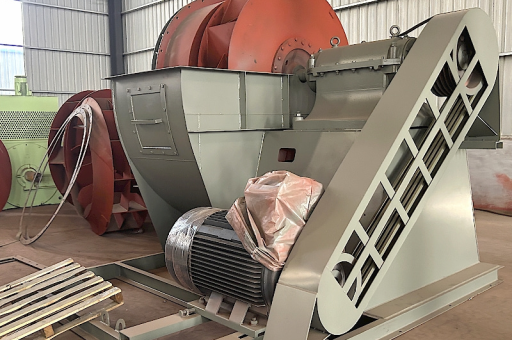

Fan Type Recommendation: Centrifugal Flow
For boiler applications (combustion air, induced draft, forced draft), the following centrifugal fan types are most suitable:
| Power | Recommended Fan Type | Blade Style | Typical Efficiency | Best Application |
|---|---|---|---|---|
| 5 kW | Forward Curved (Squirrel Cage) | Forward Curved | 50-60% | Small domestic / light commercial burners. High airflow at low pressure. |
| 55 kW | Backward Inclined (BI) | Backward Curved / Inclined | 65-75% | Medium industrial boilers, forced draft (FD) fans. Stable, efficient. |
| 75 kW | Backward Curved Airfoil (BCA) | Airfoil | 75-85% | High-efficiency boilers, clean gas streams. Highest efficiency in range. |
| 200 kW | Airfoil or Radial Tip | Airfoil or Radial | 70-85% | Large industrial boilers, induced draft (ID) or FD. Needs robust bearings/ shaft. |
Verdict: For a 5kW unit, you will likely use a Forward Curved fan. For 55kW, 75kW, 200kW, you should use Backward Curved / Airfoil fans to guarantee efficiency over 50% and handle boiler pressure drops.
Expected Airflow & Pressure Ranges (Typical for Boilers)
These are approximate values depending on boiler system pressure (duct resistance). Efficiency ≥ 50% assumed.
| Motor Power | Approx. Airflow (CFM) | Approx. Airflow (m³/h) | Typical Static Pressure (inches w.g.) | Typical Static Pressure (Pa) |
|---|---|---|---|---|
| 5 kW | 1,500 – 3,000 | 2,500 – 5,000 | 2 – 6 | 500 – 1,500 |
| 55 kW | 10,000 – 20,000 | 17,000 – 34,000 | 6 – 15 | 1,500 – 3,700 |
| 75 kW | 15,000 – 30,000 | 25,000 – 50,000 | 8 – 20 | 2,000 – 5,000 |
| 200 kW | 40,000 – 80,000 | 68,000 – 136,000 | 15 – 40 | 3,700 – 10,000 |
Key Point: The actual airflow will be dictated by the boiler's burner demand (for combustion air) or flue gas resistance (for ID fans). A fan running at 5.5kW with a 50% efficiency will move less air than a 5.5kW fan at 80% efficiency.
How to Ensure ≥50% Efficiency in Boiler Systems
To guarantee your centrifugal fan meets the efficiency mark:
- Select Backward Curved Blades (for 55kW+ models). Forward curved blades (5.5kW) naturally have lower efficiency (50-60%), so they barely meet the requirement.
- Use Variable Frequency Drives (VFD). Boilers rarely run at 100% load. Using dampers to reduce airflow kills efficiency. A VFD maintains fan efficiency >50% even at part load.
- Avoid Over-sizing. A fan running at 50% capacity with a VFD is efficient. A fan running at 50% capacity with an inlet damper may drop to 30% efficiency.
- Duct Design: Smooth inlet ducting (no elbows directly at the inlet) for at least 1 duct diameter is critical. Poor inlet conditions can drop a 75% efficient fan to 50% or below.
Summary Table for Selection
| Power | Blade Type | Efficiency Target | Boiler Use Case |
|---|---|---|---|
| 5 kW | Forward Curved | 50-55% | Small package boiler, combustion air blower |
| 55 kW | Backward Inclined | 65-75% | Medium boiler FD fan |
| 75 kW | Backward Curved / Airfoil | 70-80% | High-efficiency boiler FD fan |
| 200 kW | Airfoil or Radial | 72-85% | Large industrial boiler ID/FD |
Final Recommendation
- For 5 kW: Any standard centrifugal fan will meet the 50% efficiency requirement.
- For 55, 75, 200 kW: Do not accept forward-curved blades. Insist on Backward Curved (BC) or Airfoil (AF) blades. This guarantees you will operate well above the 50% threshold (expect 65-80%) and will save significant energy costs over the fan's lifetime.
If you provide the exact static pressure (Pa or in.w.g.) and airflow (m³/h) required for your boiler, I can give you a specific fan model recommendation.
