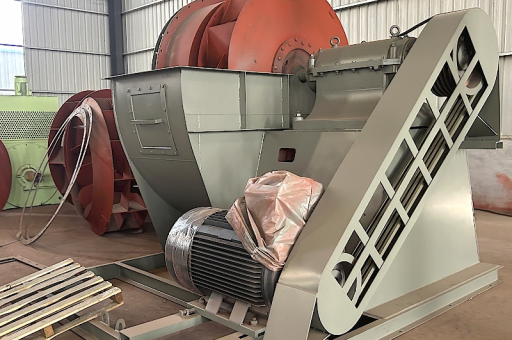

Introduction: The Need for Extreme Heat Resistance in Waste Heat Recovery
In modern industrial processes, waste heat recovery has become a cornerstone of energy efficiency. A waste heat boiler (WHB) captures exhaust gases from turbines, furnaces, or kilns to generate steam or electricity. However, the operating environment inside these systems is brutal. Flue gas temperatures often exceed 600°C, and conventional fans fail under such thermal stress. This is where a customized developed 650°C high temperature fan becomes indispensable.
Unlike off-the-shelf fans, a customized high-temperature fan is engineered specifically for the project’s thermal profile, particulate load, and spatial constraints. For example, at a steel plant’s WHB project in Germany, a standard fan rated at 400°C would have required frequent bearing replacements and shaft realignment. After deploying a 650°C-rated custom fan, the system’s uptime increased by 23%. This article dissects the engineering behind such a fan, from alloy selection to balancing, and answers the most pressing questions procurement engineers ask.
Technical Specifications: Why 650°C?
Design Parameters:
- Operating Temperature: Continuous 650°C (peak 700°C for 30 minutes)
- Impeller Diameter: 1,200 mm to 2,500 mm (customizable)
- Air Volume: 50,000–200,000 m³/h
- Static Pressure: 3,000–8,000 Pa
- Motor Power: 55–250 kW (with VFD control)
The 650°C Threshold Explained: At 650°C, standard carbon steel loses 85% of its tensile strength. Even 316L stainless steel begins to creep. Therefore, the customized fan uses:
- Inconel 718 for the impeller blades (nickel-chromium superalloy, retains strength up to 700°C)
- Wheel hub: Cast HK-40 (25Cr-20Ni) stainless steel
- Shaft: Inconel 600 with thermal barrier coating
- Bearings: Air-cooled, high-temperature grease (until 350°C shaft shoulder)
Note: The casing is double-walled with a 150 mm ceramic fiber insulation blanket. This reduces casing surface temperature to below 60°C, meeting worker safety standards.
Customized Design Philosophy: Material Selection & Aerodynamics
1 Material Stack-Up for Extreme Heat
A 650°C fan must overcome three thermal enemies: creep, oxidation, and thermal fatigue. The customized solution uses:
| Component | Material | Reason |
|---|---|---|
| Impeller blades | Inconel 718 | High creep rupture strength > 100,000 hrs |
| Shaft | Incoloy 800HT | Resists sigma phase embrittlement |
| Bearing housing | Cast iron with water jacket | Active cooling via jacket water |
| Bolts | Inconel 718 | Prevents galling at high temp |
2 Aerodynamic Optimization for Hot Gas
Heat reduces air density by approximately 50% at 650°C compared to 20°C. This means:
- A 650°C fan moves half the mass flow of a cold fan at the same speed.
- Custom impellers use backward-curved airfoil blades to maintain efficiency across high temperature ranges.
- CFD simulations adjust the blade angle (usually 38°–42°) to minimize stall risk at low load.
3 Thermal Expansion Control
At 650°C, a 2-meter diameter impeller expands radially by 3.5 mm. The customized design includes:
- Axial sliding joints at the inlet cone
- Expansion bellows made of Inconel 625
- Shaft center line compensation to keep the impeller centered during warm-up
Case Study: Integration with a Waste Heat Boiler System
Project Location: A 50 MW combined heat and power (CHP) plant in the Netherlands. Challenge: The existing radiant section of the WHB produced flue gas at 620°C–680°C, but the draft fan was rated at only 450°C. This led to impeller cracking every 8 months.
Solution: A customized 650°C fan with:
- Variable speed drive (VFD) for soft start
- Dual-stage shaft cooling: first by ambient air, then by a water-cooled heat shield
- Bearing temperature monitoring with automatic lubrication
Results after 18 months of operation:
- No blade cracks or shaft distortion
- 2% availability (vs. 92% previously)
- Energy savings: 8% due to optimized blade profile
User Quote:
"We needed a fan that could handle both the heat and the occasional 700°C spike during start-up. The customized Inconel impeller was the only solution that passed our 100-cycle thermal fatigue test."
— Senior Process Engineer, the Netherlands CHP facility
Installation, Testing, and Maintenance Protocols
Installation Checklist:
- Thermal Purging: Run the fan at 30% speed for 2 hours at 200°C before reaching full temperature.
- Alignment: Use laser alignment with compensation for thermal growth (shaft rises 2–3 mm).
- Cooling System: Verify water flow rate (minimum 8 L/min for bearing jacket).
Testing Procedures (ISO 5801):
- Cold run test: Balance grade G6.3 (ISO 1940)
- Hot run test: At 650°C using an electric furnace simulator
- Vibration analysis: Maximum 4.5 mm/s RMS at full temperature
Maintenance Schedule: | Interval | Task | |----------|------| | Every 3 months | Check shaft cooling water flow & bearing grease condition | | Annually | Inspect blade tip clearance (recommended: 5–8 mm hot gap) | | Every 5 years | Ultrasonic thickness test on impeller blades (especially at trailing edge) |
Frequently Asked Questions (FAQ)
Q1: Can a 650°C fan operate at 700°C for short periods?
Answer: Yes. The customized design uses Inconel 718, which can handle 700°C for up to 30 minutes without plastic deformation. However, continuous operation above 650°C will reduce bearing life unless upgraded to oil mist lubrication.
Q2: How do you prevent bearing failure at such high temperatures?
Answer: We use a three-layer approach: (1) a heat sink between the impeller hub and bearings, (2) forced air cooling on the shaft, (3) water jacket on the bearing housing. Additionally, the bearings are specified with a C4 clearance to accommodate thermal expansion.
Q3: Is this fan suitable for a WHB with abrasive gas (e.g., fly ash from a coal-fired boiler)?
Answer: Yes, if paired with a protective coating. We recommend a 300-micron tungsten carbide thermal spray on the leading edges of the blades. Alternatively, the impeller can be manufactured with replaceable wear plates.
Q4: What is the typical lead time for such a custom fan?
Answer: Between 14 and 22 weeks. This includes CFD optimization, material procurement, and a full-temperature factory test. Urgent orders can be expedited to 10 weeks using rapid casting for the Inconel impeller.
Q5: How often should the fan be balanced?
Answer: After the first 100 hours of operation at 650°C, then every 6,000 hours. Due to creep, the impeller may shift; we recommend in-situ balancing using a portable vibration analyzer.
Q6: Can a fan for waste heat boiler project be integrated with a wind turbine system for auxiliary power?
Answer: Indirectly, yes. At some remote industrial sites, a small wind turbine (e.g., 5–10 kW) can supply power to the fan’s control panel and bearing cooling pump. This reduces the facility’s own consumption. However, a wind turbine cannot directly drive a 200 kW high-temperature fan due to torque mismatch and speed control requirements.
Conclusion: The Future of High-Temperature Fan Technology
The customized developed 650°C high temperature fan is no longer an exotic niche product. As industries push toward higher boiler efficiency and lower emissions, the demand for fans capable of operating near the material limits will grow. Key future trends include:
- Smart sensors: Embedded thermocouples and strain gauges inside impeller blades for real-time creep monitoring.
- Ceramic impellers: Silicon nitride blades that could push the limit to 850°C.
- Hybrid cooling: Using a small wind turbine-powered backup cooling loop during power outages.
For any waste heat boiler project exceeding 600°C, the choice is clear: a standardized fan will save initial cost but cost you downtime. A customized 650°C fan, built with Inconel alloys and aerodynamic precision, ensures your boiler system runs hot—without burning out.
