This article's table of contents introduction:
- Key Applications in a Boiler System
- Critical Specifications for High-Temperature Boiler Fans
- Why "Adjustable Speed" (VFD) is Critical for Boilers
- Selection Considerations (Crucial for Longevity)
- Example of a Typical Specification (for RFQ/Inquiry)
- Where to Source (Manufacturer Types)
- Critical Warning: Installation

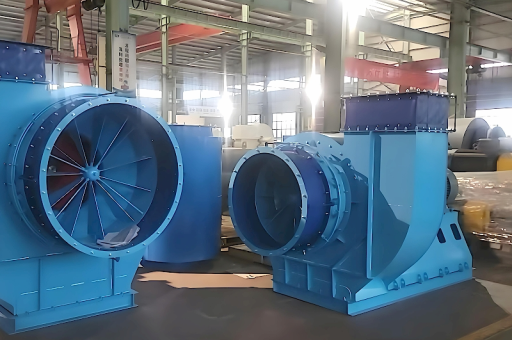

Based on your request for an Industrial Centrifugal Fan Blower with Adjustable Speed for a High Temperature Boiler System, you are likely looking for a Forced Draft (FD) Fan or Induced Draft (ID) Fan depending on where in the boiler system it is installed.
Here is a detailed breakdown of the specifications, design features, and considerations for selecting this critical equipment.
Key Applications in a Boiler System
- Forced Draft (FD) Fan: Pushes ambient air into the boiler furnace. Requires less temperature resistance (standard 20°C - 60°C).
- Induced Draft (ID) Fan: Pulls hot flue gases out of the boiler and through the chimney. This requires high-temperature construction (200°C - 400°C+).
- Primary Air (PA) Fan: Supplies pre-heated air to carry pulverized coal in coal-fired boilers.
Given your specification of "High Temperature," you likely need an ID Fan or a PA Fan handling hot gases.
Critical Specifications for High-Temperature Boiler Fans
| Specification | Requirement & Details |
|---|---|
| Type | Backward Curved (BC) or Airfoil (AF) Blades (High efficiency, non-overloading power curve). For dirty gases: Radial or Radial Tip blades (more robust, easier to clean). |
| Impeller Design | High-Temperature Alloy Steel (e.g., Corten, 16Mo3, or Stainless Steel 310S for >400°C). Shrouded (covered) for structural integrity when hot. |
| Housing/Scroll | Heavy-gauge steel with internal insulation or water-cooled bearings/seals for ID fans. Expansion joints on inlet/outlet. |
| Bearing System | External Pillow Block Bearings with cooling discs or water jackets (to prevent heat transfer from shaft). Grease or oil mist lubrication. |
| Shaft Seal | Labyrinth seals or carbon ring seals (to prevent hot gas leakage and ingress of cold air). |
| Speed Control | VFD (Variable Frequency Drive) (Most energy-efficient, 20% to 100% speed range). OR: Hydraulic Coupling (For very large fans >1 MW, robust in harsh environments). |
| Balance | ISO 1940 G2.5 or better (Critical for high-speed operation to avoid vibration). |
| Temp. Range | Standard: 0°C to 150°C. High-Temp Design: 150°C to 450°C (requires expansion joints, water-cooled bearings). Ultra-High: >450°C (requires exotic alloys and shaft cooling). |
Why "Adjustable Speed" (VFD) is Critical for Boilers
- Energy Savings: Fans consume power proportional to the cube of the speed. Reducing speed by 20% reduces power consumption by ~50%.
- Modulation: Boilers require precise air-to-fuel ratios. A VFD matches fan output exactly to the boiler's load demand (modulation).
- Soft Start: Eliminates mechanical stress on belts, bearings, and motor during startup.
- Reduced Wear: Avoids "surge" conditions common with damper control.
Selection Considerations (Crucial for Longevity)
| Factor | Why it matters |
|---|---|
| Gas Temperature | If the gas is >120°C, standard components fail. You will need heat slingers on the shaft and cooling fans on the motor (separate from the main fan). |
| Gas Composition | For flue gases containing sulfur or chlorine, the impeller must be made of Corten steel or have a ceramic coating to resist acid corrosion (especially at dew point ~80-120°C). |
| Impeller Connection | For high temp, use a Taper Lock bush (not keyway only) to allow for thermal expansion without loosening. |
| Ductwork Support | The fan must be installed with expansion joints (bellows) on inlet and outlet to absorb thermal expansion of the ductwork. |
Example of a Typical Specification (for RFQ/Inquiry)
Item: Industrial High-Temperature Centrifugal Fan with VFD Application: Induced Draft (ID) for 10 TPH Coal/Biomass Boiler Flow Rate: 40,000 m³/hr Static Pressure: 3500 Pa Gas Temperature: 180°C (Max 220°C) Impeller: Backward Curved, 16Mo3 steel, fully shrouded Bearings: SKF/FAG, external, with water cooling jackets Motor: 55 kW, 4-pole, IE3, with separate cooling fan Drive: VFD (Siemens/Danfoss/ABB) with harmonic filter Accessories: Inlet box, expansion joint, vibration sensors (PH probe), drain valve. Balance: ISO 1940 G2.5
Where to Source (Manufacturer Types)
- Industrial High-End: Howden, New York Blower, TLT-Babcock (Full boiler island systems).
- Mid-Range International: firms like Cincinnati Fan, Chicago Blower, or European brands like Dospel (Industrial), Systemair (Large HVAC).
- Cost-Effective (Asian Supply): Companies from China (e.g., NC Fan, Yilijin, Sanyuan) or India (e.g., Flowmore, Dynamic Fan) offering custom high-temp designs.
Critical Warning: Installation
- Never install VFD directly in hot air stream (unless specifically rated for high ambient temps).
- Base Plate: Must be grouted on a heavy concrete foundation to absorb vibration and prevent misalignment due to heat expansion.
- Ductwork: Must have a butterfly damper on the outlet for safe start/stop before the VFD takes over.
Conclusion: You need a Backward Curved (BC) or Airfoil (AF) Centrifugal Fan with a VFD controller, made from high-temperature alloy steel with water-cooled bearings. If the gas is dirty or contains particulates, choose Radial Tip (RT) blades to avoid material buildup that causes imbalance.
